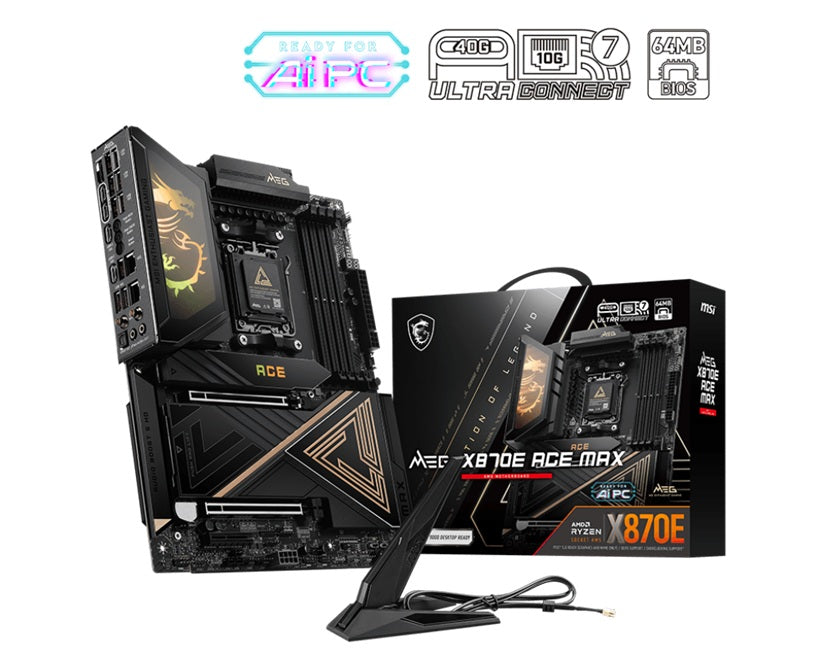

MSI X870E ACE MAX AM5 Motherboard
MSI X870E ACE MAX AM5 Motherboard
SKU:MBM-X870EACEMAX
The MSI X870E ACE MAX is a premium AM5 motherboard designed for high-performance Ryzen 7000–9000 systems. Featuring PCIe 5.0, dual M.2 Gen5 slots, Wi-Fi 7, dual 10G/5G LAN, and USB4, it delivers extreme overclocking capability and connectivity for enthusiast builders and professionals.
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | MSI |
|---|---|
| Category | Motherboards |
| SKU | MBM-X870EACEMAX |
| Availability | Out of Stock |
Overview
- The MSI X870E ACE MAX is a flagship AM5 motherboard that brings cutting-edge connectivity and performance to Ryzen 7000–9000 series builds. Built on the AMD X870E chipset, it delivers the latest standards in PCIe 5.0, Wi-Fi 7, and multi-gigabit networking—essential for professionals and enthusiasts pushing system performance limits.
With dual M.2 Gen5 slots, dual 10G/5G LAN ports, USB4 with 8K display support, and extensive USB expansion, the ACE MAX is engineered for demanding workloads. Support for DDR5-8400+ OC memory ensures maximum bandwidth for CPU-intensive applications and gaming at the highest settings.
The motherboard includes Audio Boost 5 HD for premium audio quality and a 36-month warranty, reflecting MSI's commitment to reliability and customer support.
Specifications
| Model Name | MEG X870E ACE MAX |
|---|---|
| Chipset | AMD X870E |
| CPU Socket | AMD Socket AM5 |
| CPU Support | AMD Ryzen 9000, 8000, 7000 Series |
| Memory Support | 4 DIMMs, Dual Channel DDR5 up to 8400+MT/s (OC) |
| PCIe Slot 1 | 1x PCIe 5.0 x16 |
| PCIe Slot 2 | 1x PCIe 5.0 x8 |
| PCIe Slot 3 | 1x PCIe 5.0 x4 |
| M.2 Gen5 Slots | 2x M.2 Gen5 x4 128Gbps |
| M.2 Gen4 Slots | 3x M.2 Gen4 x4 64Gbps |
| SATA Ports | 4x SATA 6Gbps |
| USB 40Gbps Ports | 2x USB Type-C |
| USB 20Gbps Ports | 1x USB Type-C |
| USB 10Gbps Ports | 9x USB Type-A, 2x USB Type-C |
| USB 5Gbps Ports | 4x USB Type-A |
| USB 2.0 Ports | 4x USB 2.0 |
| LAN | 1x Marvell 10Gbps, 1x Realtek 5Gbps |
| Wi-Fi | Wi-Fi 7 |
| Bluetooth | Bluetooth 5.4 |
| Audio | 8-Channel (7.1) with Audio Boost 5 HD |
| Display Output | 2x USB4 ports support 8K@60Hz HDMI 2.1 FRL |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
What Ryzen processors does the MSI X870E ACE MAX support?
The X870E ACE MAX supports AMD Ryzen 7000, 8000, and 9000 Series processors on the AM5 socket. It is fully compatible with the latest Ryzen 9000 chips.
Does this motherboard support PCIe 5.0?
Yes. The motherboard features three PCIe 5.0 slots (x16, x8, x4) and two dedicated M.2 Gen5 slots for maximum NVMe speed and performance.
What is the maximum RAM capacity?
The X870E ACE MAX supports up to 4 DIMM slots of DDR5 memory. It is rated for DDR5-8400+MT/s (OC) speeds.
Does it have built-in Wi-Fi?
Yes. The motherboard includes Wi-Fi 7 and Bluetooth 5.4 for wireless connectivity.
How many storage drives can I connect?
You can connect five NVMe drives (2x M.2 Gen5 and 3x M.2 Gen4) plus four SATA 6Gbps drives for traditional storage.
What networking options are available?
The motherboard includes dual LAN: 1x Marvell 10Gbps and 1x Realtek 5Gbps, providing flexible networking for high-speed connections.
What warranty is provided?
The X870E ACE MAX comes with a 36-month (3-year) warranty covering manufacturing defects.
Can I output video through USB4?
Yes. The two USB4 ports support USB Type-C display output and can drive displays at up to 8K@60Hz (HDMI 2.1 FRL) when used with processor graphics.
