Brateck Standard Motorized TV Cart 55–100 inch
Brateck Standard Motorized TV Cart 55–100 inch
SKU:MABT-TTL14-68FW-BLK

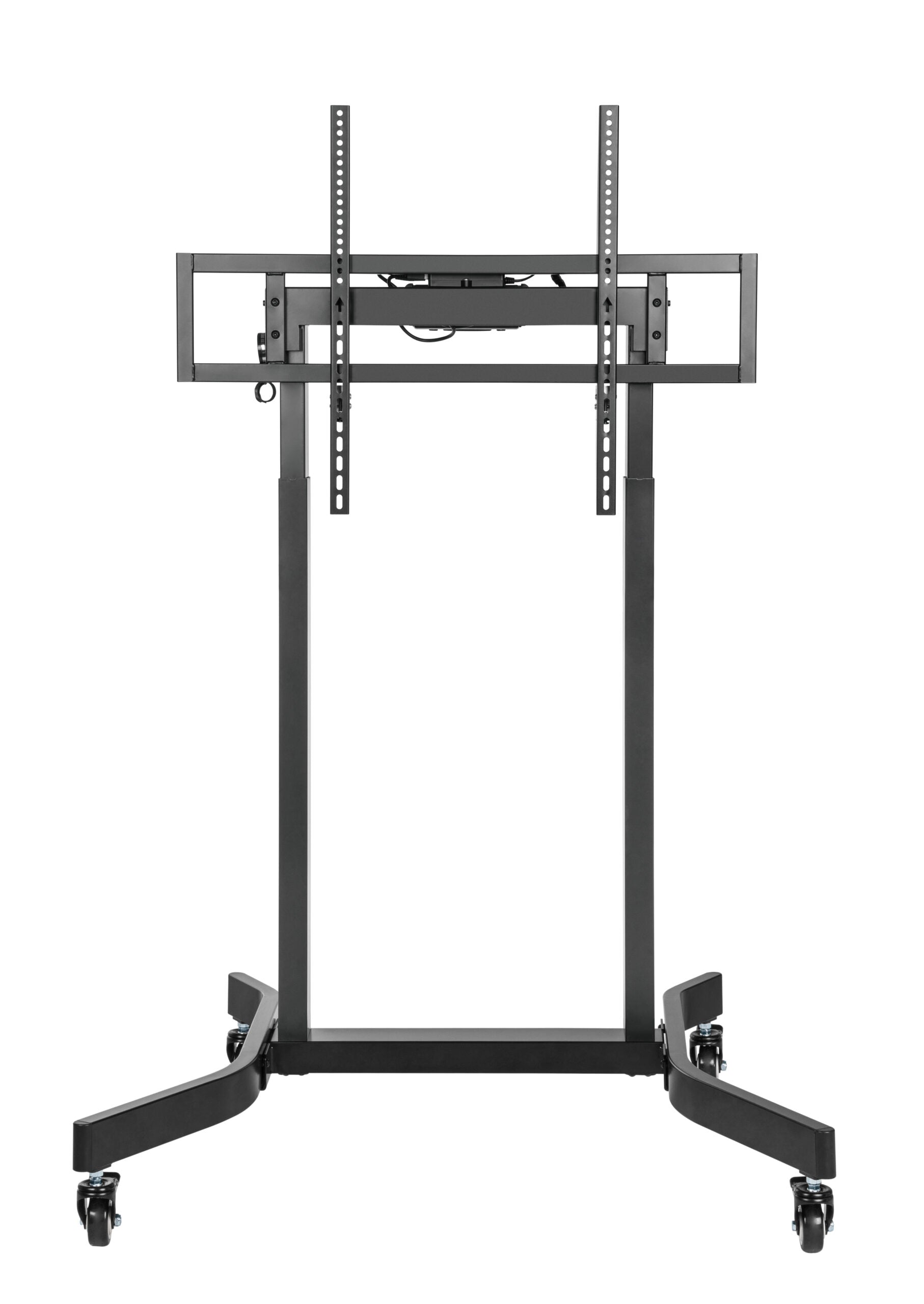

The Brateck TTL14-68FW-BLK is a motorised TV cart designed for screens 55 to 100 inches. Featuring multiple motors, height adjustment up to 1600mm, and a 120kg weight capacity, it delivers flexible display positioning for meeting rooms and presentations.
Couldn't load pickup availability
- See our return policy
- 60 months Manufacturer Warranty
Product Information
| Brand | Brateck |
|---|---|
| Category | Monitor Arms (VESA) |
| SKU | MABT-TTL14-68FW-BLK |
| Availability | In Stock |
Overview
- The Brateck Standard Motorised TV Cart is purpose-built for organisations requiring mobile, adjustable large-screen displays. With support for screens up to 100 inches and a robust 120kg weight capacity, it combines stability with flexibility, making it ideal for dynamic corporate environments.
Multiple motors provide reliable lifting power and consistent height adjustment from 1100mm to 1600mm, allowing teams to optimise viewing comfort without manual intervention. The remote control enables convenient operation, whilst locking casters ensure safe positioning once deployed.
Heavy-duty steel and aluminium construction with powder-coated finish delivers durability in high-traffic settings. Comprehensive VESA compatibility supports a wide range of modern displays, and integrated cable management keeps installations clean and professional.
Specifications
| Product Type | TV Cart |
|---|---|
| Rank | Standard |
| Screen Size Compatibility | 55–100 inches |
| TV Weight Capacity | 120kg (264lbs) |
| VESA Patterns Supported | 200x200, 300x200, 400x200, 300x300, 400x300, 600x200, 350x350, 400x400, 600x400, 800x400, 800x600 |
| Height Adjustment Range | 1100–1600mm (43.3–63 inches) |
| Colour | Matte Black |
| Materials | Steel, aluminium, plastic |
| Metal Bracket Thickness | 2mm cold-rolled sheet |
| Surface Finish | Powder coating |
| Base Type | Locking casters |
| Overall Dimensions | 1075 x 970 x 1425–1925mm (42.3 x 38.2 x 56.1–75.8 inches) |
| Main Column | 86 x 46 x 1.5t x 890mm |
| Extension Column | 80 x 40 x 1.5t x 870mm |
| Number of Screens | 1 |
| Cable Management | Yes |
| Slope Testing | 10-degree approved |
| Certifications | AS/NZS, CE, FCC, RoHS |
| Warranty | 60 months |
Key Features
Ideal For
FAQs
What size screens does the Brateck TV cart support?
The cart supports screens from 55 to 100 inches with a maximum weight capacity of 120kg, provided the VESA pattern matches one of the supported configurations (200x200 through 800x600).
How much weight can this TV cart safely hold?
The cart has a tested weight capacity of 120kg (264lbs). It has been strength tested and approved for this load.
What is the height adjustment range?
The cart adjusts from 1100mm to 1600mm in height (approximately 43 to 63 inches), allowing flexible positioning for different viewing preferences and room layouts.
Can I control the height adjustment remotely?
Yes, a remote control is included with the cart for convenient height adjustment and movement control.
Are the casters lockable?
Yes, the heavy-duty casters feature a locking mechanism, allowing you to move the cart freely or secure it in position.
What certifications does this product have?
The cart is certified to AS/NZS (Australian/New Zealand standards), CE, FCC, and RoHS requirements.
Is cable management included?
Yes, the cart includes an integrated cable management system to keep power and signal cables organised and professional-looking.
What is the warranty period?
The Brateck motorised TV cart comes with a 60-month (5-year) warranty.
