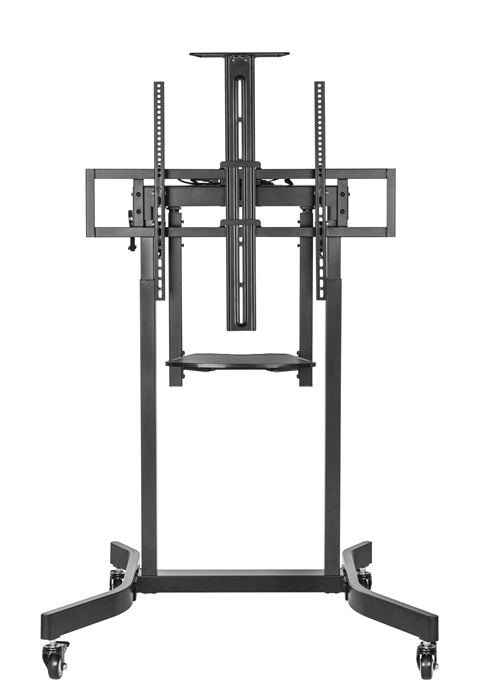

Brateck Deluxe Motorized TV Cart 55-100 inch up to 120kg
Brateck Deluxe Motorized TV Cart 55-100 inch up to 120kg
SKU:MABT-TTL14-68TW-BLK
The Brateck Deluxe Motorized TV Cart is a heavy-duty mobile display solution designed for conference rooms, boardrooms, and presentation spaces. Featuring remote-controlled height adjustment, manual tilt functionality, and integrated equipment and camera shelves, it delivers flexible viewing angles and storage for businesses requiring mobile large-screen displays.
Couldn't load pickup availability
- See our return policy
- 60 months Manufacturer Warranty
Product Information
| Brand | Brateck |
|---|---|
| Category | Monitor Arms (VESA) |
| SKU | MABT-TTL14-68TW-BLK |
| Availability | In Stock |
Overview
- The Brateck Deluxe Motorized TV Cart is a professional-grade mobile display platform engineered for heavy-duty use in dynamic business environments. Built with reinforced steel construction and tested to support up to 120kg, it accommodates large screens from 55 to 100 inches whilst maintaining exceptional stability on locked casters.
The motorized height adjustment system, controlled by remote, delivers smooth positioning from 1100mm to 1600mm, eliminating manual strain and enabling quick reconfiguration during meetings. The manual tilt mechanism (±5° to 10°) allows presenters to adjust viewing angles and minimise glare without repositioning the entire cart.
Integrated shelving designed for both equipment storage (5kg capacity) and video camera mounting ensures a consolidated solution for modern hybrid workplaces. Heavy-duty casters with locking mechanisms provide secure positioning whilst enabling rapid relocation between spaces. Cable management channels keep connections organised and hidden, supporting a professional appearance.
Specifications
| Screen Size Compatibility | 55–100 inches |
|---|---|
| TV Weight Capacity | 120kg (264lbs) |
| VESA Mount Patterns | 200×200, 300×200, 400×200, 300×300, 400×300, 600×200, 350×350, 400×400, 600×400, 800×400, 800×600 |
| Height Adjustment Range | 1100–1600mm (43.3–63 inches) |
| Tilt Range | +5° to −10° |
| Material | Aluminium, steel, plastic |
| Metal Thickness | Bracket arm 2mm cold-rolled steel |
| Surface Finish | Powder coating |
| Colour | Matte black |
| Dimensions | 1075×970×1425–2320mm (42.3×38.2×56.9–91.3 inches) |
| Main Column | 86×46×1.5mm thickness, 890mm length |
| Extension Column | 80×40×1.5mm thickness, 870mm length |
| Equipment Shelf | Height adjustable, 5kg weight capacity |
| Camera Rack | Height adjustable, 5kg weight capacity |
| Base Type | Heavy-duty casters with locking mechanism |
| Cable Management | Yes |
| Slope Test Rating | 10° approved |
| Load Testing | 4× certified |
| Control Method | Remote control included |
| Certifications | AS/NZS, CE, FCC, RoHS |
| Warranty | 60 months |
Key Features
Ideal For
FAQs
What TV sizes does the Brateck motorized cart support?
The cart accommodates TVs from 55 to 100 inches with a weight capacity of 120kg. It is compatible with standard VESA mounting patterns including 200×200, 300×300, 400×400, 600×400, and 800×600mm.
How is the height adjustment controlled?
Height adjustment is motorized and controlled via remote control, allowing smooth positioning between 1100mm and 1600mm. This eliminates manual effort and enables quick repositioning during presentations.
Can the cart be locked in place when stationary?
Yes. The cart features heavy-duty casters with a locking mechanism that secures the cart when stationary and allows smooth movement when unlocked.
What additional storage does the cart provide?
The cart includes two height-adjustable shelves: an equipment shelf and a camera rack, each with 5kg weight capacity. These are ideal for media players, audio equipment, microphones, and video conferencing cameras.
Can viewing angles be adjusted?
Yes. The manual tilt mechanism allows adjustment of ±5° to 10°, enabling presenters to optimise viewing angles and reduce screen glare without moving the entire cart.
Is cable management integrated?
Yes. The cart includes integrated cable management channels to keep power and AV cables organised and hidden for a professional appearance.
What certifications and safety testing does this cart have?
The cart is certified to AS/NZS, CE, FCC, and RoHS standards. It has passed 4× load testing and 10° slope testing to ensure stability and safety.
