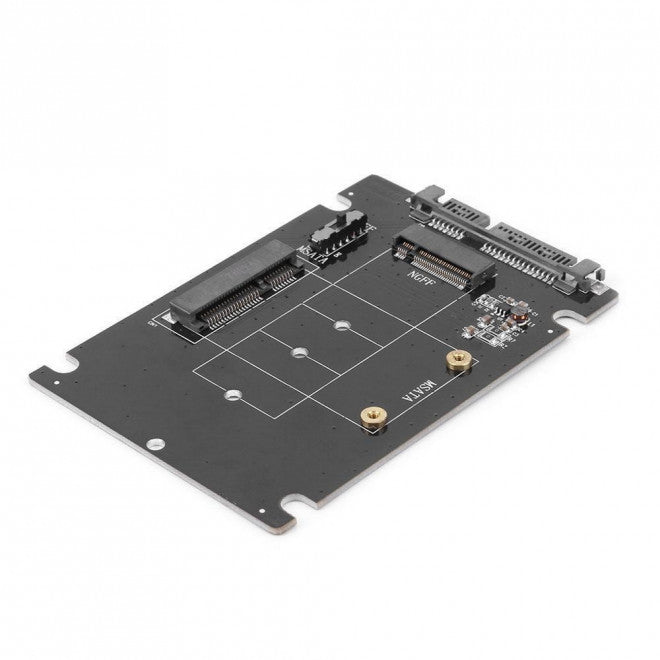

Simplecom SA207 mSATA + M.2 to SATA Adapter
Simplecom SA207 mSATA + M.2 to SATA Adapter
SKU:HXSI-SA207
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | Simplecom |
|---|---|
| Category | Hard Drives - External |
| SKU | HXSI-SA207 |
| Availability | In Stock |
Overview
- The Simplecom SA207 is a practical 2-in-1 adapter that bridges the gap between older mSATA technology and modern M.2 SATA SSDs, allowing both to interface with standard SATA ports. This adapter is essential for data centres, IT departments, and businesses managing mixed storage ecosystems where legacy and current hardware need to coexist.
With an onboard switch for mode selection and plug-and-play operation, the SA207 requires no drivers or configuration. Simply insert your mSATA or M.2 SATA SSD, flip the selector, and connect via SATA. The adapter also works seamlessly with external SATA enclosures, making it ideal for portable backup solutions.
Compatibility is straightforward: the adapter supports M.2 SSDs with B Key or B+M Key connectors in all standard form factors (2230 through 2280), as well as full-size mSATA modules. Important to note: this adapter is designed for SATA-protocol SSDs only and will not work with NVMe or PCIe M.2 drives.
Specifications
| Brand | Simplecom |
|---|---|
| Model | SA207 |
| Product Type | mSATA + M.2 to SATA Combo Adapter |
| Interface | SATA 3 |
| Adapter Type | 2-in-1 (mSATA and M.2) |
| M.2 Form Factors Supported | 2230, 2242, 2260, 2280 (B Key or B+M Key) |
| mSATA Form Factor Supported | Full size mSATA (50.95 x 30mm) |
| Circuit Board Dimensions | 97 x 65 x 5mm |
| Switching | Onboard mode selector (mSATA/M.2) |
| Driver Required | No |
| External Enclosure Compatible | Yes |
| Warranty | 12 months |
| Package Contents | 1x Adapter, 1x Screwdriver, Screws with washers |
| Important Compatibility Note | SATA protocol only. Not compatible with NVMe PCIe M.2 SSDs or M Key Only modules |
Key Features
Ideal For
FAQs
Can I use this adapter with NVMe M.2 SSDs?
No. The SA207 is designed for SATA-protocol SSDs only. It will not work with NVMe or PCIe M.2 drives, or M Key-only modules. It supports only B Key or B+M Key SATA SSDs.
Do I need drivers to use this adapter?
No. The SA207 is a plug-and-play adapter that requires no driver installation. Simply insert your SSD, select the correct mode with the onboard switch, and connect via SATA.
What M.2 form factors does the SA207 support?
The adapter supports M.2 2230, 2242, 2260, and 2280 form factors with SATA protocol (B Key or B+M Key connectors). It also supports full-size mSATA SSDs.
Can I use the SA207 with an external SATA enclosure?
Yes. The adapter works seamlessly with external SATA enclosures, making it ideal for portable backup and data migration solutions.
How do I switch between mSATA and M.2 modes?
The SA207 features an onboard switch that allows you to select between mSATA and M.2 modes. Switch settings before powering on for best results.
What's included in the box?
The package includes the adapter, a screwdriver, and screws with washers for secure mounting in external enclosures.
Is this adapter backwards compatible with older systems?
Yes. Since the adapter converts to standard SATA 3 interface, it works with any system that has a SATA port, including older desktops and laptops.
