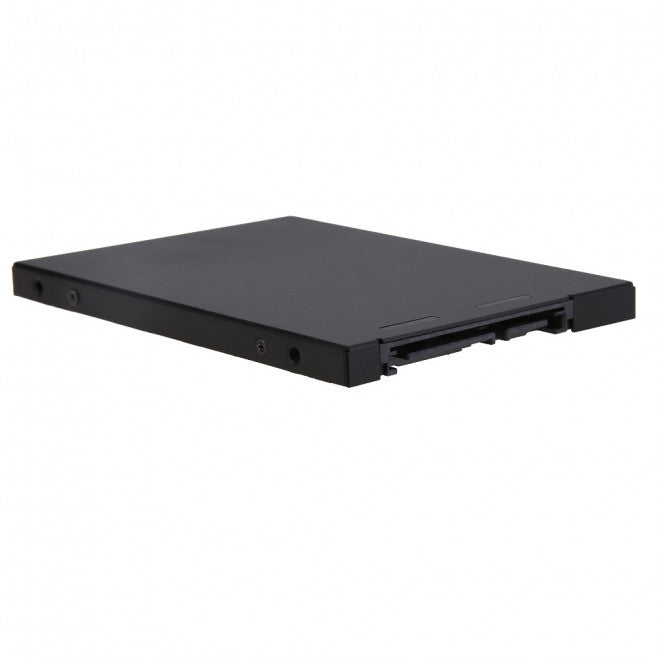

Simplecom SA101 mSATA to 2.5" SATA Converter Enclosure
Simplecom SA101 mSATA to 2.5" SATA Converter Enclosure
SKU:HXSI-SA101
The Simplecom SA101 is an mSATA to 2.5" SATA converter enclosure that allows you to repurpose mSATA SSDs into standard SATA drives. Featuring durable aluminium construction, compact design, and reliable performance conversion, it extends the usability of legacy mSATA storage for modern systems.
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | Simplecom |
|---|---|
| Category | Hard Drives - External |
| SKU | HXSI-SA101 |
| Availability | In Stock |
Overview
- The Simplecom SA101 is a practical converter enclosure that bridges the gap between legacy mSATA storage and modern SATA interfaces. By converting mSATA SSDs into standard 2.5" SATA form factor, it enables you to repurpose older solid-state drives in new systems without loss of performance or data.
Built with aluminium construction, the SA101 provides effective thermal management while maintaining a slim 7mm profile that fits into standard 2.5" drive bays. This makes it ideal for installing mSATA drives into desktop PCs, laptops, or external USB enclosures.
The enclosure is straightforward to use—simply insert your compatible mSATA SSD and the drive functions as a standard SATA device. No software drivers or additional configuration required. It's a cost-effective solution for organisations with mSATA inventory looking to maximise hardware investment.
Specifications
| Brand | Simplecom |
|---|---|
| Model | SA101 |
| Product Type | mSATA to SATA Converter Enclosure |
| Interface Conversion | mSATA to 2.5" SATA |
| Compatible mSATA Size | 30x50mm |
| Form Factor | 2.5" (7mm height) |
| Casing Material | Aluminium |
| Dimensions | 100mm (L) × 70mm (W) × 7mm (H) |
| Warranty | 12 months |
| Compatibility Notes | Supports mSATA SSDs only; does not support mini PCI-Express (mPCIe) or PATA Mini PCIE SSDs |
Key Features
Ideal For
FAQs
What type of mSATA drives does the SA101 support?
The SA101 is compatible with standard mSATA SSDs measuring 30x50mm. It does not support mini PCI-Express (mPCIe) or PATA Mini PCIE SSDs.
Will my mSATA drive's speed be affected?
No. The SA101 is a pure form factor converter. Your drive's speed, performance, and other properties remain unchanged—only the physical interface is converted from mSATA to standard 2.5" SATA.
Can I use the SA101 with external USB enclosures?
Yes. The SA101 converts your mSATA SSD into a standard 2.5" SATA drive, which can then be installed into a regular 2.5" SATA to USB enclosure for external connectivity.
What are the dimensions of the SA101?
The SA101 measures 100mm (length) × 70mm (width) × 7mm (height), making it compatible with standard 2.5" drive bays.
Is installation difficult?
No. Installation is straightforward—insert your compatible mSATA SSD into the enclosure and it functions immediately as a standard SATA drive. No drivers or configuration needed.
Does the aluminium casing help with heat management?
Yes. The aluminium casing provides effective heat dissipation, helping maintain optimal operating temperatures for your mSATA drive.
