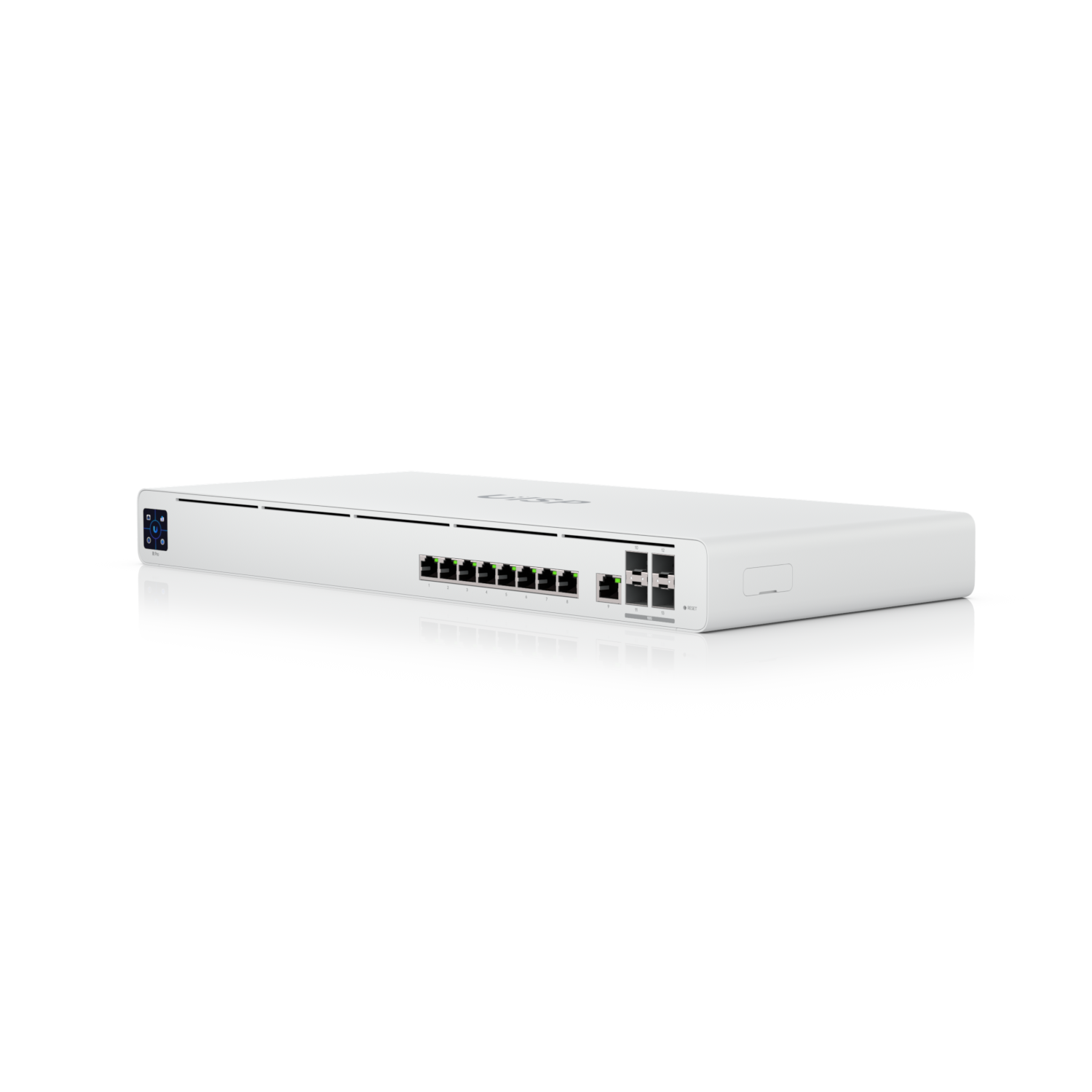

Ubiquiti UISP-R-Pro Multi-WAN 10GbE Router
Ubiquiti UISP-R-Pro Multi-WAN 10GbE Router
SKU:NHU-UISP-R-PRO
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | Ubiquiti |
|---|---|
| Category | Network - UISP |
| SKU | NHU-UISP-R-PRO |
| Availability | In Stock |
Overview
- The Ubiquiti UISP-R-Pro is a professional-grade multi-WAN router engineered for service provider and enterprise network deployments. Built on the UISP ecosystem, it combines high-capacity switching with advanced routing in a single platform, eliminating the need for separate switch and router infrastructure.
With nine Gigabit Ethernet ports and four 10G SFP+ ports, the UISP-R-Pro supports diverse connectivity requirements. The integrated Layer 2 switch enables line-rate switching across eight ports, whilst the remaining ports maintain routed functionality, providing operational flexibility for complex network topologies.
Performance is substantial: up to 9,500 Mbps NAT throughput under standard conditions, with intelligent QoS and IP Accounting options allowing fine-grained traffic management. Built-in firewall and OSPF routing make it suitable for multi-site and carrier-grade deployments. Dual power inputs ensure availability in mission-critical environments.
Specifications
| Ports | 9 x Gigabit Ethernet RJ45 + 4 x 10G SFP+ |
|---|---|
| Switching | Integrated Layer 2 switch (line-rate on ports 1-8, 10-13) |
| NAT Throughput | Up to 9,500 Mbps (standard); 2,250 Mbps (with QoS); 7,500 Mbps (with IP Accounting) |
| Routing Protocols | OSPF, static routing |
| Security Features | Stateful firewall |
| Traffic Management | Traffic shaping, QoS, IP Accounting, automated customer suspension |
| Power Supply | Dual DC power inputs for redundancy |
| Warranty | 12 months |
Key Features
Ideal For
FAQs
What is the maximum NAT throughput of the UISP-R-Pro?
The UISP-R-Pro delivers up to 9,500 Mbps NAT throughput under standard conditions. With QoS enabled, throughput reduces to 2,250 Mbps; with IP Accounting enabled, it reaches 7,500 Mbps.
Can the UISP-R-Pro function as both a switch and router?
Yes. The integrated Layer 2 switch handles switching on ports 1-8 and 10-13 at line rate, whilst all ports retain routing capabilities. This hybrid design eliminates the need for separate switch and router hardware.
How many 10G ports does it have?
The UISP-R-Pro includes four 10G SFP+ ports for high-speed uplinks and inter-device connectivity.
Does it support redundant power?
Yes. The UISP-R-Pro features dual DC power inputs, enabling power redundancy for high-availability deployments.
Is this router suitable for ISP environments?
Yes. The UISP-R-Pro is purpose-built for ISP and carrier applications. It includes multi-WAN support, traffic shaping, automated customer suspension, and advanced routing, making it ideal for service provider networks.
What routing protocols are supported?
The UISP-R-Pro supports OSPF and static routing, enabling flexible network topology design.
Does it include a built-in firewall?
Yes. The UISP-R-Pro includes a stateful firewall for network security and traffic filtering.
