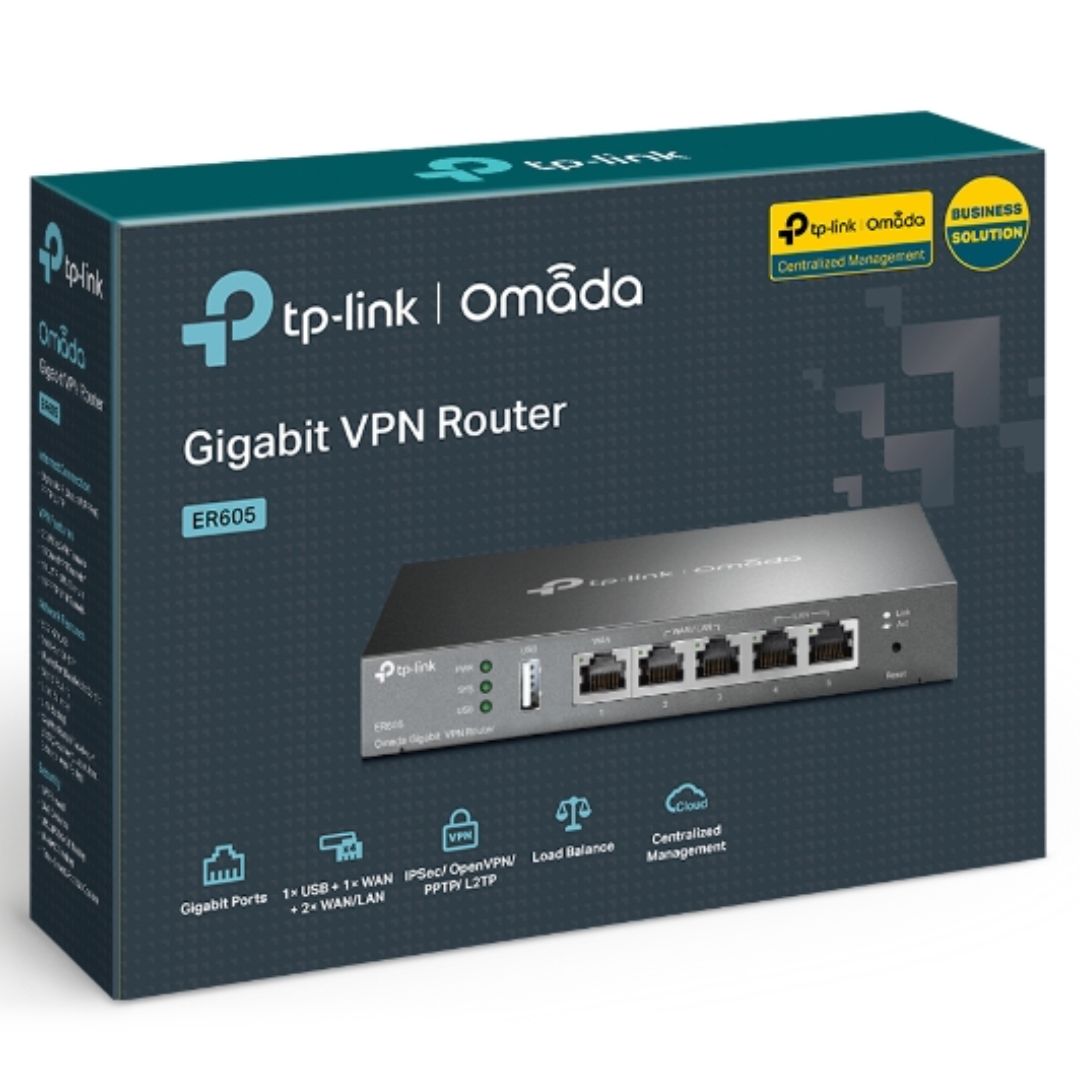

TP-Link TL-ER605 Gigabit Multi-WAN VPN Router
TP-Link TL-ER605 Gigabit Multi-WAN VPN Router
SKU:NWTL-ER605
The TP-Link TL-ER605 is a gigabit multi-WAN VPN router designed for small to medium business networks. Featuring five gigabit ports, up to four WAN connections, and comprehensive VPN support with Omada cloud management, it delivers secure, scalable connectivity for growing businesses.
Couldn't load pickup availability
- See our return policy
- 60 months Manufacturer Warranty
Product Information
| Brand | TP-LINK |
|---|---|
| Category | Network - SMB |
| SKU | NWTL-ER605 |
| Availability | In Stock |
Overview
- The TP-Link TL-ER605 is a professional-grade multi-WAN VPN router purpose-built for SMB networks requiring secure, scalable connectivity across multiple locations. With five gigabit ports and the flexibility to configure up to four WAN connections, it optimises bandwidth utilisation and provides failover redundancy for business continuity.
Integrated into the TP-Link Omada Software-Defined Networking platform, the TL-ER605 offers Zero-Touch Provisioning for rapid deployment and centralised cloud-based management. This eliminates the complexity of managing individual devices and enables IT teams to monitor and configure the network from anywhere.
Security is paramount. The router supports comprehensive VPN protocols (IPsec, OpenVPN, L2TP, PPTP) for secure branch office connectivity, while advanced firewall policies, DoS defence, and granular filtering protect against threats. With 41.5 Mbps IPsec throughput and support for up to 25,000 concurrent sessions, it handles demanding business traffic without compromise.
Ideal for organisations transitioning to cloud-managed networking or expanding multi-site operations, the TL-ER605 combines enterprise security with the simplicity of centralised management.
Specifications
| Brand | TP-Link |
|---|---|
| Model | TL-ER605 |
| Product Type | Gigabit Multi-WAN VPN Router |
| Ports | 1 Fixed Gigabit WAN + 1 Fixed Gigabit LAN + 3 Changeable Gigabit WAN/LAN |
| Total Gigabit Ports | 5 |
| Maximum WAN Connections | 4 |
| Network Standards | IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q |
| Supported Protocols | TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP |
| WAN Connection Types | Static/Dynamic IP, PPPoE, PPTP, L2TP |
| VPN Support | 20× LAN-to-LAN IPsec, 16× OpenVPN, 16× L2TP, 16× PPTP |
| IPsec VPN Throughput | 41.5 Mbps |
| Concurrent Sessions | 25,000 |
| DHCP | DHCP Server/Client, DHCP Address Reservation, Multi-net DHCP, Multi-IP Interfaces |
| Security Features | Advanced firewall policies, DoS defence, IP/MAC/URL filtering |
| Network Media Support | 10BASE-T, 100BASE-TX, 1000BASE-T (UTP Category 3-6, max 100m) |
| Reset Button | Yes |
| Power Supply | External 9V/0.85A DC Adapter |
| Flash Memory | 16 MB SPI |
| RAM | 128 MB |
| LED Indicators | PWR, SYS, WAN, LAN |
| Dimensions (W × D × H) | 158 × 101 × 25 mm (6.2 × 4.0 × 1.0 in) |
| Management | Omada SDN, Zero-Touch Provisioning, Cloud management, Omada app |
| Warranty | 60 months |
Key Features
Ideal For
FAQs
What is the difference between the fixed WAN port and the changeable WAN/LAN ports?
The TL-ER605 has one dedicated fixed gigabit WAN port for primary internet connectivity, plus one fixed gigabit LAN port. The three additional gigabit ports can be configured as either WAN or LAN connections depending on your network needs, allowing up to four total WAN connections for multi-ISP or failover scenarios.
How many VPN connections can the TL-ER605 support simultaneously?
The router supports up to 20 LAN-to-LAN IPsec connections, 16 OpenVPN connections, 16 L2TP connections, and 16 PPTP connections. This makes it suitable for businesses with multiple branch offices or remote site connectivity requirements.
What is Omada SDN and how does it benefit my business?
Omada is TP-Link's Software-Defined Networking platform that provides centralised cloud-based management. It enables Zero-Touch Provisioning for rapid device deployment, real-time monitoring of network health, and simplified configuration across all managed devices—eliminating the need to manage routers individually.
Can I manage the TL-ER605 remotely?
Yes. The router integrates with TP-Link's Omada cloud management system and mobile app, allowing you to monitor, configure, and troubleshoot your network from anywhere. You can also access the web interface via HTTPS for direct management.
What security features protect my network on the TL-ER605?
The router includes advanced firewall policies, DoS (Denial of Service) defence, IP filtering, MAC filtering, URL filtering, and support for encrypted VPN protocols (IPsec, OpenVPN, L2TP, PPTP). These features work together to prevent unauthorised access and protect sensitive business data.
What is the maximum cable length for network connections?
The TL-ER605 supports standard Ethernet cabling up to 100 metres for 10BASE-T, 100BASE-TX, and 1000BASE-T connections, following EIA/TIA-568 standards. This accommodates typical office environments and building infrastructure.
Is the TL-ER605 suitable for my growing business?
Yes. With five gigabit ports, up to four WAN connections, 25,000 concurrent sessions, and integration with the scalable Omada SDN platform, the TL-ER605 is designed to grow with your business. You can easily add more Omada-managed devices as your network expands.
What warranty and support is included?
The TL-ER605 includes a 60-month (5-year) manufacturer warranty, providing long-term protection and support for your investment.
