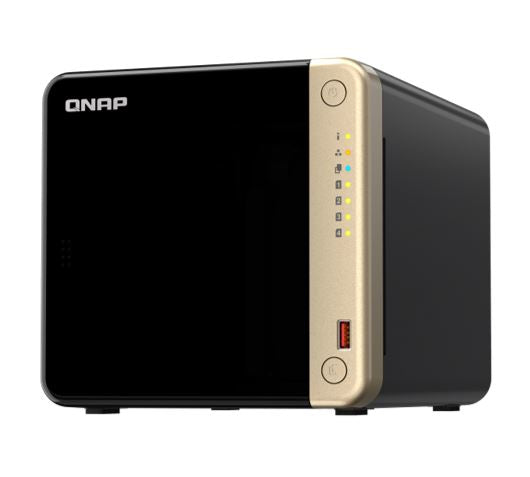

QNAP TS-464-8G 4-Bay NAS Storage
QNAP TS-464-8G 4-Bay NAS Storage
SKU:BAQN-TS-464-8G
Couldn't load pickup availability
- See our return policy
- 3 years Manufacturer Warranty
Product Information
| Brand | QNAP |
|---|---|
| Category | Backup, NAS & Storage |
| SKU | BAQN-TS-464-8G |
| Availability | In Stock |
Overview
- The QNAP TS-464-8G delivers reliable network-attached storage in a compact tower form factor. With its Intel Celeron N5095 quad-core processor and 8GB DDR4 memory, it handles multiple concurrent connections and data transfers efficiently. The dual 2.5 Gigabit Ethernet ports provide fast network performance, while the two M.2 PCIe slots enable SSD caching to accelerate frequently accessed data.
This NAS is ideal for Australian businesses seeking affordable yet capable centralised storage. The hot-swappable drive bays simplify maintenance, and the single PCIe Gen 3 x2 expansion slot allows future network upgrades to 5G or 10G connectivity without replacing the entire unit. Support for up to 1500 concurrent CIFS connections makes it suitable for workgroup environments.
The TS-464-8G operates efficiently at just 40.5W in typical mode and includes a single 120mm fan for quiet operation. HDMI output enables direct display connectivity, and the Kensington security slot provides physical protection. Three-year warranty coverage ensures peace of mind for business-critical deployments.
Specifications
| Processor | Intel Celeron N5095 quad-core/quad-thread, up to 2.9 GHz |
|---|---|
| Architecture | 64-bit x86 |
| Graphics | Intel UHD Graphics |
| Encryption | AES-NI hardware acceleration |
| System Memory | 8GB DDR4 (onboard, non-expandable) |
| Maximum Memory | 8GB |
| Boot Flash | 4GB (dual boot OS protection) |
| Drive Bays | 4 x 3.5-inch SATA 6Gb/s (hot-swappable) |
| Drive Compatibility | 3.5-inch SATA HDD, 2.5-inch SATA SSD |
| M.2 Slots | 2 x M.2 2280 PCIe Gen 3 x1 |
| SSD Cache | Supported |
| Network Ports | 2 x 2.5 Gigabit Ethernet (2.5G/1G/100M/10M) |
| Network Upgrade Options | Optional 5G or 10G via PCIe expansion card |
| PCIe Expansion | 1 x PCIe Gen 3 x2 slot (190 x 68.9 x 18.76 mm) |
| USB 2.0 | 2 ports |
| USB 3.2 Gen 2 | 2 x Type-A (10 Gbps) |
| Wake on LAN | Supported |
| Jumbo Frame | Supported |
| HDMI Output | 1 x HDMI 2.0 (up to 4096 x 2160 @ 60Hz) |
| IR Sensor | Optional (compatible with QNAP RM-IR004) |
| Form Factor | Tower |
| LED Indicators | Power/Status, LAN, USB, HDD1-4 |
| Control Buttons | Power, USB copy, Reset |
| Dimensions | 168H x 170W x 226D mm |
| Net Weight | 2.26 kg |
| Gross Weight | 3.6 kg |
| Operating Temperature | 0–40 °C |
| Storage Temperature | -20–70 °C |
| Relative Humidity | 5–95% RH (non-condensing) |
| Power Supply | 90W adapter, 100–240V |
| Power Consumption (HDD Sleep) | 21.6W |
| Power Consumption (Operating) | 40.5W (typical, fully populated) |
| Cooling | 1 x 120mm 12VDC fan |
| System Warning | Buzzer |
| Security | Kensington security slot |
| Max Concurrent CIFS Connections | 1500 |
| Warranty | 3 years |
Key Features
Ideal For
FAQs
What type of drives does the QNAP TS-464-8G support?
The TS-464-8G supports both 3.5-inch SATA hard disk drives and 2.5-inch SATA solid state drives in the four main bays. Additionally, the two M.2 2280 PCIe Gen 3 slots support NVMe SSDs for caching acceleration. For a complete HDD compatibility list, visit QNAP's official compatibility database.
Is the RAM upgradeable?
No. The TS-464-8G comes with 8GB DDR4 memory soldered onboard and is not expandable. Maximum capacity is 8GB.
Can I upgrade the network to 10 Gigabit?
Yes. The TS-464-8G includes one PCIe Gen 3 x2 expansion slot that supports optional 5G or 10G Ethernet expansion cards, allowing you to upgrade network connectivity without replacing the unit.
What is the typical power consumption?
The TS-464-8G consumes approximately 40.5W in typical operating mode with drives fully populated. In HDD sleep mode, consumption drops to 21.6W, making it energy-efficient for 24/7 deployment.
Does it come with hard drives?
No. The TS-464-8G is shipped without drives. You will need to purchase compatible 3.5-inch SATA drives separately.
How many users can connect simultaneously?
The TS-464-8G supports a maximum of 1500 concurrent CIFS (network file sharing) connections, making it suitable for small to medium workgroup environments.
What warranty is included?
The QNAP TS-464-8G includes a 3-year manufacturer's warranty covering hardware defects and failures.
