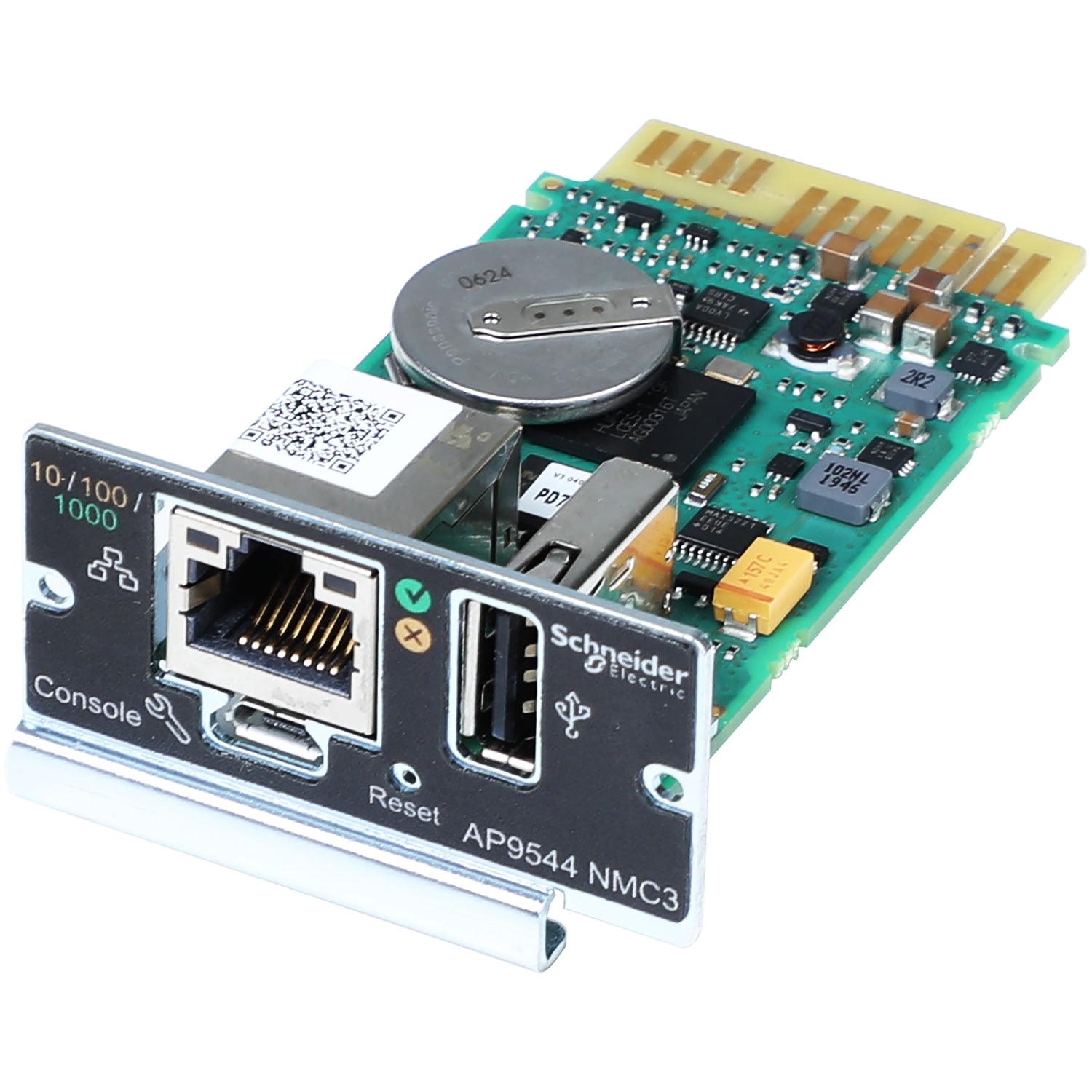

APC AP9544 Network Management Card for Easy UPS
APC AP9544 Network Management Card for Easy UPS
SKU:UPA-AP9544
Couldn't load pickup availability
- See our return policy
- 24 months Manufacturer Warranty
Product Information
| Brand | APC |
|---|---|
| Category | UPS & Power Board |
| SKU | UPA-AP9544 |
| Availability | In Stock |
Overview
- The APC AP9544 Network Management Card transforms your Easy UPS 1-Phase system into a remotely monitored asset. It provides secure, browser-based access to real-time power status and control functions, eliminating the need for on-site manual checks. The high-speed processor ensures responsive performance even with simultaneous multi-user access, whilst integrated security compliance protects critical operational data.
Designed for modern IT environments, the AP9544 integrates seamlessly with EcoStruxure™ IT Software and any SNMP-enabled management platform. Gigabit ethernet connectivity ensures fast communication between your UPS and monitoring systems, reducing latency and improving response times during power events. For distributed operations, the card supports wireless communication via the optional AP9834 adapter, providing flexible deployment options.
With 24-month warranty coverage and compliance with international standards including FCC, ICES, VCCI, and AS/NZS certifications, the AP9544 meets the reliability and safety requirements of Australian data centres and mission-critical environments.
Specifications
| Product Type | Network interface |
|---|---|
| Model | AP9544 |
| Manufacturer | APC |
| Warranty | 24 months |
| Operating Temperature Range | -5°C to 45°C |
| Operating Altitude | 0 to 10,000 feet |
| Operating Humidity | 0% to 95% (non-condensing) |
| Storage Temperature Range | -15°C to 65°C |
| Storage Altitude | 0 to 15,240 metres |
| Storage Humidity | 0% to 95% (non-condensing) |
| Ethernet Connectivity | Gigabit ethernet |
| Mounting | Not rack mountable |
| Included Accessories | User manual, USB cable |
| Compatible Wireless Adapter | AP9834 |
| Security Standards | CISPR 32, EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-2, EN/IEC 62040-2 |
| Product Certifications | FCC Class A, ICES-003, VCCI Class A, AS/NZS |
Key Features
Ideal For
FAQs
What UPS systems is the APC AP9544 compatible with?
The AP9544 is designed for APC Easy UPS 1-Phase online systems. It enables remote monitoring and control specifically for these UPS models.
Can I monitor the UPS remotely via the internet?
Yes. The AP9544 provides secure remote monitoring through a web browser interface, EcoStruxure™ IT Software, or any SNMP-enabled management system, allowing you to access your UPS from anywhere.
How many users can access the network management card simultaneously?
The AP9544 supports simultaneous multiple user logins, allowing your team to monitor the UPS at the same time without connection conflicts.
What wireless capability does the AP9544 support?
The AP9544 is compatible with the APC AP9834 wireless communication adapter, enabling wireless connectivity for flexible deployment where hardwired ethernet is not practical.
What security standards does the AP9544 comply with?
The AP9544 meets international security and EMC standards including CISPR 32, EN 55024, EN 61000 series, and EN/IEC 62040-2. It also holds FCC Class A, ICES-003, VCCI Class A, and AS/NZS certifications.
What is included in the package?
The AP9544 comes with a user manual and USB cable. Additional accessories such as the AP9834 wireless adapter are sold separately.
What is the warranty period?
The APC AP9544 includes a 24-month manufacturer's warranty covering defects and malfunctions under normal operating conditions.
