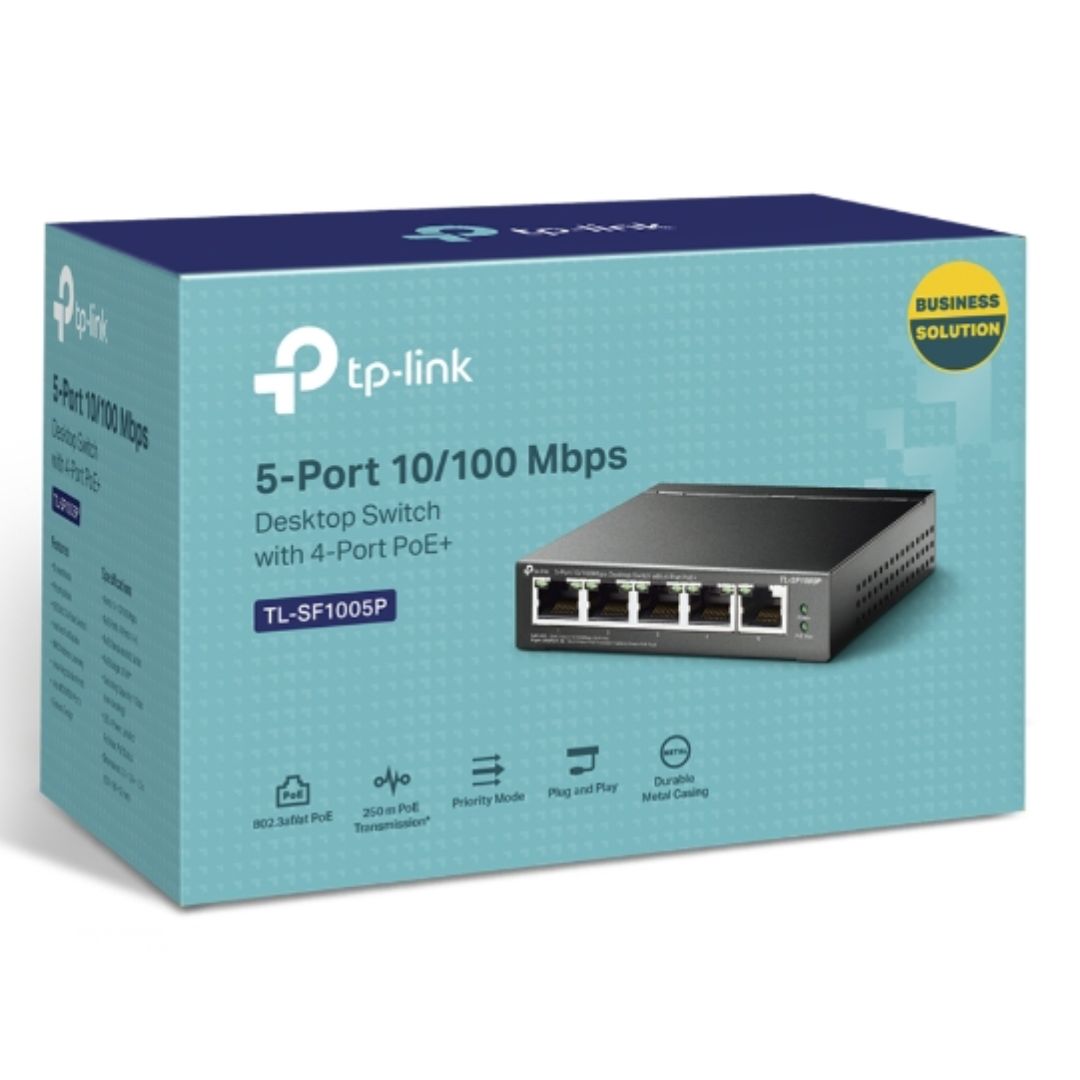

TP-Link TL-SF1005P 5-Port 10/100Mbps Switch with PoE
TP-Link TL-SF1005P 5-Port 10/100Mbps Switch with PoE
SKU:NWTL-SF1005P
Couldn't load pickup availability
- See our return policy
- 60 Manufacturer Warranty
Product Information
| Brand | TP-LINK |
|---|---|
| Category | Network - Consumer |
| SKU | NWTL-SF1005P |
| Availability | In Stock |
Overview
- The TP-Link TL-SF1005P is an unmanaged 5-port network switch designed to simplify network and power infrastructure for small offices and remote installations. With four integrated PoE ports, it delivers data and power through a single Ethernet cable, eliminating the need for separate power supplies at device locations—ideal for IP cameras, wireless access points, and VoIP phones.
Operating fanlessly with no moving parts, the switch is silent and requires minimal maintenance. It offers straightforward plug-and-play deployment; there is no configuration interface to manage, making it suitable for businesses without dedicated IT teams. The 1Gbps switching capacity and automatic port negotiation ensure reliable network performance across all connected devices.
With IEEE 802.3af compliance, the switch automatically detects compatible powered devices and supplies up to 15.4W per PoE port (58W total across four ports). This makes it an economical choice for expanding networks to locations where power infrastructure is unavailable or inconvenient. The compact desktop design fits easily into office spaces or network cabinets.
Specifications
| brand | TP-Link |
|---|---|
| model | TL-SF1005P |
| product_type | Unmanaged Network Switch |
| ports | 5 x 10/100Mbps RJ45 |
| poe_ports | 4 (Ports 1–4) |
| poe_standard | IEEE 802.3af compliant |
| poe_power_per_port | 15.4W maximum |
| poe_total_power | 58W maximum |
| switching_capacity | 1Gbps |
| mac_address_table | 2K |
| port_auto_negotiation | Yes |
| auto_mdi_mdix | Yes |
| network_cable_support_10baseT | UTP Category 3, 4, 5 cable (max 100m); EIA/TIA-568 100Ω STP (max 100m) |
| network_cable_support_100basetx | UTP Category 5, 5e cable (max 100m); EIA/TIA-568 100Ω STP (max 100m) |
| transmission_method | Store-and-Forward |
| cooling | Fanless |
| power_supply | External 48VDC / 1.25A adapter |
| power_consumption_with_poe | 63.51W maximum (with 58W PD connected) |
| power_consumption_without_poe | 1.70W maximum (no PD connected) |
| dimensions_mm | 99.8 x 98 x 25 (W x D x H) |
| dimensions_inches | 3.9 x 3.9 x 1.0 (W x D x H) |
| warranty_months | 60 |
Key Features
Ideal For
FAQs
What devices can I power with the PoE ports?
The TL-SF1005P can power any IEEE 802.3af compliant powered device (PD) requiring up to 15.4W per port. Common devices include wireless access points, IP security cameras, VoIP phones, and network management devices. The switch automatically detects compatible devices and supplies power as needed.
Can I use all four PoE ports simultaneously?
Yes. All four PoE ports can operate simultaneously, with a combined maximum power output of 58W distributed across the four ports.
Is this switch managed or unmanaged?
The TL-SF1005P is an unmanaged switch. It requires no configuration and works out of the box. There is no web interface or command-line management—it automatically handles switching, PoE detection, and port negotiation.
What is the maximum cable length from the switch to a powered device?
The maximum transmission distance is 100 metres using standard Ethernet cable (UTP Category 5 or STP). This applies to both data and power delivery over the PoE connection.
Can I use this switch in a rack-mounted environment?
The TL-SF1005P is a desktop switch with compact dimensions (99.8 x 98 x 25mm). While small, it is not designed for standard 19-inch rack mounting. It is best suited for tabletop or shelf placement.
Do I need to supply a separate power adapter for PoE devices?
No. The PoE ports deliver power directly over the Ethernet cable. IEEE 802.3af compliant devices do not require separate power supplies. The switch itself requires only the included external 48VDC power adapter.
Is the switch fanless?
Yes, the TL-SF1005P is completely fanless. It operates silently with no moving parts, making it suitable for quiet office environments and locations where acoustic noise is a concern.
What is the warranty period?
The TP-Link TL-SF1005P includes a 60-month (5-year) manufacturer's warranty.
