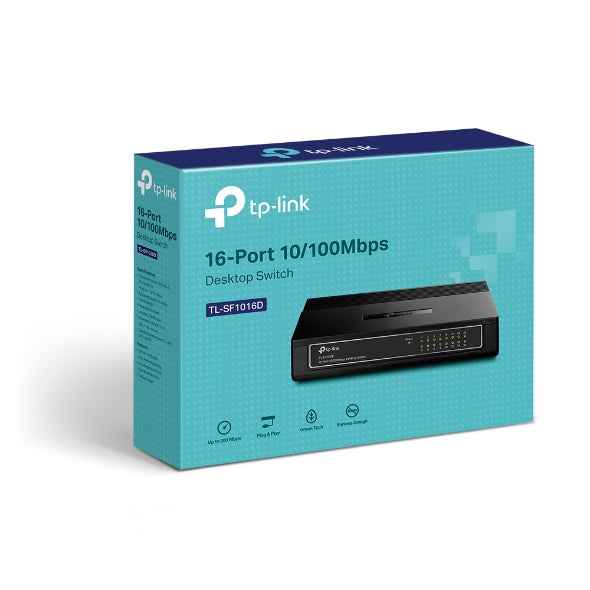

TP-Link TL-SF1016D 16-Port 10/100Mbps Desktop Switch
TP-Link TL-SF1016D 16-Port 10/100Mbps Desktop Switch
SKU:NWTL-SF1016D
The TP-Link TL-SF1016D is a 16-port desktop switch designed for small office and workgroup networking. Featuring 10/100Mbps auto-negotiation ports, Green Ethernet technology, and plug-and-play operation, it delivers reliable connectivity without configuration for growing networks.
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | TP-LINK |
|---|---|
| Category | Network - Consumer |
| SKU | NWTL-SF1016D |
| Availability | In Stock |
Overview
- The TP-Link TL-SF1016D is an entry-level 16-port network switch ideal for small businesses and workgroup environments. Its straightforward design and plug-and-play operation make it suitable for organisations that need reliable connectivity without the complexity of managed switching.
With 16 auto-negotiating 10/100Mbps ports and 3.2Gbps switching capacity, it handles typical office traffic efficiently. The fanless design and Green Ethernet technology mean minimal power draw and operating costs—consuming just 3.23W at full load. Auto MDI/MDIX support eliminates the need for crossover cables, simplifying deployment.
The compact, lightweight chassis supports both desktop and wall-mounted installation, making it flexible for various office layouts. IEEE 802.3x flow control ensures stable data transfer across all ports, protecting against packet loss during peak usage.
Specifications
| ports | 16 × 10/100Mbps RJ45 ports |
|---|---|
| switching_capacity | 3.2Gbps |
| auto_negotiation | Yes |
| auto_mdi_mdix | Yes |
| mac_address_table | 2K entries |
| transfer_method | Store and Forward |
| flow_control | IEEE 802.3x |
| green_ethernet | Yes (up to 80% power savings) |
| fan | Fanless |
| power_supply | External power adapter (5.0VDC / 0.6A) |
| max_power_consumption | 3.23W (220V/50Hz) |
| max_heat_dissipation | 11.01 BTU/h |
| dimensions | 200 × 142 × 40 mm (7.9 × 5.6 × 1.6 in) |
| mounting | Desktop or wall-mount |
| certifications | FCC, CE, RoHS |
| warranty | 36 months |
Key Features
Ideal For
FAQs
Can I wall-mount this switch?
Yes, the TL-SF1016D supports both desktop and wall-mounting installation, making it flexible for various office environments.
Do I need to configure this switch?
No, it's a plug-and-play device. Simply connect the power adapter and network cables—no configuration is required.
What does Auto MDI/MDIX mean?
Auto MDI/MDIX automatically detects and adjusts to the cable type (straight-through or crossover), so you can use any standard Ethernet cable without worrying about cable type.
How much power does this switch consume?
The TL-SF1016D consumes only 3.23W at maximum load. Its Green Ethernet technology can reduce power consumption by up to 80% compared to standard switches.
What is the switching capacity?
The switch has a 3.2Gbps switching capacity, which provides adequate throughput for typical small office and workgroup applications.
Is this switch suitable for large enterprises?
No, this is designed for small offices and workgroups. Larger organisations requiring advanced features like VLANs, QoS, or SNMP management should consider managed switches.
What comes in the box?
The package includes the 16-port switch, external power adapter, and user guide.
