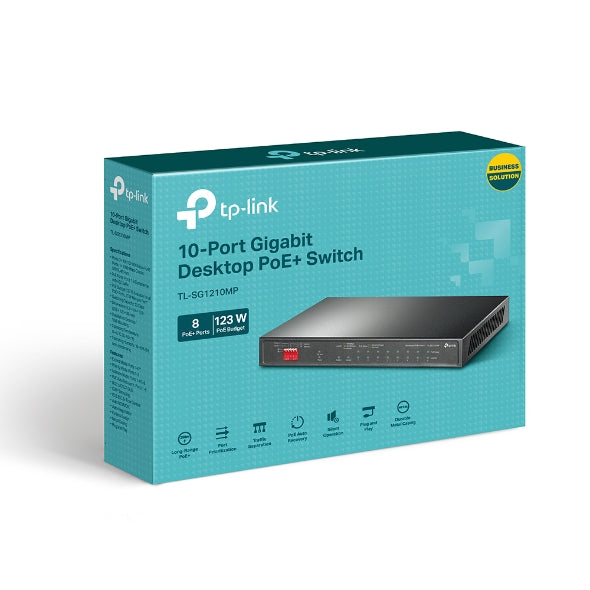

TP-Link TL-SG1210MP 10-Port Gigabit Switch with PoE+
TP-Link TL-SG1210MP 10-Port Gigabit Switch with PoE+
SKU:NWTL-SG1210MP
The TP-Link TL-SG1210MP is a 10-port gigabit network switch with 8-port PoE+ designed for small offices and network infrastructure. Featuring 123 W total power budget, 20 Gbps switching capacity, and plug-and-play operation, it delivers reliable connectivity for business networks.
Couldn't load pickup availability
- See our return policy
- 60 months Manufacturer Warranty
Product Information
| Brand | TP-LINK |
|---|---|
| Category | Network - Consumer |
| SKU | NWTL-SG1210MP |
| Availability | In Stock |
Overview
- The TP-Link TL-SG1210MP is a professional-grade 10-port gigabit switch designed for small to medium business networks. With 8 PoE+ ports delivering up to 30 W per port and a total power budget of 123 W, it provides reliable power and data transmission to connected devices via a single cable—eliminating the need for separate power infrastructure.
The switch offers 20 Gbps switching capacity and supports extended PoE transmission up to 250 m, making it ideal for deploying IP cameras, wireless access points, and other PoE-powered devices across larger office spaces. Its fanless design ensures silent operation, while Priority Mode and Isolation Mode deliver traffic management and security features essential for business networks.
With IEEE 802.3af/at compliance, plug-and-play setup, and automatic PoE recovery for unresponsive devices, this switch combines ease of use with professional network control. The compact desktop form factor and 4K MAC address table make it suitable for growing networks without requiring complex configuration.
Specifications
| Ports | 9× 10/100/1000 Mbps RJ45 ports + 1× 1000 Mbps combo SFP/RJ45 port |
|---|---|
| PoE Ports | 8× PoE+ ports (IEEE 802.3af/at compliant) |
| PoE Power Budget | 123 W total (30 W maximum per port) |
| PoE Transmission Range | Up to 250 m in Extend Mode (ports 1–4) |
| Switching Capacity | 20 Gbps |
| Packet Forwarding Rate | 14.88 Mpps |
| MAC Address Table | 4 K entries |
| Jumbo Frame Support | 16 KB |
| Transmission Method | Store-and-forward |
| Auto Negotiation | Yes |
| Auto MDI/MDIX | Yes |
| Network Media | 10BASE-T/100BASE-TX: UTP category 3, 4, 5 or EIA/TIA-568 100 Ω STP (max 100 m) |
| Power Supply | External adapter (53.5 VDC / 2.43 A) |
| Power Consumption | 7.93 W (no PD connected); 141.40 W (with 123 W PD connected) |
| Heat Dissipation | 27.04 BTU/h (no PD); 482.17 BTU/h (with 123 W PD) |
| Design | Fanless |
| Physical Security | Lock slot available |
| Dimensions | 209 × 126 × 26 mm (8.2 × 4.9 × 1.0 in) |
| Warranty | 60 months |
Key Features
Ideal For
FAQs
What is PoE+ and how does it benefit my business?
PoE+ (Power over Ethernet Plus) allows the switch to deliver both data and power to connected devices through a single ethernet cable. This eliminates the need for separate power supplies, reducing installation costs and cable clutter—especially useful for IP cameras, wireless access points, and VoIP phones.
Can this switch power all 8 PoE ports simultaneously?
The switch has a total power budget of 123 W shared across all 8 PoE ports, with a maximum of 30 W available per port. You can power all 8 ports simultaneously as long as the total power draw does not exceed 123 W.
What is Extend Mode and when would I use it?
Extend Mode on ports 1–4 allows PoE power and data transmission up to 250 m (instead of the standard 100 m), enabling you to deploy PoE devices further from the switch—ideal for ceiling-mounted cameras or access points in larger buildings.
Does the switch require any software configuration?
No. The TL-SG1210MP is a plug-and-play unmanaged switch that works immediately after connection with no configuration required. Its fanless design and automatic features make it ideal for simple network deployments.
What is Priority Mode and how does it help?
Priority Mode ensures that traffic on ports 1–2 receives higher priority, guaranteeing quality of service for sensitive applications such as VoIP, video conferencing, or real-time monitoring systems.
What does Isolation Mode do?
Isolation Mode separates client traffic with a single click, preventing devices on isolated ports from communicating with each other. This enhances security and network performance in multi-tenant or guest network scenarios.
Is the switch suitable for outdoor or harsh environments?
The TL-SG1210MP is designed as a desktop switch for indoor environments. For outdoor deployments, you would need an industrial or weather-rated switch variant.
What warranty and support does this switch include?
The switch includes a 60-month warranty. Support and warranty details are available through Hyetech Australia or your authorised TP-Link reseller.
