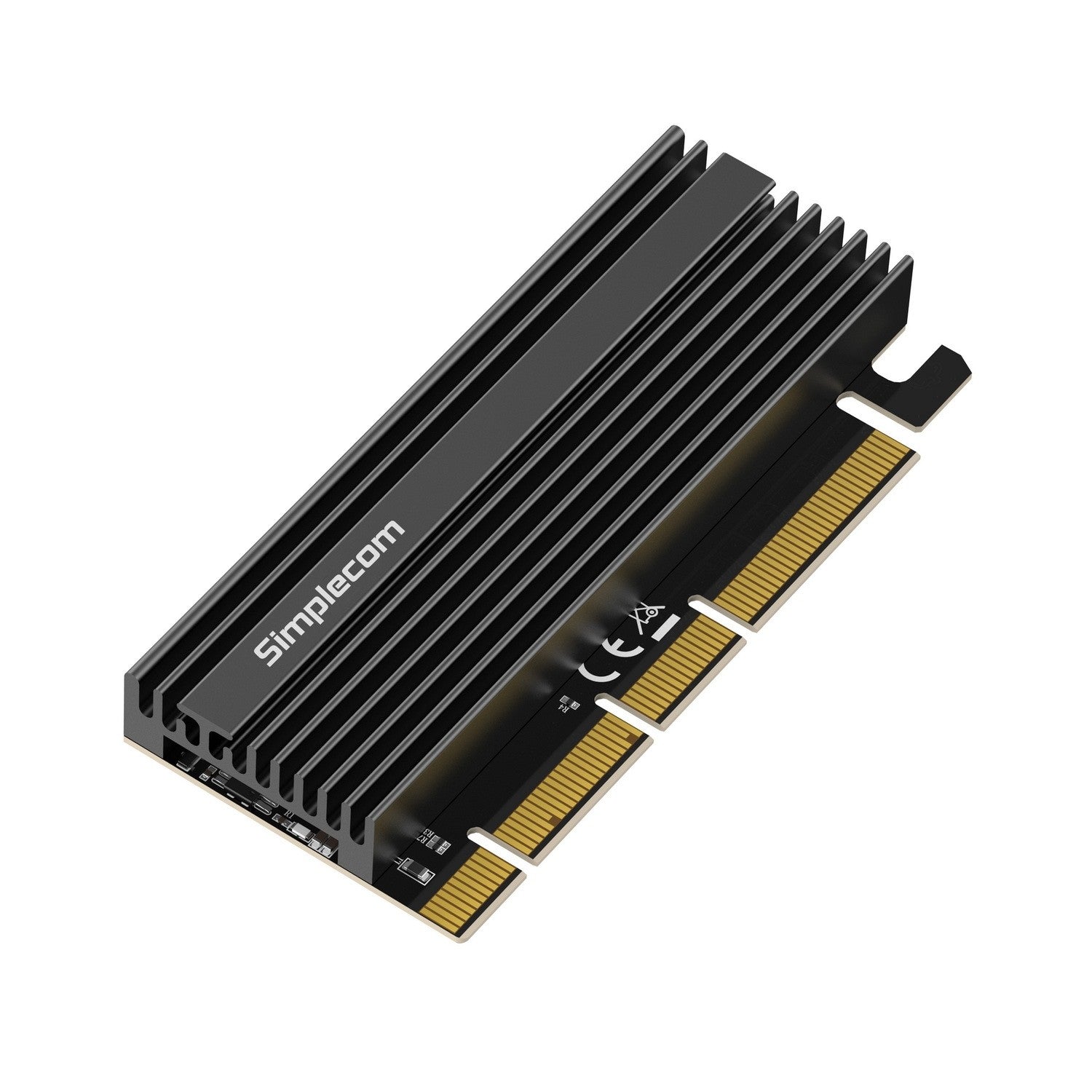

Simplecom EC415B NVMe M.2 SSD PCIe Expansion Card
Simplecom EC415B NVMe M.2 SSD PCIe Expansion Card
SKU:HXSI-EC415B
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | Simplecom |
|---|---|
| Category | Hard Drives - External |
| SKU | HXSI-EC415B |
| Availability | In Stock |
Overview
- The Simplecom EC415B is a PCIe expansion card that transforms empty expansion slots into functional NVMe M.2 storage ports. It addresses a common limitation in many desktop motherboards: insufficient M.2 slots for users with multiple drives or storage expansion needs.
Designed specifically for NVMe M.2 SSDs, the card supports industry-standard form factors (2230, 2242, 2260, 2280) and includes integrated thermal management through its aluminium heatsink and thermal pad. This ensures consistent performance and longevity, particularly important in systems where storage drives may experience sustained workloads.
The card works with any available PCIe x4, x8, or x16 physical slot, making it flexible for different system configurations. It requires no additional power connectors and operates on Windows 8 and later, simplifying installation for most modern systems.
Compatibility with Intel 9 series chipsets and later motherboards ensures broad support for both current and recent-generation systems. This makes it suitable for businesses upgrading storage capacity without purchasing new hardware.
Specifications
| Model | EC415B |
|---|---|
| Colour | Black |
| Physical Interface | PCIe x4, x8, x16 |
| Logical Interface | PCIe x4 |
| Maximum Bandwidth | 7.8 Gbps (PCIe 4.0 x4) |
| Module Key | M key (NVMe only) |
| Number of M.2 Slots | 1 |
| Supported M.2 Form Factors | 2230, 2242, 2260, 2280 |
| Drive Type | NVMe M.2 SSD only |
| Power Supply | PCIe slot powered (no additional power required) |
| Thermal Management | Aluminium heatsink with silicone thermal pad |
| Dimensions | 99 x 45 x 13 mm |
| Operating System | Windows 8 and above |
| Minimum Chipset | Intel 9 series (Z97, H97, Z170, X99) or later |
| Warranty | 12 months |
Key Features
Ideal For
FAQs
What types of M.2 SSDs does the EC415B support?
The EC415B supports NVMe M.2 SSDs only in 2230, 2242, 2260, and 2280 form factors. SATA M.2 SSDs are not compatible. The card uses an M-key connector designed specifically for NVMe devices.
Can I use this card in any PCIe slot on my motherboard?
The card is compatible with PCIe x4, x8, and x16 physical slots. However, it is not compatible with PCIe x1 slots. The card operates at PCIe x4 logical throughput regardless of which slot it occupies.
Do I need additional power cables to use this expansion card?
No. The EC415B draws all power directly from the PCIe slot, so no additional power connectors or cables are required for installation.
Is this card suitable for booting an operating system?
Legacy motherboards without built-in NVMe M.2 support cannot use this card to boot an operating system. For details on your specific system, check your motherboard manual or contact your system manufacturer.
What operating systems are compatible with the EC415B?
The card is compatible with Windows 8 and above. Your motherboard must have an Intel 9 series chipset (Z97, H97, Z170, X99) or later for proper NVMe support.
Does the card include a heatsink?
Yes. The EC415B includes an aluminium heatsink with a pre-applied silicone thermal pad to ensure effective heat dissipation and improve thermal conductivity during operation.
What should I do if I see a yellow exclamation mark in Device Manager after installation?
A yellow exclamation mark may indicate a missing driver. Check your SSD manufacturer's website for any required drivers or firmware updates and install them accordingly.
