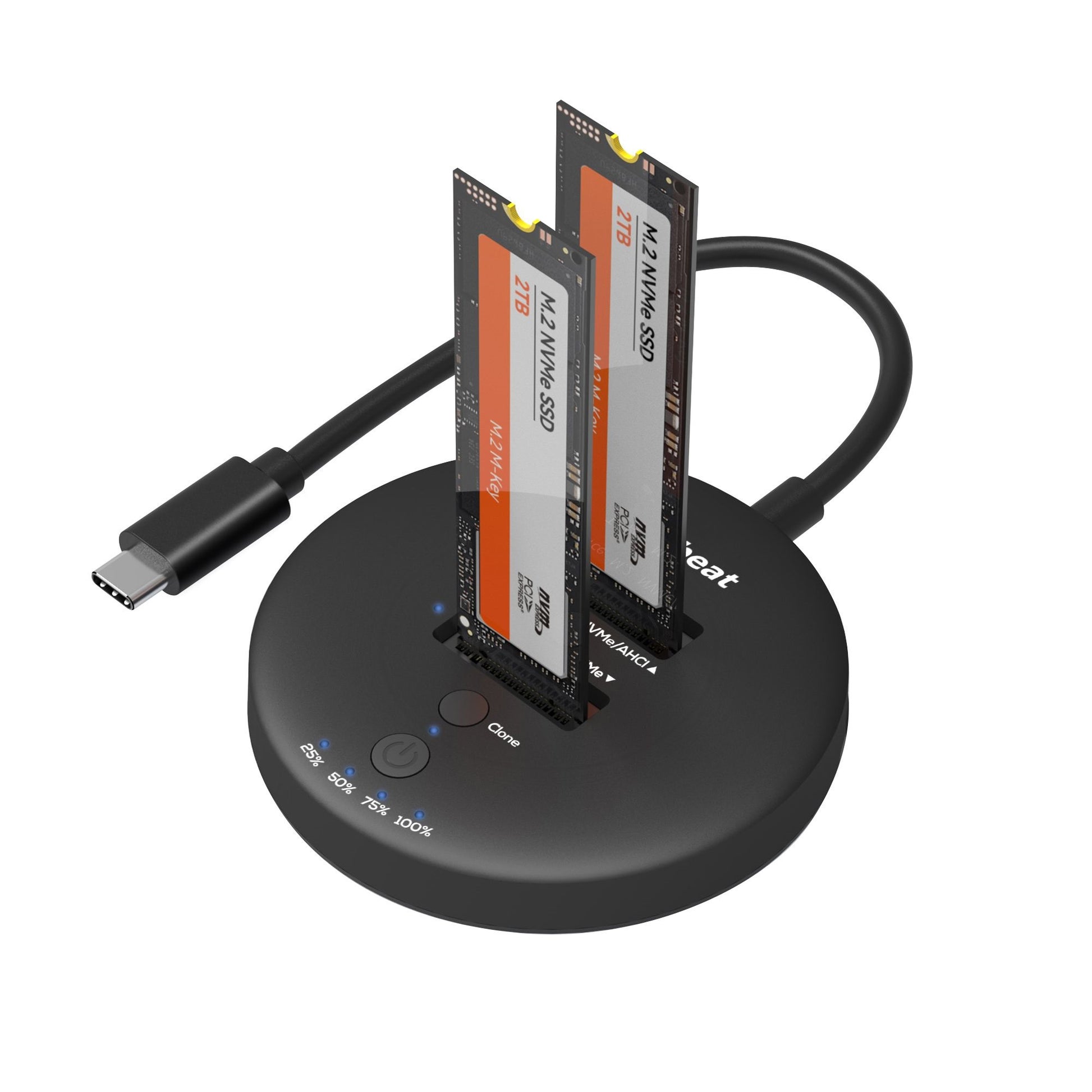

mbeat H3 Dual M.2 NVMe SSD Dock with Clone Duplicator
mbeat H3 Dual M.2 NVMe SSD Dock with Clone Duplicator
SKU:USMB-HDD-M2H3CL
The mbeat H3 is a dual M.2 NVMe SSD dock with integrated clone duplicator, designed for IT professionals and data managers. Featuring USB 3.2 Gen2x2 connectivity, up to 15Gbps clone speeds, and support for multiple M.2 form factors, it delivers fast data transfer and duplication for IT teams and system administrators.
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | MBEAT |
|---|---|
| Category | Hard Drives - External |
| SKU | USMB-HDD-M2H3CL |
| Availability | In Stock |
Overview
- The mbeat H3 is a professional-grade dual M.2 NVMe SSD dock designed for fast data transfer and offline duplication. With USB 3.2 Gen2x2 connectivity delivering up to 20Gbps throughput and clone speeds reaching 15Gbps, it streamlines SSD deployment and data migration workflows. The dock supports multiple M.2 form factors (2230 through 22110) and both NVMe and AHCI SSDs, making it compatible with a wide range of storage devices.
Offline duplication capability eliminates the need for a host computer during clone operations, reducing setup complexity and improving operational efficiency. The integrated clone duplicator automates repetitive data transfer tasks, ideal for IT teams deploying multiple systems or performing bulk SSD replacements. Built-in LED indicators provide real-time status feedback during operations.
Cross-platform compatibility with Windows and macOS ensures seamless integration into mixed-OS environments. The compact, lightweight design (96g) and included 5V/3A power supply make it portable and practical for on-site or laboratory use.
Specifications
| USB Interface | USB-C 3.2 Gen2 (×2) |
|---|---|
| Maximum Data Transfer Speed | 20Gbps (single SSD), 10Gbps per SSD (dual mode) |
| Clone Speed | Up to 15Gbps (requires SSD with min. 2000MB/s read and 1600MB/s write) |
| SSD Compatibility | B+M and M Key NVMe SSDs, AHCI SSDs |
| Supported M.2 Form Factors | 2230, 2242, 2260, 2280, 22110 |
| Controller IC | JMS586U |
| USB Backward Compatibility | USB 3.1, USB 3.0, USB 2.0 |
| Operating System Support | Windows 2000, 2003, XP, Vista, 7, 8, 8.1, 10, 11; macOS |
| Power Supply | 5V/3A DC (included) |
| Cable | Built-in USB-C, 25cm length |
| Dimensions | 332mm × 76mm × 16.3mm |
| Weight | 96g (including cable) |
| Warranty | 12 months |
| Package Contents | Dual M.2 SSD Dock, DC Power Supply, User Manual |
Key Features
Ideal For
FAQs
What is the maximum clone speed, and does it require both SSDs to achieve it?
The maximum clone speed is 15Gbps. To achieve this speed, the source SSD must support a minimum of 2000MB/s read speed and 1600MB/s write speed. Clone speed may be limited by the slower of the two SSDs in the duplication pair.
Can I use the mbeat H3 without connecting it to a computer?
Yes. The H3 features offline duplication capability, allowing you to clone SSDs without connecting to a host computer. Simply insert both drives, connect power, and initiate the clone operation using the integrated duplicator.
Which M.2 SSD form factors are supported?
The mbeat H3 supports M.2 SSDs in the following sizes: 2230, 2242, 2260, 2280, and 22110. It is compatible with both NVMe (B+M and M Key) and AHCI SSDs.
What is the difference between the 20Gbps and 10Gbps transfer speeds?
The dock achieves up to 20Gbps when using a single M.2 SSD. When two SSDs are installed simultaneously, the bandwidth is split between them, providing up to 10Gbps per drive.
Is the mbeat H3 compatible with macOS?
Yes. The H3 is fully compatible with macOS systems. It works seamlessly across Windows (2000 through 11) and macOS for data transfer and duplication tasks.
What is included in the package?
The package includes the Dual M.2 SSD Dock, a 5V/3A DC Power Supply, and a User Manual. The dock has a built-in 25cm USB-C cable for connection to a host computer.
Is backward compatibility with older USB standards supported?
Yes. The H3 is backward compatible with USB 3.1, USB 3.0, and USB 2.0 standards, though transfer speeds will be limited by the older standard in use.
