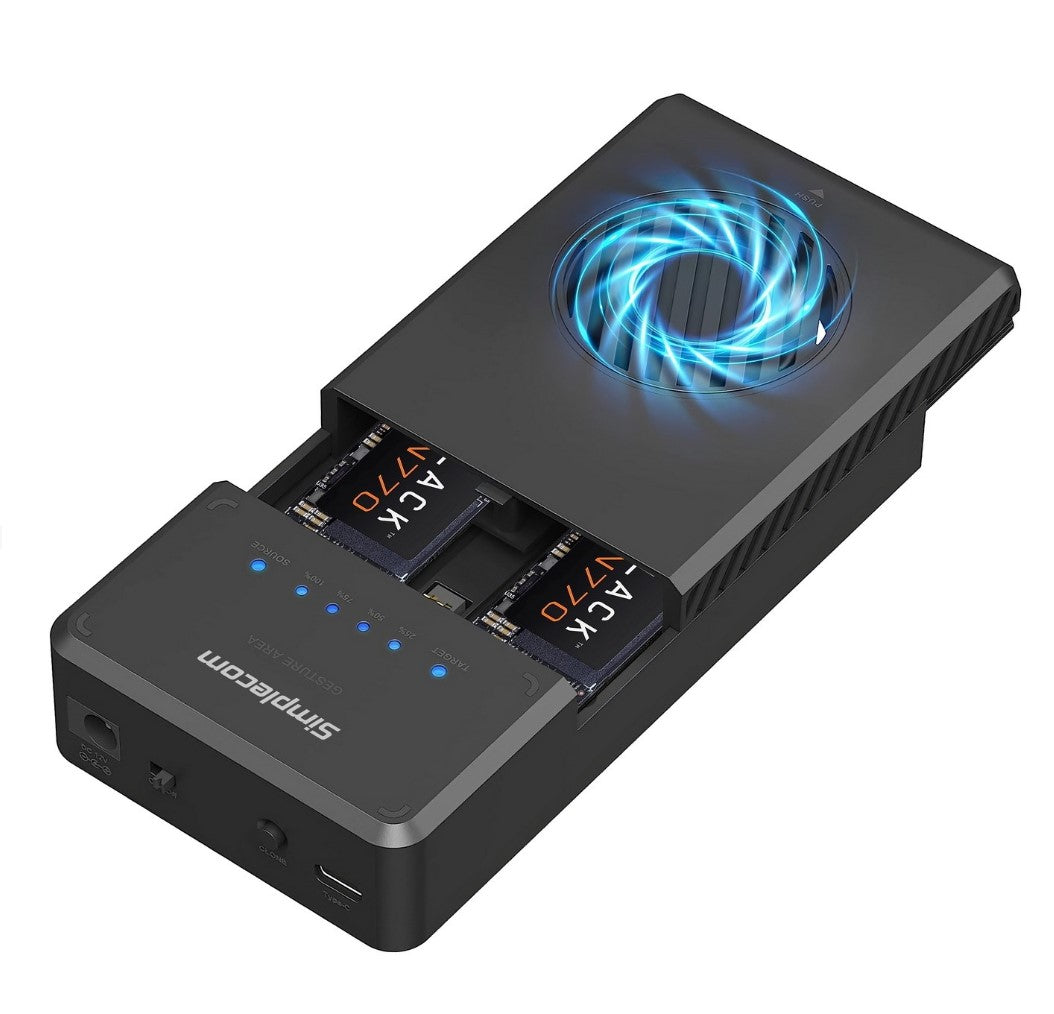

Simplecom SD560 Dual Bay NVMe M.2 SSD Docking Station
Simplecom SD560 Dual Bay NVMe M.2 SSD Docking Station
SKU:HXSI-SD560
The Simplecom SD560 is a dual bay NVMe M.2 SSD docking station designed for fast data access and offline cloning. Featuring USB 3.2 Gen2 10Gbps connectivity, offline clone capability, and intelligent cooling, it delivers reliable performance for IT professionals and data-intensive workflows.
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | Simplecom |
|---|---|
| Category | Hard Drives - External |
| SKU | HXSI-SD560 |
| Availability | In Stock |
Overview
- The Simplecom SD560 is a dual bay NVMe M.2 SSD docking station that streamlines SSD management and data transfer. It provides simultaneous access to two NVMe M.2 SSDs with USB 3.2 Gen2 speeds of up to 10Gbps, enabling efficient workflows for IT professionals and data-intensive tasks.
Unlike traditional USB adapters, the SD560 supports offline cloning—allowing you to duplicate drives without connecting to a host computer. This makes it invaluable for rapid backup, drive migration, and disaster recovery scenarios. The intelligent cooling system automatically manages thermal performance, extending SSD lifespan during intensive operations.
With support for all common M.2 form factors (2230, 2242, 2260, 2280) and multi-LUN functionality, the SD560 assigns each drive its own letter, eliminating conflicts and simplifying management. The compact aluminium construction makes it ideal for both fixed and portable setups.
Specifications
| Model | SD560 |
|---|---|
| Interface | USB-C (USB 3.2 Gen 2) |
| Data Transfer Rate | Up to 10Gbps |
| SSD Type Supported | NVMe M.2 only |
| M.2 Form Factors Supported | 2230, 2242, 2260, 2280 |
| Bay Configuration | Dual bay |
| Multi-LUN Support | Yes (separate drive letter per slot) |
| Power Input | 12V 2A DC |
| Cooling | 4410 5V fan with auto-on/off |
| Construction Materials | ABS and aluminium |
| Dimensions | 125 x 65 x 25mm |
| Net Weight | 115g |
| Operating System Compatibility | Windows 7 and above, macOS 10.8 and above |
| Warranty | 12 months |
| Package Contents | SD560 docking station, USB-C to USB-A combo cable, 12V 2A power adapter, user manual |
Key Features
Ideal For
FAQs
Can I use the SD560 with SATA SSDs or M.2 SATA drives?
No, the SD560 supports NVMe M.2 SSDs only. It is not compatible with SATA SSDs or M.2 SATA drives.
Does the SD560 support offline cloning without a computer?
Yes. The SD560 features standalone offline clone functionality, allowing you to duplicate drives directly between the two bays without connecting to a host computer.
What M.2 form factors does the SD560 support?
The SD560 supports M.2 NVMe SSDs in 2230, 2242, 2260, and 2280 sizes, covering all common form factors.
How fast is the USB 3.2 Gen2 connection?
USB 3.2 Gen2 delivers up to 10Gbps data transfer speeds, enabling rapid cloning and file transfers compared to older USB 3.0 standards.
Is the cooling fan always running?
No. The intelligent cooling fan automatically activates when SSDs are reading or writing and switches off during idle periods, reducing noise and power consumption.
Do I need to install drivers to use the SD560?
The SD560 is plug-and-play on Windows 7 and above, and macOS 10.8 and above. No driver installation is required.
Can both NVMe bays be used simultaneously?
Yes. The SD560 supports multi-LUN functionality, allowing simultaneous access to both drives with separate drive letters for each SSD.
