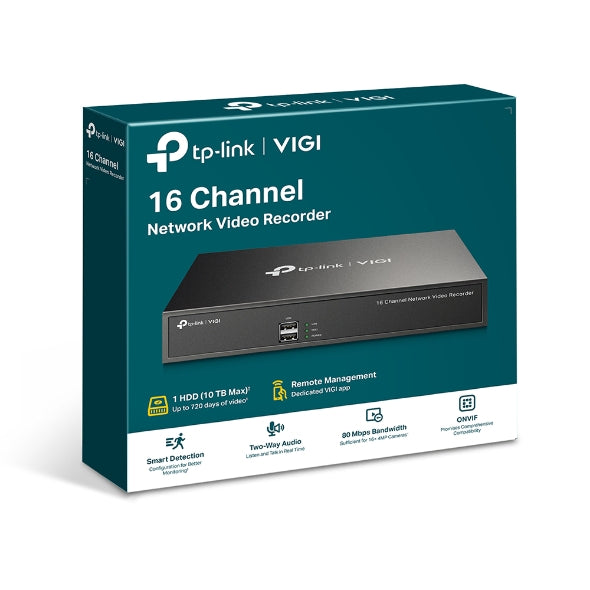

TP-Link VIGI NVR1016H 16-Channel NVR
TP-Link VIGI NVR1016H 16-Channel NVR
SKU:NWTL-VIGI-NVR1016H
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | TP-LINK |
|---|---|
| Category | Security and Surveillance |
| SKU | NWTL-VIGI-NVR1016H |
| Availability | In Stock |
Overview
- The TP-Link VIGI NVR1016H is a 16-channel network video recorder built for businesses that need reliable, round-the-clock surveillance. It supports up to 8MP resolution across all 16 channels simultaneously, ensuring you capture critical details from every monitored area. The device records continuously to a single SATA hard drive (up to 10TB), providing approximately 720 days of footage storage depending on resolution and frame rate settings.
The NVR uses H.265+ video compression technology to minimise bandwidth consumption and storage requirements without sacrificing image quality—a significant cost advantage for organisations managing multiple high-resolution camera feeds. The intuitive interface includes smart search and playback features, allowing you to locate specific events quickly by date, event type, or custom tags.
Remote monitoring is straightforward via the dedicated VIGI app, enabling authorised personnel to view live feeds and review recordings from anywhere. Two-way audio support adds an extra layer of functionality, allowing operators to communicate with people on-site during emergencies or routine management tasks. The device is ONVIF-compliant, meaning you can mix and match TP-Link VIGI cameras with compatible IP cameras from other manufacturers.
Specifications
| channels | 16-channel IP video input |
|---|---|
| maximum_resolution | 8MP |
| supported_resolutions | 8MP, 5MP, 4MP, 3MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF |
| video_output | HDMI and VGA |
| output_resolution | 1920×1080p/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1680×1050/60Hz, 1440×900/60Hz |
| decoding_format | H.265+, H.265, H.264+, H.264 |
| storage_capacity | Up to 10TB (single SATA hard drive) |
| recording_capacity | Approximately 720 days of video (depends on resolution and frame rate) |
| incoming_bandwidth | 80 Mbps |
| outgoing_bandwidth | 60 Mbps |
| network_protocols | TCP/IP, DHCP, DNS, NTP, UPnP |
| two_way_audio | Yes, with voice intercom support |
| remote_monitoring | Dedicated VIGI mobile app |
| onvif_compatible | Yes |
| power_supply | 12V DC / 1.5A |
| power_consumption_no_disk | 4.25W |
| power_consumption_with_disk | 13.10W |
| operating_temperature | -10 to 55°C |
| dimensions_hwd | 246.2 × 148.2 × 45mm |
| weight | 578.5g |
| warranty | 36 months |
| storage_interface | 1 × SATA HDD interface |
Key Features
Ideal For
FAQs
Does the TP-Link VIGI NVR1016H include a hard drive?
No, the hard drive is not included. The NVR supports a single SATA hard drive up to 10TB capacity, which must be purchased separately.
Can I use IP cameras from other manufacturers with this NVR?
Yes. The NVR1016H is ONVIF-compliant, allowing you to integrate compatible IP cameras from TP-Link VIGI and other brands into the same system.
How long can the NVR record on a 10TB drive?
Recording duration depends on resolution and frame rate settings. At typical settings, a 10TB drive can store approximately 720 days of footage.
What is H.265+ compression and why does it matter?
H.265+ is an advanced video compression format that reduces file size and bandwidth usage without reducing image quality. This saves on storage costs and reduces network load compared to older H.264 compression.
Can I monitor the NVR remotely?
Yes. The dedicated VIGI mobile app enables remote live view and playback of recordings from any location with an internet connection.
Does the NVR support two-way audio?
Yes. The NVR includes two-way audio capability with voice intercom support, allowing communication with people on-site while monitoring remotely.
What are the network bandwidth requirements?
The NVR requires an incoming bandwidth of 80 Mbps and outgoing bandwidth of 60 Mbps for optimal performance with all 16 channels active.
What operating temperatures does the NVR support?
The NVR operates reliably in temperatures ranging from -10 to 55°C, making it suitable for both indoor and climate-controlled outdoor installations.
