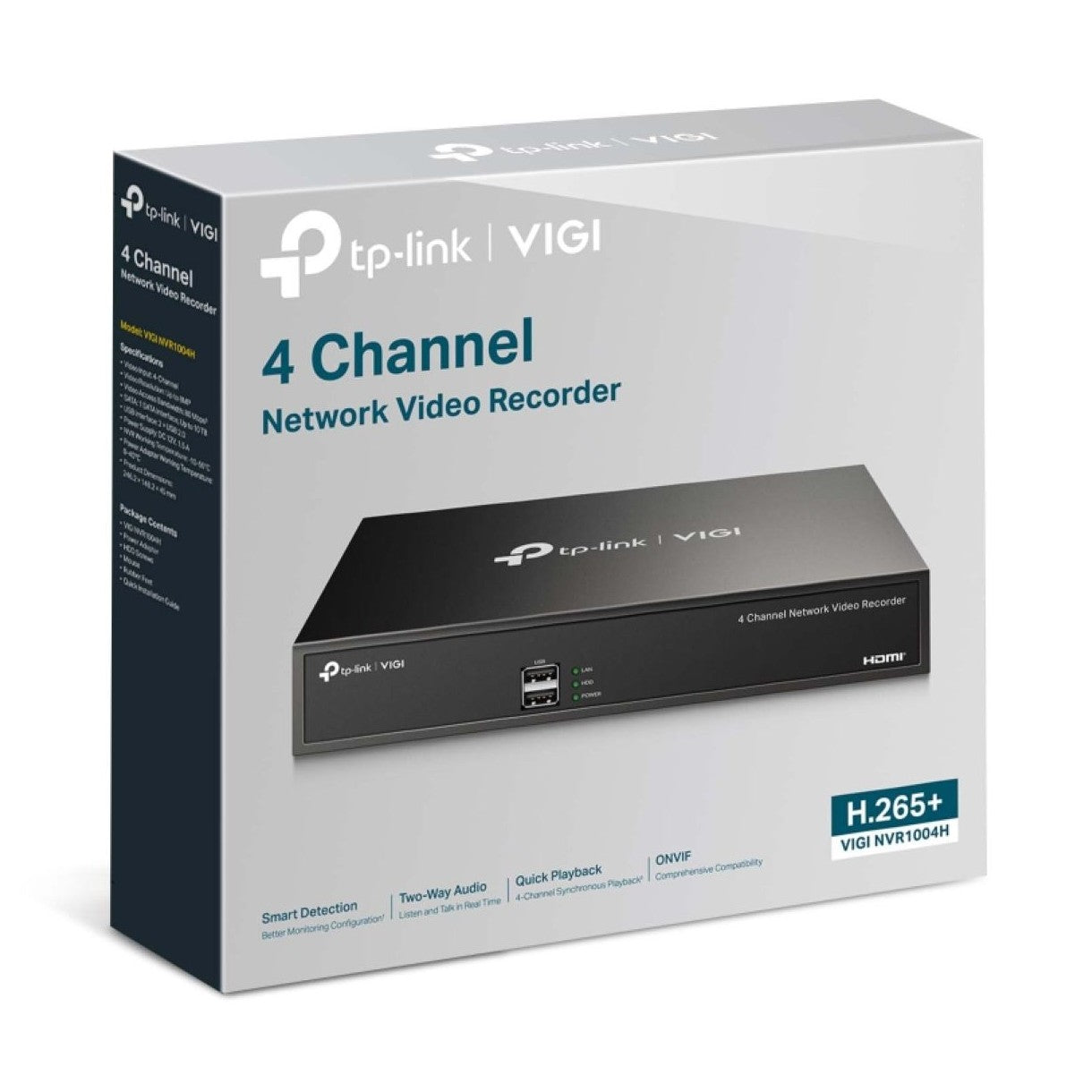

TP-Link VIGI NVR1004H 4-Channel Network Video Recorder
TP-Link VIGI NVR1004H 4-Channel Network Video Recorder
SKU:NWTL-NVR1004H
The TP-Link VIGI NVR1004H is a 4-channel network video recorder designed for small to medium business surveillance systems. Featuring 4K HDMI output, H.265+ compression, and dual-display capability, it delivers efficient video management and remote monitoring for growing security operations.
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | TP-LINK |
|---|---|
| Category | Security and Surveillance |
| SKU | NWTL-NVR1004H |
| Availability | In Stock |
Overview
- The TP-Link VIGI NVR1004H is a compact 4-channel network video recorder built for organisations that need reliable video surveillance without excessive complexity. It supports simultaneous recording from four cameras whilst delivering 4K output to dual displays, making it suitable for control rooms or monitoring stations.
This recorder utilises H.265+ compression technology to reduce storage demands, allowing operators to retain more footage on limited hard drive capacity. With 80 Mbps incoming bandwidth, it can handle moderate resolution streams from multiple cameras simultaneously without bottlenecking.
Remote monitoring capabilities enable security personnel and management to view live feeds and playback footage from office networks or mobile devices, providing flexibility for dispersed teams. The 3-year warranty reflects TP-Link's commitment to reliability in commercial surveillance environments.
Specifications
| Brand | TP-Link |
|---|---|
| Model | VIGI NVR1004H |
| Product Type | Network Video Recorder |
| Channels | 4 |
| Video Output | HDMI (4K) and VGA |
| Decoding Capability | 2-channel @ 8MP or 4-channel @ 4MP |
| Playback | 4-channel synchronous |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 60 Mbps |
| Video Compression | H.265+ |
| Storage Interface | 1 × SATA |
| Maximum Storage Capacity | 10 TB |
| HDD Included | No |
| Warranty Period | 36 months |
Key Features
Ideal For
FAQs
Does the VIGI NVR1004H include a hard drive?
No, the hard drive is not included. You will need to source and install a compatible SATA hard drive separately (up to 10 TB capacity).
Can I monitor the NVR remotely?
Yes, the VIGI NVR1004H supports remote monitoring, allowing you to view live feeds and playback footage from networked devices when properly configured.
What resolution can this NVR handle?
The recorder can decode 2 channels at 8MP resolution or all 4 channels at 4MP resolution, with 4K HDMI output capability for display.
Can I output video to two displays simultaneously?
Yes, the NVR supports simultaneous HDMI and VGA output, allowing you to connect two different displays for monitoring and control room setups.
What is the bandwidth requirement?
The recorder supports up to 80 Mbps incoming bandwidth for camera streams and 60 Mbps outgoing bandwidth for remote access and export.
How does H.265+ compression benefit my system?
H.265+ compression reduces file sizes compared to standard H.264, allowing you to store more video footage on the same hard drive capacity, reducing storage costs.
What warranty is included?
The VIGI NVR1004H comes with a 3-year manufacturer's warranty covering hardware defects and faults.
