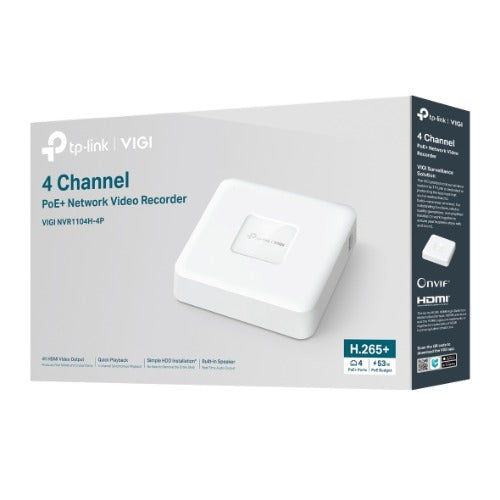

TP-Link VIGI NVR1104H-4P 4-Channel PoE+ NVR
TP-Link VIGI NVR1104H-4P 4-Channel PoE+ NVR
SKU:NWTL-VIGI-NVR1104H-4
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | TP-LINK |
|---|---|
| Category | Security and Surveillance |
| SKU | NWTL-VIGI-NVR1104H-4 |
| Availability | In Stock |
Overview
- The TP-Link VIGI NVR1104H-4P is a 4-channel network video recorder designed to streamline surveillance deployment whilst maintaining professional-grade recording and playback capabilities. By integrating PoE+ power delivery, it eliminates the need for separate power adapters and reduces installation complexity—a significant advantage for businesses standardising their security infrastructure.
With support for 16MP decoding and 4K HDMI output, the NVR captures and displays sharp imagery across multiple camera feeds simultaneously. H.265+ compression technology optimises storage efficiency, allowing extended recording periods whilst minimising bandwidth consumption and operational costs.
The device supports ONVIF-compliant cameras from multiple manufacturers, providing flexibility if you operate mixed-brand networks. Plug & Play functionality with VIGI cameras accelerates deployment, whilst 4-channel simultaneous playback and intelligent search tools make incident investigation faster and more efficient.
Remote monitoring via the dedicated VIGI app, web UI, and VIGI Security Manager ensures security teams can respond to events in real time, regardless of location.
Specifications
| Model | VIGI NVR1104H-4P |
|---|---|
| Channels | 4 |
| Power Delivery | PoE+ (Integrated) |
| Video Decoding | 16MP capacity |
| HDMI Output | 4K |
| Video Compression | H.265+ |
| Recording Capacity | Up to 10TB |
| Recording Mode | 24/7 continuous |
| Simultaneous Playback | 4-channel |
| Camera Compatibility | ONVIF-compliant, TP-Link VIGI cameras |
| Installation | Plug & Play (VIGI cameras), manual for others |
| Audio | Built-in speaker |
| Monitoring | VIGI app, web UI, VIGI Security Manager |
| HDD Installation | Tool-free side access |
| Physical Installation | Wall mount or desk placement |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
Does the NVR1104H-4P include a hard drive?
No, the hard drive is not included. You will need to install a compatible HDD separately. The device features tool-free side access for convenient installation and removal.
Can I use non-TP-Link cameras with this NVR?
Yes, the NVR1104H-4P supports ONVIF-compliant IP cameras from other manufacturers, allowing you to build a mixed-brand surveillance network with barrier-free compatibility.
What is PoE+ and why does it matter?
PoE+ (Power over Ethernet Plus) allows cameras to receive both data and power through a single RJ45 cable, eliminating the need for separate power adapters. This simplifies installation, reduces cable clutter, and lowers deployment costs.
How does H.265+ compression reduce costs?
H.265+ compression delivers crystal-clear video using less data than traditional codecs. This reduces bandwidth consumption, decreases storage requirements, and lowers overall monitoring costs without sacrificing image quality.
Can I monitor the NVR remotely?
Yes, the NVR supports remote monitoring via the dedicated VIGI mobile app, web UI, and VIGI Security Manager software, allowing real-time access from any location.
What is the maximum recording capacity?
The NVR1104H-4P supports up to 10TB of storage for continuous 24/7 recording from all 4 connected cameras, subject to the compression and resolution settings used.
Does the NVR support simultaneous playback from multiple cameras?
Yes, the device supports 4-channel simultaneous playback, allowing you to review footage from all 4 cameras at the same time, with adjustable playback speed and event-based search capabilities.
