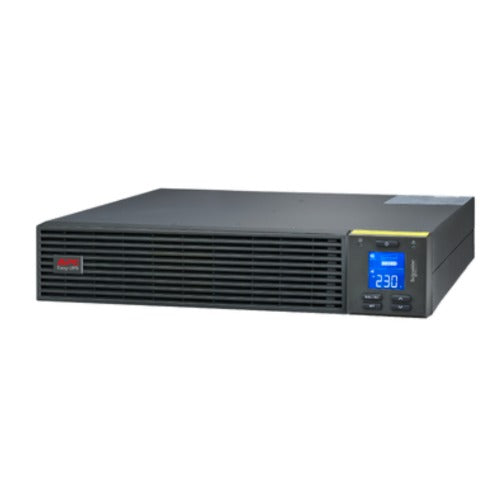

APC Easy UPS 2000VA Online Rackmount UPS with Rail Kit
APC Easy UPS 2000VA Online Rackmount UPS with Rail Kit
SKU:UPAPC-SRV2KRIRK-E
The APC Easy UPS is a 2000VA online double-conversion rackmount UPS designed for IT professionals and network administrators. Featuring pure sine wave output, intelligent card slot for network management, and built-in lead-acid battery, it delivers reliable power protection for critical business systems.
Couldn't load pickup availability
- See our return policy
- 24 months (UPS and internal battery) Manufacturer Warranty
Product Information
| Brand | APC |
|---|---|
| Category | UPS & Power Board |
| SKU | UPAPC-SRV2KRIRK-E |
| Availability | In Stock |
Overview
- The APC Easy UPS is a professional-grade online rackmount UPS designed to protect critical business systems from power disruptions. Using double-conversion technology, it provides clean, pure sine wave power at all times, ensuring sensitive equipment operates reliably even during voltage fluctuations or outages. With 2000VA / 1800W capacity and four IEC C13 outlets, it supports multiple servers, network devices, and storage systems in a compact 2U form factor.
The integrated intelligent card slot allows connection of optional network management cards (AP9544, SRVSMB001, VGL9601I), enabling remote UPS monitoring and management through EcoStruxure IT or third-party platforms. This gives IT teams real-time visibility and control over power conditions across distributed infrastructure. Built-in automatic and manual bypass ensures seamless power delivery even if internal faults occur.
Built for demanding IT environments, the Easy UPS operates efficiently across a wide input voltage range (110–285V) and supports 40–70 Hz auto-sensing. The included lead-acid battery provides approximately 3 minutes of runtime at full load, sufficient for safe shutdown or failover procedures. Backed by a 24-month warranty and compatible with the APCRBCV201 replacement battery cartridge, it delivers long-term cost-effective power continuity.
Specifications
| Power Rating | 2000 VA / 1800 W |
|---|---|
| UPS Topology | Double-conversion online |
| Input Voltage | 230V AC single phase (220V, 240V configurable) |
| Input Frequency | 40–70 Hz auto-sensing |
| Input Connection | IEC 60320 C14 |
| Output Voltage | 230V AC single phase (220V, 240V configurable) |
| Output Frequency | 50/60 Hz ±3 Hz |
| Output Outlets | 4x IEC 60320 C13 |
| Waveform | Pure sine wave |
| Efficiency | 88% at full load |
| Harmonic Distortion | 3% |
| Crest Factor | 3:1 |
| Bypass Type | Internal bypass (automatic and manual) |
| Battery Type | Lead-acid (internal) |
| Battery Voltage | 48V |
| Battery Capacity | 367 VAh runtime |
| Battery Life | 3–5 years |
| Typical Recharge Time | 4 hours |
| Max Runtime | 3 minutes at full load |
| Control Panel | Multifunction LCD status and control console |
| Expansion Slot | 1 free slot for optional management card |
| Connectivity | Serial port, USB port |
| Surge Energy Rating | 945 J |
| Alarms | Battery alarm, low battery alarm, overload continuous tone alarm |
| Form Factor | 2U rackmount |
| Mounting | Rack-mounted with included rail kit |
| Physical Dimensions | 438mm (W) × 86mm (H) × 462mm (D) |
| Weight | 18.8 kg |
| Colour | Black (RAL 7010) |
| Operating Temperature | 0–40 °C |
| Storage Temperature | -20–50 °C |
| Operating Humidity | 0–95% non-condensing |
| Operating Altitude | 0–3000 m |
| Storage Altitude | 0–15000 m |
| Acoustic Level | 50 dBA |
| Heat Dissipation | 759 Btu/h |
| IP Rating | IP20 |
| Certifications | CE, UKCA, TISI |
| Standards | EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018 |
| Warranty | 24 months (UPS and internal battery) |
| Replacement Battery | APCRBCV201 |
| Compatible Management Cards | AP9544, SRVSMB001, VGL9601I |
Key Features
Ideal For
FAQs
What is the difference between online and offline UPS technology?
Online UPS (double-conversion) continuously converts AC mains power to DC and back to AC, providing constant pure sine wave output. This eliminates transfer time to battery power and protects sensitive equipment from voltage fluctuations. Offline UPS switches to battery only during outages. The APC Easy UPS is online, making it ideal for critical business systems.
How long will the battery support my equipment during a power outage?
The built-in lead-acid battery provides approximately 3 minutes of runtime at full load (1800W). Runtime decreases at higher loads. For extended runtime, external battery modules can be added via the APCRBCV201 replacement battery cartridge.
Can I monitor the UPS remotely?
Yes. The UPS has an intelligent card slot that accepts optional network management cards (AP9544, SRVSMB001, VGL9601I). Once installed, these cards enable remote monitoring and management through EcoStruxure IT or third-party centralised management platforms, giving IT teams real-time visibility.
What happens if the UPS detects an internal fault?
The Easy UPS features automatic and manual internal bypass. If an internal fault is detected, power automatically switches to bypass mode, ensuring seamless power delivery to connected equipment without interruption.
What is the warranty and what does it cover?
The APC Easy UPS includes a 24-month warranty covering both the UPS unit and the internal lead-acid battery. This provides peace of mind for business-critical deployments.
Is the rail kit included?
Yes, the rail kit for 19-inch standard racks is included. The UPS is ready to mount horizontally in a rack without additional purchases.
What input voltages does the UPS support?
The Easy UPS accepts input voltages from 110–285V at 40–70 Hz, and is configurable for 220V, 230V, or 240V nominal output. This wide input range provides protection against brownouts and voltage sags common in many Australian facilities.
How many devices can I connect to this UPS?
The Easy UPS provides 4x IEC 320 C13 outlets, supporting up to 4 devices at full load (1800W total). Ensure total connected load does not exceed 1800W for optimal battery runtime.
