APC Easy UPS 2000VA/1600W 4U Rackmount Online UPS
APC Easy UPS 2000VA/1600W 4U Rackmount Online UPS
SKU:UPAPC-SRV2KRILRK

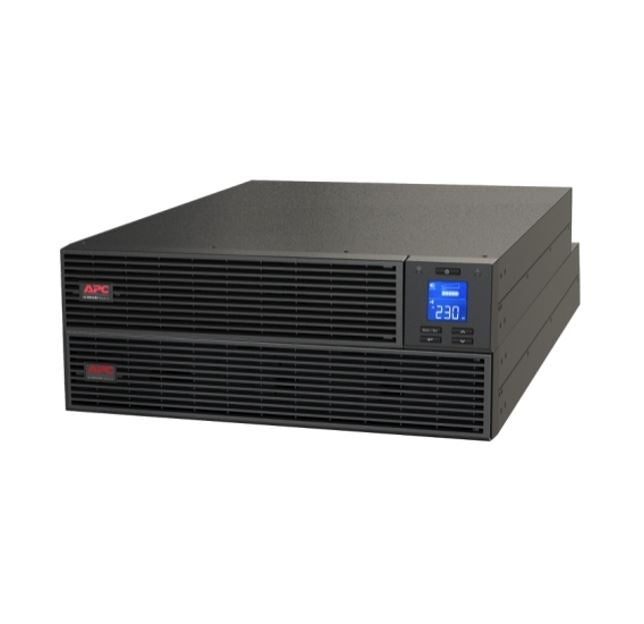

The APC Easy UPS SRV2KRILRK is a 2000VA/1600W double-conversion online UPS designed for IT professionals and network administrators. Featuring 4U rackmount form factor, pure sine wave output, and extended runtime capability, it delivers reliable power protection for critical business infrastructure.
Couldn't load pickup availability
- See our return policy
- 24 months Manufacturer Warranty
Product Information
| Brand | APC |
|---|---|
| Category | UPS & Power Board |
| SKU | UPAPC-SRV2KRILRK |
| Availability | Out of Stock |
Overview
- The APC Easy UPS SRV2KRILRK is a robust 2000VA/1600W double-conversion online UPS built for organisations that cannot afford downtime. As a true online UPS, it continuously converts incoming AC power through its inverter, providing consistent pure sine wave output and superior protection against power anomalies including surges, sags, and harmonics.
This 4U rackmount unit delivers 22 minutes and 17 seconds of runtime at full 1600W load, with options to extend runtime via the included external battery pack. The built-in automatic and manual bypass ensures seamless power delivery to connected equipment even if the UPS experiences an internal fault, maximising system availability.
Designed for IT professionals managing critical infrastructure, the SRV2KRILRK features four IEC C13 outlets, LCD display, and an Intelligent Card Slot for remote monitoring. It integrates with APC's EcoStruxure IT platform and third-party centralised management systems, enabling proactive power management across your infrastructure. The complete rail kit and mounting brackets allow quick, secure installation in standard 19-inch equipment racks.
Specifications
| Rated Power (VA) | 2000 VA |
|---|---|
| Rated Power (W) | 1600 W |
| Load Capacity | 160–1600 W |
| Input Voltage (Main) | 230 V |
| Input Voltage (Alternative) | 220 V, 240 V |
| Input Connection Type | IEC 60320 C14 |
| Output Voltage (Main) | 230 V |
| Output Voltage (Alternative) | 220 V, 240 V |
| Output Outlets | 4x IEC 60320 C13 |
| Runtime at Full Load (1600 W) | 22 minutes 17 seconds |
| Form Factor | 4U Rackmount |
| Mounting Mode | Rack mountable |
| Operating Temperature | 0–40 °C |
| Operating Relative Humidity | 0–95 % non-condensing |
| Operating Altitude | 0–3000 m |
| Storage Temperature | -20–50 °C |
| Storage Relative Humidity | 0–95 % non-condensing |
| Storage Altitude | 0–15000 m |
| Acoustic Level | 50 dBA |
| Heat Dissipation | 745 Btu/h |
| Degree of Protection | IP20 |
| Included Accessories | Rail kit, mounting brackets, external battery pack, IEC C13 to Schuko cable, IEC C19 to C14 cable, USB cable, RS-232 configuration cable |
| Replacement Battery | SRV72RLBP-9A |
| Compatible Network Management Cards | AP9544, SRVSMB001, VGL9901I |
| Warranty | 24 months |
Key Features
Ideal For
FAQs
What is the difference between online and offline UPS?
The APC Easy UPS is a double-conversion online UPS, meaning it continuously converts incoming AC power to DC and back to AC through its inverter. This provides consistent pure sine wave output and superior protection against power quality issues. Offline UPS systems only activate backup power when mains voltage fails, leaving a brief gap during which connected equipment experiences voltage anomalies.
How long will the UPS run on battery at full load?
At maximum load of 1600W, the SRV2KRILRK provides approximately 22 minutes and 17 seconds of runtime. Runtime extends significantly at lighter loads. The included external battery pack can extend total runtime further for applications requiring extended backup power.
Can this UPS be remotely monitored and managed?
Yes. The SRV2KRILRK features an Intelligent Card Slot and LCD display for local monitoring. It integrates with APC's EcoStruxure IT platform and supports third-party centralised management systems via compatible network management cards (AP9544, SRVSMB001, VGL9901I), enabling remote monitoring and shutdown capabilities.
Is the UPS suitable for my server rack?
The SRV2KRILRK is designed for standard 19-inch equipment racks. It occupies 4U of vertical space and includes rail kit and mounting brackets for secure installation. Verify available rack space and vertical clearance before installation.
What happens if the UPS develops a fault during operation?
The SRV2KRILRK features both automatic and manual bypass functionality. In the event of an internal detected fault or error, bypass mode seamlessly transfers power directly to the load, ensuring continuous operation while the UPS can be serviced or replaced.
What input and output voltage options are available?
The UPS accepts input voltage of 230V (primary), 220V, or 240V from a single-phase supply via IEC C14 connector. Output voltage matches input, maintaining 230V (primary), 220V, or 240V to four IEC C13 outlets.
What is included with the UPS?
The SRV2KRILRK includes the UPS unit, external battery pack, rail kit with mounting brackets, IEC power cables (C13 to Schuko and C19 to C14), USB cable for local management, and RS-232 configuration cable. A 24-month warranty is provided.
