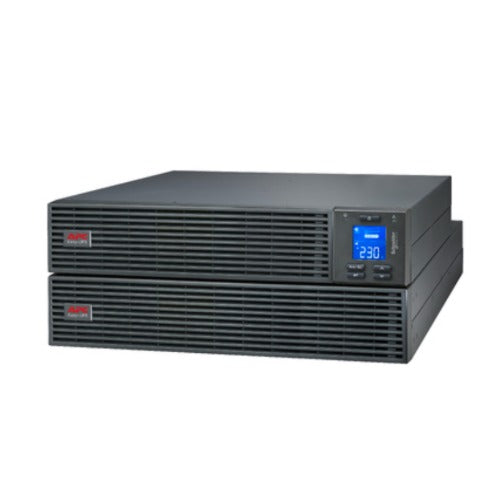

APC Easy UPS 2000VA/1800W Online UPS 4U Rackmount
APC Easy UPS 2000VA/1800W Online UPS 4U Rackmount
SKU:UPAPC-SRV2KRILRK-E
The APC Easy UPS 2000VA/1800W is a double-conversion online UPS designed for data centres, server rooms, and network infrastructure. Featuring 4U rackmount form factor, pure sine wave output, and extended runtime capability, it delivers reliable power protection for critical business operations.
Couldn't load pickup availability
- See our return policy
- 24 months Manufacturer Warranty
Product Information
| Brand | APC |
|---|---|
| Category | UPS & Power Board |
| SKU | UPAPC-SRV2KRILRK-E |
| Availability | Out of Stock |
Overview
- The APC Easy UPS 2000VA/1800W is a professional-grade double-conversion online UPS designed to maintain business continuity during power disruptions. This 4U rackmount unit delivers pure sine wave power conditioning and genuine 2000VA capacity, making it suitable for protecting critical infrastructure including servers, network devices, and storage systems across small data centres and enterprise environments.
The unit features seamless automatic and manual bypass functionality, ensuring uninterrupted power delivery even if internal faults are detected. With an external battery pack included as standard, the UPS provides extended runtime to safely shut down systems or transfer to backup power during extended outages. The 22-minute runtime at full 1600W load provides sufficient time for orderly shutdown or failover procedures.
Intelligent management capabilities are built in, with support for EcoStruxure IT and third-party centralised monitoring platforms via the intelligent card slot. This enables remote power management, status alerts, and integration with existing network operations infrastructure. The included rail kit simplifies data centre installation, whilst the LCD display provides local status visibility and operational transparency.
Specifications
| Rated Power (VA) | 2000 VA |
|---|---|
| Rated Power (W) | 1800 W |
| Input Voltage (Main) | 230 V |
| Input Voltage (Alternative) | 220 V, 240 V |
| Input Connection Type | IEC 60320 C14 |
| Output Voltage (Main) | 230 V |
| Output Voltage (Alternative) | 220 V, 240 V |
| Output Connection Type | 4x IEC 60320 C13 |
| Output Outlets | 4x IEC C13 |
| Load Range | 160 W to 1800 W |
| Maximum Capacity Used | 100% |
| Runtime at Full Load (1600 W) | 22 minutes 17 seconds |
| Form Factor | 4U Rackmount |
| Mounting Mode | Rack mountable |
| Number of Rack Units | 4U |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 0% to 95% non-condensing |
| Operating Altitude | 0 m to 3000 m |
| Storage Temperature | -20°C to 50°C |
| Storage Humidity | 0% to 95% non-condensing |
| Storage Altitude | 0 m to 15000 m |
| Acoustic Level | 50 dBA |
| Heat Dissipation | 745 Btu/h |
| IP Rating | IP20 |
| Battery Type | Lead Acid |
| External Battery Pack | Included |
| Included Accessories | 1x IEC C13 to Schuko cable, 1x IEC C19 to C14 cable, 1x USB cable, 1x RS-232 configuration cable, 2x rack mounting brackets, 2x rack mounting support rails, 1x external battery pack, 1x battery cable |
| Compatible Network Management Card | AP9544, SRVSMB001, VGL9901I |
| Replacement Battery | SRV72RLBP-9A |
| Compatible Mounting Kit | SRVRK1 |
| Warranty | 24 months |
Key Features
Ideal For
FAQs
What runtime can I expect from the APC Easy UPS 2000VA at full load?
At full load (1600W), the APC Easy UPS provides approximately 22 minutes of runtime. This is sufficient time to safely shut down connected systems or transfer to backup power during an outage. Extended runtime is available by adding compatible external battery packs.
Is this UPS suitable for data centre installation?
Yes. The 4U rackmount form factor with included rail kit makes it ideal for standard server rack installation. It supports multiple servers, network devices, and storage systems typical of small to medium data centre environments.
Can I monitor and manage this UPS remotely?
Yes. The intelligent card slot supports EcoStruxure IT and third-party centralised management platforms, enabling remote monitoring, alerts, and power management integration with your network operations infrastructure.
What output power protection does this UPS provide?
The APC Easy UPS delivers pure sine wave output, providing clean, regulated power suitable for protecting sensitive electronics including servers, network switches, and storage devices. It conditions input voltage variations and provides protection during power interruptions.
What happens if an internal fault is detected?
The UPS features built-in automatic bypass functionality, which seamlessly transfers the load to utility power if an internal fault is detected. This ensures continuous power delivery to connected equipment without interruption.
What cables and accessories are included?
The package includes power cables (IEC C13 to Schuko and IEC C19 to C14), USB and RS-232 configuration cables, rack mounting brackets and rails, an external battery pack, and a battery interconnect cable. All necessary components for installation and operation are supplied.
Can I expand the runtime with additional batteries?
Yes. External battery packs such as the SRV72RLBP-9A are available separately to extend runtime. Consult compatibility information or contact Hyetech Australia for details on compatible battery expansion options.
What input voltage does this UPS accept?
The UPS accepts 230V as the primary input with compatibility for 220V and 240V variants, supporting standard Australian and international power supplies. It draws 10A maximum at standard input voltage.
