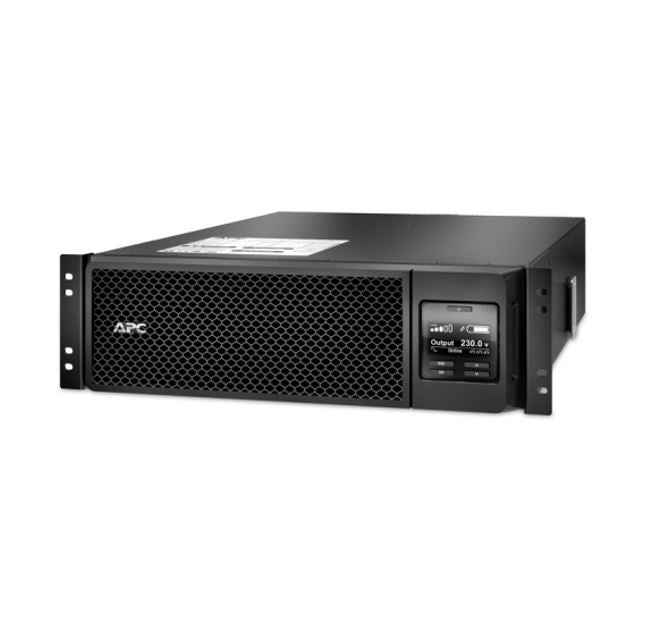

APC Smart-UPS SRT5KRMXLI 5000VA Online UPS 3U Rackmount
APC Smart-UPS SRT5KRMXLI 5000VA Online UPS 3U Rackmount
SKU:UPAPCSRT5KRMXLI
The APC Smart-UPS SRT5KRMXLI is a 5000VA/4500W double-conversion online UPS designed for mission-critical IT infrastructure. Featuring rackmount 3U form factor, 10 IEC outlets, network card integration, and SmartSlot connectivity, it delivers true sine wave power protection for network administrators and data centre environments.
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | APC |
|---|---|
| Category | UPS & Power Board |
| SKU | UPAPCSRT5KRMXLI |
| Availability | In Stock |
Overview
- The APC Smart-UPS SRT5KRMXLI is a 5000VA/4500W online uninterruptible power supply built for demanding IT environments. True double-conversion technology ensures zero-transfer-time to battery, delivering pure sine wave output that protects sensitive equipment from power fluctuations, sags, and outages. The 3U rackmount design fits standard 19-inch server cabinets, maximising space efficiency whilst providing 10 IEC outlets to support diverse hardware configurations.
Designed for network administrators and IT professionals, this UPS combines high-density power protection with advanced management features. The integrated network card enables remote monitoring and control, whilst SmartSlot support allows connectivity expansion. PowerChute Network Shutdown integration enables graceful system shutdown during extended outages, protecting data integrity and equipment.
With a wide input voltage window of 100–275V and automatic frequency sensing (40–70 Hz), the Smart-UPS operates reliably across variable power conditions common in Australian facilities. Lead-acid battery technology provides extended runtime, whilst tight output voltage regulation and internal bypass features ensure stable power delivery to critical systems.
Specifications
| Brand | APC |
|---|---|
| Model | SRT5KRMXLI |
| Product Type | Online Double-Conversion UPS |
| Form Factor | 3U Rackmount |
| Rated Power (VA) | 5000 VA |
| Rated Power (W) | 4500 W |
| Main Input Voltage | 230 V |
| Alternative Input Voltage | 220 V, 240 V |
| Input Voltage Range | 100–275 V adjustable at half load |
| Input Frequency | 40–70 Hz auto-sensing |
| Number of Input Connectors | 1 hardwire 3-wire (1P + N + E) |
| Main Output Voltage | 230 V |
| Alternative Output Voltage | 220 V, 240 V |
| Output Connection Type | 6x IEC 60320 C13, 4x IEC 60320 C19, 2x IEC Jumpers |
| Battery Type | Lead-acid |
| Replacement Battery Model | APCRBC140 |
| Compatible Battery | SRT192RMB |
| Network Management Card | Web/SNMP management card included |
| SmartSlot | Yes, for connectivity expansion |
| PowerChute Network Shutdown | Supported |
| Operating Temperature | 0–40 °C |
| Operating Humidity | 0–95% non-condensing |
| Operating Altitude | 0–10000 ft |
| Storage Temperature | -15–45 °C |
| Storage Humidity | 0–95% non-condensing |
| Storage Altitude | 0–15240 m |
| Acoustic Level | 55 dBA |
| Heat Dissipation | 931 BTU/h |
| IP Protection Rating | IP20 |
| Included Accessories | Documentation CD, installation guide, rack mounting hardware, brackets, support rails, temperature probe, warranty card, management card |
| Compatible Wireless Adapter | AP9834 |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
What does 'double-conversion online' UPS technology mean?
Double-conversion online technology converts incoming AC power to DC, then back to AC, continuously. This provides zero-transfer-time to battery during power failures, ensuring uninterrupted power to connected equipment without any momentary interruption.
What is the difference between C13 and C19 outlets?
IEC C13 outlets are standard 10A connectors used for most IT equipment such as monitors, PCs, and switches. IEC C19 outlets are 16A connectors designed for higher-power devices like servers and server power supplies. This UPS includes both types for flexible equipment connection.
How do I manage this UPS remotely?
The integrated Web/SNMP management card enables remote monitoring and control via network connection. PowerChute Network Shutdown software allows graceful unattended shutdown. The SmartSlot supports additional connectivity options for expanded management capabilities.
What battery does this UPS use, and how long does it last?
The Smart-UPS uses lead-acid batteries (replacement model APCRBC140). Runtime depends on load; the product supports extended runtime configurations. Refer to APC load tables or contact our team for specific runtime estimates based on your power requirements.
Is this UPS suitable for Australian power standards?
Yes. The UPS supports 230V input (standard Australian supply) and alternative 220V/240V inputs. It has a wide input voltage range (100–275V) and auto-sensing frequency (40–70 Hz), making it suitable for variable Australian power conditions.
What comes with the UPS?
Included accessories are documentation CD, installation guide, rack mounting hardware, brackets, support rails, temperature probe, warranty card, and integrated Web/SNMP management card. Rails are included for 19-inch cabinet mounting.
Can I expand the runtime of this UPS?
Yes. The product is designed for extended runtime capability using compatible batteries (SRT192RMB). Contact us for battery expansion options and to calculate runtime requirements for your specific installation.
What warranty does this UPS include?
The APC Smart-UPS SRT5KRMXLI includes a 36-month manufacturer warranty. Warranty card and documentation are provided in the package.
