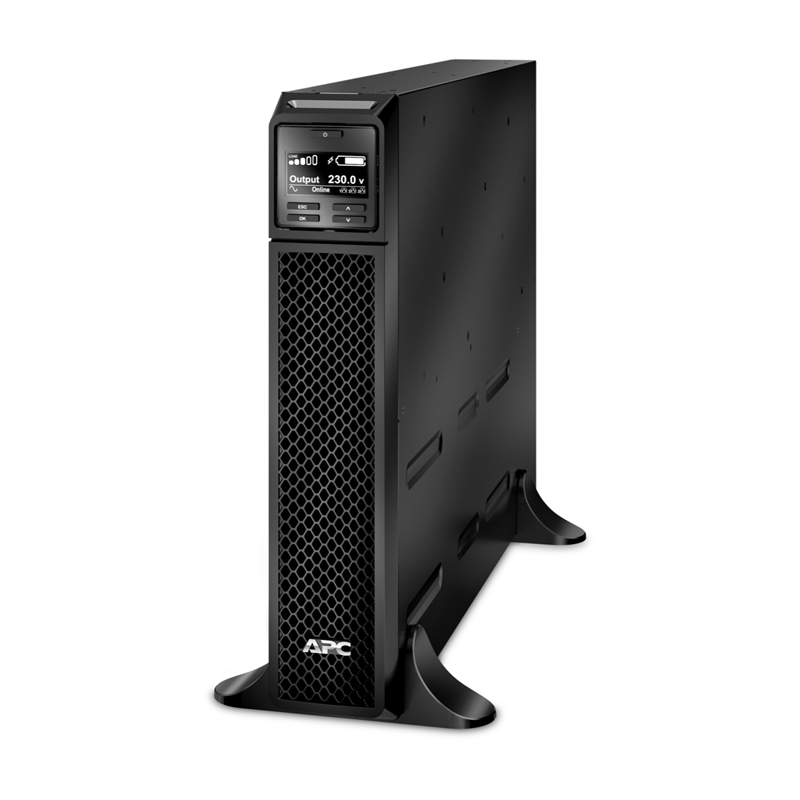

APC Smart-UPS 2200VA/1980W Online UPS Tower
APC Smart-UPS 2200VA/1980W Online UPS Tower
SKU:UPAPCSRT2200XLI
The APC Smart-UPS SRT2200XLI is a 2200VA/1980W online UPS designed for servers, networks, and critical infrastructure. Featuring true double-conversion technology, 10 IEC outlets, and extended runtime capability, it delivers reliable power protection for IT professionals and business operations.
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | APC |
|---|---|
| Category | UPS & Power Board |
| SKU | UPAPCSRT2200XLI |
| Availability | Out of Stock |
Overview
- The APC Smart-UPS SRT2200XLI is a professional-grade 2200VA online UPS system built for organisations that cannot afford downtime. Unlike standby UPS units, this true double-conversion design continuously regulates power, providing pure sine wave output and complete protection against voltage fluctuations, frequency variations, and power anomalies.
With 10 mixed IEC outlets (8x C13 and 2x C19), the unit accommodates diverse equipment loads simultaneously. The SmartSlot interface enables integration of network management cards for remote monitoring, battery status alerts, and graceful shutdown capabilities across your infrastructure.
Designed for scalability, the SRT2200XLI supports external battery modules for extended runtime during prolonged outages—essential for mission-critical applications. Internal bypass circuitry ensures seamless operation even during maintenance, while power factor correction optimises energy efficiency.
Its compact tower design fits standard office and server room spaces. Optional rack-mount kits are available for installations requiring integrated rack configurations. CE, RCM, and EAC certifications confirm compliance with Australian and international safety standards.
Specifications
| Rated Power (VA) | 2200 VA |
|---|---|
| Rated Power (W) | 1980 W |
| Input Voltage (Main) | 230 V |
| Input Voltage (Range) | 220 V – 240 V |
| Output Voltage (Main) | 230 V |
| Output Voltage (Range) | 220 V – 240 V |
| Input Connection Type | BS1363A British, IEC 60320 C20, Schuko CEE 7/EU1-16P |
| Output Outlets | 8x IEC 60320 C13, 2x IEC 60320 C19 |
| Output Waveform | Pure sine wave |
| Battery Type | Lead acid |
| Battery Module | APCRBC141 (replacement) |
| Operating Temperature | 0 °C to 40 °C |
| Operating Humidity | 0% to 95% non-condensing |
| Operating Altitude | 0 to 10,000 ft |
| Storage Temperature | -15 °C to 45 °C |
| Storage Humidity | 0% to 95% non-condensing |
| Storage Altitude | 0 to 15,240 m |
| Acoustic Level | 55 dBA |
| Heat Dissipation | 703 BTU/h |
| IP Rating | IP20 |
| Input Cable Length | 2.44 m |
| Input Cables Supplied | 1 |
| Form Factor | Tower (convertible to rack mount with optional kit) |
| SmartSlot | Yes (for management cards and sensors) |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
What is the difference between online and standby UPS?
Online UPS units, like the SRT2200XLI, use true double-conversion technology. They continuously convert incoming AC power to DC, then back to clean AC output, providing constant voltage and frequency regulation. This protects equipment from voltage sag, surge, and frequency variations without any switching delay. Standby units only activate when power fails. Online UPS is ideal for sensitive equipment and critical applications.
Can this UPS support extended runtime?
Yes. The SRT2200XLI is compatible with external battery modules (sold separately), allowing you to extend runtime for prolonged power outages. This modularity makes it suitable for environments where brief backup is insufficient.
Is the SRT2200XLI suitable for Australian 230V supply?
Absolutely. The unit is rated for 230V main input and accepts 220–240V, covering the full Australian mains voltage range. It includes Australian-compatible connectors and complies with RCM and Australian safety standards.
What management and monitoring options are available?
The SmartSlot interface supports network management cards (such as AP9613, AP9620, AP9640, AP9641, AP9643, AP9810) for remote monitoring, alerts, and controlled shutdown. Environmental sensors (AP9335T, AP9335TH) can also be integrated for temperature and humidity monitoring.
What outlets does the SRT2200XLI provide?
The unit has 10 IEC outlets: 8x IEC C13 (standard computer power) and 2x IEC C19 (high-current devices like servers and PDUs). This mix accommodates diverse equipment on a single UPS.
Can the SRT2200XLI be mounted in a rack?
The unit ships in tower format and does not include a rack-mount kit. Optional SRTRK3 or SRTRK4 rail kits (sold separately) enable rack installation. Contact support for compatibility advice.
What is the warranty and support?
The SRT2200XLI includes a 3-year manufacturer warranty covering defects in materials and workmanship. Replacement battery modules and management cards are available separately to extend service life.
What certifications does this UPS hold?
The unit complies with CE Mark, EAC, RCM (Australian), VDE, and international standards EN/IEC 62040-1 and EN/IEC 62040-2. These ensure safety, electromagnetic compatibility, and performance across Australia and Europe.
