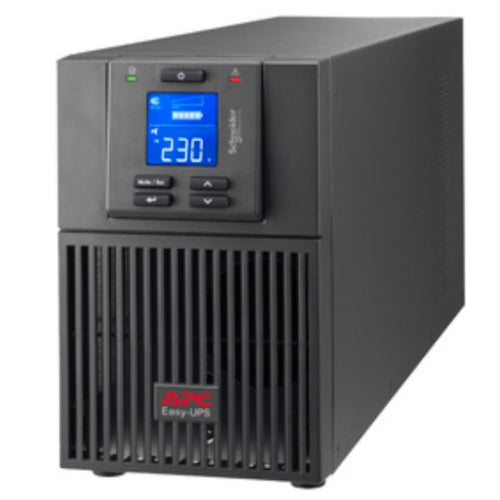

APC Easy UPS SRV1KI-E 1000VA Online UPS Tower
APC Easy UPS SRV1KI-E 1000VA Online UPS Tower
SKU:UPAPC-SRV1KI-E
The APC Easy UPS SRV1KI-E is a 1000VA/900W double-conversion online UPS designed for IT professionals and network administrators. Featuring pure sine wave output, three IEC C13 outlets, and intelligent card slot support, it delivers reliable backup power for critical business infrastructure.
Couldn't load pickup availability
- See our return policy
- 24 months Manufacturer Warranty
Product Information
| Brand | APC |
|---|---|
| Category | UPS & Power Board |
| SKU | UPAPC-SRV1KI-E |
| Availability | In Stock |
Overview
- The APC Easy UPS SRV1KI-E is a professional-grade double-conversion online UPS system designed to protect critical business infrastructure from power disruptions. With 1000VA/900W capacity and pure sine wave output, it provides clean, reliable power to sensitive electronics including servers, network equipment, and storage devices.
This tower UPS features three IEC C13 outlets and an intelligent card slot, enabling integration with EcoStruxure IT or third-party centralised management platforms for remote monitoring and control. The built-in automatic and manual bypass ensures seamless power delivery even if an internal fault is detected, maintaining business continuity during critical situations.
With a run time of approximately 3 minutes 49 seconds at full load, it provides sufficient time for graceful system shutdown or failover to alternative power sources. The unit operates across a wide input voltage range (110–285V at half load, 160–280V at full load) with auto-sensing frequency detection, making it suitable for Australian power environments.
Ideal for small data centres, manufacturing facilities, computer rooms, telecommunications infrastructure, and healthcare IT environments, the SRV1KI-E combines reliability, intelligent monitoring, and flexible connectivity in a compact tower design.
Specifications
| Rated Power (VA) | 1000 VA |
|---|---|
| Rated Power (W) | 900 W |
| Load Capacity Range | 80–900 W |
| Run Time at Full Load | 3 minutes 49 seconds |
| Input Voltage (Nominal) | 230 V |
| Input Voltage Range (Half Load) | 110–285 V |
| Input Voltage Range (Full Load) | 160–280 V |
| Input Voltage (Alternative) | 220 V, 240 V |
| Input Connection | IEC 60320 C14 |
| Input Frequency | 40–70 Hz (auto-sensing) |
| Output Voltage (Nominal) | 230 V |
| Output Voltage (Alternative) | 220 V, 240 V |
| Output Connections | 3x IEC 60320 C13 |
| Battery Type | Lead Acid |
| Replacement Battery | APC RBCV203 |
| Form Factor | Tower |
| Rack Mountable | No |
| Operating Temperature | 0–40 °C |
| Storage Temperature | -20–50 °C |
| Operating Humidity | 0–95% (non-condensing) |
| Storage Humidity | 0–95% (non-condensing) |
| Operating Altitude | 0–3000 m |
| Storage Altitude | 0–15000 m |
| Acoustic Level | 50 dBA |
| Heat Dissipation | 372 Btu/h |
| IP Protection Rating | IP20 |
| Input Cable Length | 1.50 m |
| Input Cables Included | 1 |
| Included Accessories | IEC C13 to Schuko power cable, IEC C13 to C14 power cable, USB cable, RS-232 configuration cable, user manual |
| Compatible Network Management Cards | AP9544, SRVSMB001, VGL9901I |
| Warranty Period | 24 months |
Key Features
Ideal For
FAQs
What is the difference between online and standby UPS systems?
Online UPS (like the SRV1KI-E) uses double-conversion technology, continuously powering equipment from its battery/inverter while charging from mains—this ensures zero switchover time and pure sine wave output. Standby UPS switches to battery power only when mains fails, resulting in brief switchover delay. Online UPS is preferred for sensitive IT equipment requiring constant clean power.
How long will the UPS keep my equipment running?
At full 900W load, the SRV1KI-E provides approximately 3 minutes 49 seconds of runtime. This is typically sufficient for graceful system shutdown, failover to alternative power, or notification to users. Runtime depends on actual load; lower power draws extend runtime.
Can I monitor the UPS remotely?
Yes. The SRV1KI-E features an intelligent card slot and is compatible with APC's EcoStruxure IT platform, as well as third-party centralised management systems. You can also connect via USB or RS-232 for local configuration and monitoring.
What is the automatic bypass feature?
The automatic bypass ensures seamless power delivery to connected equipment even if an internal UPS fault is detected. This maintains uptime while the UPS automatically manages the error, protecting your critical systems.
Is the SRV1KI-E rack mountable?
No, the SRV1KI-E is a tower form factor unit designed for floor or shelf placement. APC offers rack-mountable online UPS models if you require rack installation.
What input voltages does this UPS support?
The SRV1KI-E accepts 220–240V (Australian standard), with a wide operating range of 160–280V at full load. It features auto-sensing frequency detection (40–70 Hz) and operates across Australian power environments.
How do I replace the battery?
The SRV1KI-E uses APC RBCV203 replacement battery cartridges. Consult the user manual for safe battery replacement procedures, or contact your IT support provider.
What is included in the box?
The package includes the UPS unit, one IEC C13 to Schuko power cable, one IEC C13 to C14 cable, USB cable, RS-232 configuration cable, and user manual. Input cable length is 1.5 metres.
