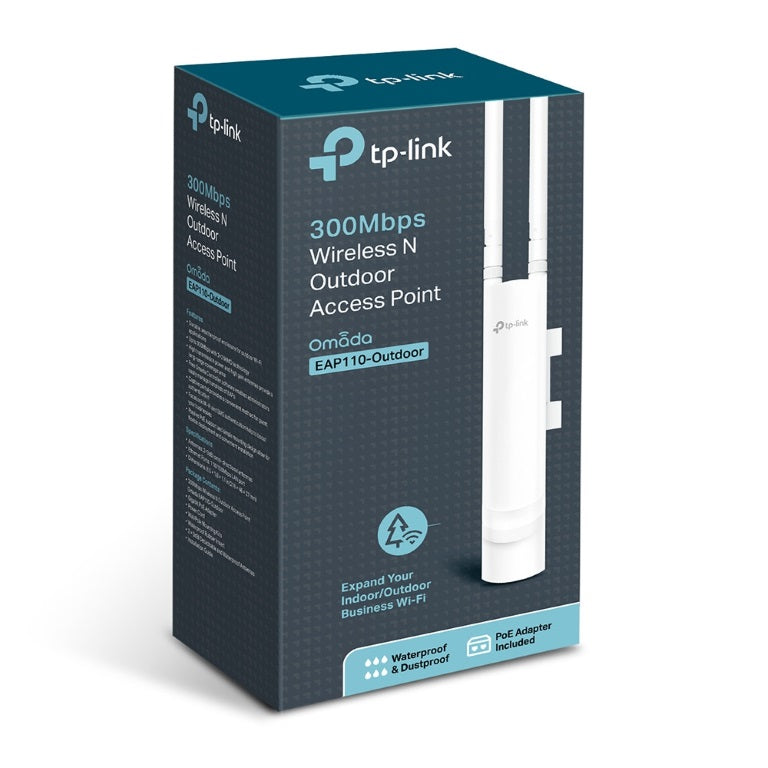

TP-Link EAP110-Outdoor 300Mbps Wireless Access Point
TP-Link EAP110-Outdoor 300Mbps Wireless Access Point
SKU:NWTL-EAP110-OUTDOOR
The TP-Link EAP110-Outdoor is a rugged wireless access point designed for outdoor Wi-Fi coverage. Featuring 300Mbps 802.11n connectivity, weatherproof construction, passive PoE support, and dual 5dBi antennas, it delivers reliable long-range coverage for outdoor business deployments.
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | TP-LINK |
|---|---|
| Category | Network - SMB |
| SKU | NWTL-EAP110-OUTDOOR |
| Availability | In Stock |
Overview
- The TP-Link EAP110-Outdoor is a purpose-built wireless access point for outdoor environments where standard indoor equipment cannot survive. Its durable, weatherproof enclosure withstands exposure to sun, rain, and temperature extremes, making it ideal for gardens, patios, parking areas, and external building facades.
With 300Mbps throughput and dual high-gain antennas, the EAP110-Outdoor delivers strong signal propagation across large outdoor areas. Passive PoE power delivery eliminates the need for separate power infrastructure, simplifying installation and reducing cabling complexity. The included pole and wall mounting kits provide flexible deployment options suited to various outdoor environments.
Management is straightforward through the free Auranet Controller Software, which allows IT teams to centrally manage multiple access points, configure up to 8 SSIDs with different security policies, and implement guest access through captive portal authentication. Advanced features including QoS, load balancing, and 802.1X support make it suitable for business-critical outdoor connectivity.
Specifications
| Wireless Standard | IEEE 802.11n/g/b |
|---|---|
| Frequency Band | 2.4 GHz |
| Maximum Data Rate | 300 Mbps (802.11n) |
| Transmit Power | CE: <20 dBm, FCC: <27 dBm |
| Antenna Type | 2x 5 dBi external omnidirectional, waterproof |
| Network Interface | 1x Fast Ethernet RJ-45 (Passive PoE support) |
| Power Supply | 24V DC / 0.6A Passive PoE |
| Power Consumption | 6.3 W |
| Dimensions | 209 x 95 x 42.6 mm (W x D x H) |
| Mounting Options | Pole and wall mount (kits included) |
| Number of SSIDs | Up to 8 |
| Security Protocols | WEP 64/128/152-bit, WPA, WPA2-Enterprise, WPA-PSK, WPA2-PSK, 802.1X, MAC filtering |
| Management Features | Captive portal, access control, QoS (WMM), load balancing, rate limiting, wireless scheduling, rogue AP detection, SSID to VLAN mapping |
| Management Software | Free Auranet Controller Software |
| Warranty | 36 months |
| Watchdog | Yes |
Key Features
Ideal For
FAQs
What does 'Passive PoE' mean and why is it important?
Passive PoE delivers power through standard Ethernet cabling without requiring a special PoE injector or switch. This simplifies installation in outdoor locations by allowing a single cable to carry both power and data, reducing the need for additional electrical infrastructure.
Can the EAP110-Outdoor be mounted on a pole or wall?
Yes. The access point includes mounting kits for both pole and wall installation, providing flexibility to adapt to different outdoor deployment scenarios such as buildings, lamp posts, or fence lines.
Is the EAP110-Outdoor truly waterproof?
Yes. The unit features a durable, weatherproof enclosure designed to withstand rain, sun exposure, and temperature fluctuations. The external antennas are also waterproof rated.
How is the EAP110-Outdoor managed alongside other access points?
TP-Link provides free Auranet Controller Software, which enables centralised management of multiple EAP access points. This allows administrators to configure settings, monitor performance, and manage guest access across all connected units from a single interface.
What security options are available for guest networks?
The EAP110-Outdoor supports captive portal authentication for guest access, VLAN mapping for network segmentation, WPA2-PSK encryption, MAC address filtering, and 802.1X enterprise authentication for secure deployments.
What is the coverage range of the EAP110-Outdoor?
Coverage depends on environmental factors and outdoor obstacles. The dual 5dBi antennas and high transmission power provide extended range suitable for large outdoor areas, though exact coverage will vary based on terrain and building materials.
Does the EAP110-Outdoor support multiple SSIDs?
Yes. The access point supports up to 8 SSIDs, allowing you to create separate networks for different user groups (e.g., staff, guests, operations) with individual security policies and bandwidth controls.
