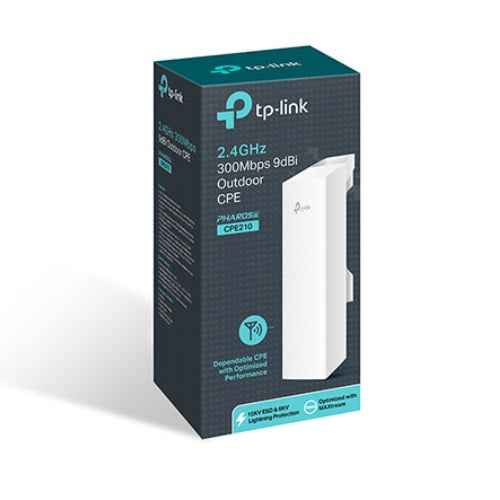

TP-Link CPE210 2.4GHz 300Mbps Outdoor Wireless Access Point
TP-Link CPE210 2.4GHz 300Mbps Outdoor Wireless Access Point
SKU:NWTL-CPE210
The TP-Link CPE210 is an outdoor wireless access point designed for long-range point-to-multipoint connectivity. Featuring a 9dBi directional antenna, 300Mbps throughput, and passive PoE power delivery, it delivers reliable network coverage for rural, industrial, and campus deployments.
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | TP-LINK |
|---|---|
| Category | Network - Consumer |
| SKU | NWTL-CPE210 |
| Availability | In Stock |
Overview
- The TP-Link CPE210 is a rugged outdoor access point engineered for long-range wireless connectivity in challenging environments. Its 9dBi directional antenna and Pharos MAXtream TDMA technology provide focused, high-performance coverage ideal for point-to-multipoint applications across rural properties, industrial sites, and campus networks.
With passive PoE power delivery, the CPE210 simplifies deployment by allowing single-cable installation up to 60 metres, reducing infrastructure costs and installation complexity. The device supports multiple operation modes—AP, Client, Bridge, Repeater, and WISP configurations—making it adaptable to diverse network topologies.
Built to withstand harsh outdoor conditions, the CPE210 features IPX5 waterproof rating and comprehensive surge protection (15kV ESD, 6kV lightning), ensuring reliable operation in exposed locations. Centralised management through Pharos Control streamlines network administration for distributed deployments.
Specifications
| wireless_standard | IEEE 802.11b/g/n (up to 300Mbps with Pharos MAXtream TDMA) |
|---|---|
| frequency_band | 2.4–2.483 GHz |
| wireless_speed | Up to 300Mbps (40MHz), 144.4Mbps (20MHz), 72.2Mbps (10MHz), 36.1Mbps (5MHz) |
| antenna | Built-in 9dBi 2x2 dual-polarized directional MIMO antenna |
| antenna_beam_width | 65° H-Plane / 35° E-Plane |
| transmission_power | 0–27dBm (500mW) adjustable |
| coverage_range | Up to 5km |
| processor | Qualcomm Atheros 560MHz CPU, MIPS 74Kc |
| memory_ram | 64MB DDR2 |
| memory_flash | 8MB |
| ethernet_ports | 2x 10/100Mbps shielded ports (LAN0 Passive PoE in; LAN1 Passive PoE passthrough) |
| power_delivery | Passive PoE via LAN0 (pins +4,5 / −7,8) |
| voltage_range | 16–27VDC |
| power_consumption | 10.5W maximum |
| poe_cable_length | Up to 60 metres |
| reset_button | Yes |
| grounding_terminal | Yes |
| dimensions | 224 × 79 × 60 mm (W × D × H) |
| enclosure_material | Outdoor ASA stabilised plastic |
| waterproof_rating | IPX5 |
| esd_protection | 15kV |
| lightning_protection | 6kV |
| operation_modes | AP, Client, Bridge, Repeater, AP Router, WISP Client Router |
| management | Pharos Control centralised management |
| warranty | 36 months |
Key Features
Ideal For
FAQs
What is the maximum wireless range of the TP-Link CPE210?
The CPE210 is designed for long-range transmission up to 5km. Actual range depends on environmental conditions, antenna orientation, and RF interference. The 9dBi directional antenna provides focused coverage ideal for point-to-multipoint deployments.
How is the CPE210 powered in outdoor installations?
The CPE210 uses passive Power over Ethernet (PoE) via the LAN0 port. A passive PoE adapter provides power over standard Ethernet cable up to 60 metres, eliminating the need for separate power cabling or outlets.
Can the CPE210 work as a WiFi repeater?
Yes. The CPE210 supports multiple operation modes including Repeater, allowing it to extend existing WiFi networks. It also supports Bridge, AP, Client, AP Router, and WISP Client Router modes for flexible network configurations.
Is the CPE210 suitable for outdoor use in wet or harsh conditions?
Yes. The CPE210 features IPX5 waterproof rating and is constructed from outdoor-grade ASA stabilised plastic. It includes 15kV ESD protection and 6kV lightning protection, making it suitable for exposed installations.
What is TP-Link Pharos MAXtream TDMA and why does it matter?
Pharos MAXtream is TP-Link's proprietary TDMA (Time-Division Multiple Access) technology that optimises performance in point-to-multipoint networks. It improves throughput, capacity, and latency compared to standard 802.11 mode, particularly beneficial for multiple client connections.
How is the CPE210 managed and configured?
The CPE210 integrates with TP-Link's Pharos Control centralised management system, allowing remote configuration, monitoring, and firmware updates across multiple devices. This simplifies administration in distributed network deployments.
What are the power consumption requirements?
Maximum power consumption is 10.5 watts. The passive PoE input voltage range is 16–27VDC. Note that actual power draw from the source varies depending on cable length in passive PoE deployments.
