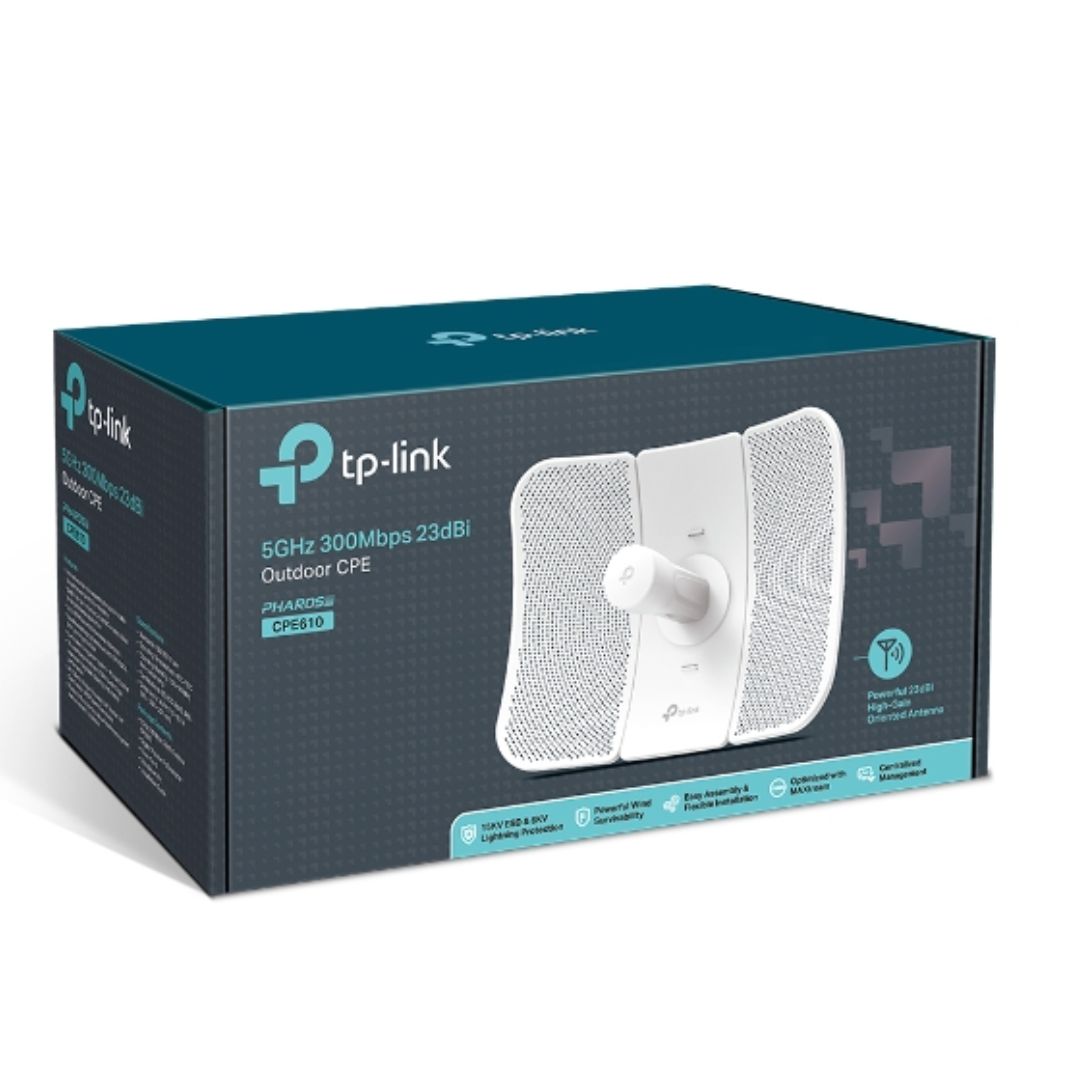

TP-Link CPE610 5GHz 300Mbps Outdoor Wireless CPE
TP-Link CPE610 5GHz 300Mbps Outdoor Wireless CPE
SKU:NWTL-CPE610
The TP-Link CPE610 is a 5GHz outdoor wireless CPE designed for long-distance point-to-point and point-to-multipoint deployments. Featuring a 23dBi high-gain MIMO antenna, 300Mbps data rates, and IP65 weatherproofing, it delivers reliable connectivity for remote sites and wireless bridges.
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | TP-LINK |
|---|---|
| Category | Network - Consumer |
| SKU | NWTL-CPE610 |
| Availability | In Stock |
Overview
- The TP-Link CPE610 is a professional-grade outdoor wireless CPE engineered for reliable long-distance connectivity in demanding environments. Its 23dBi directional antenna and narrow 9° beamwidth deliver excellent gain and signal focus, making it ideal for point-to-point bridges and WISP applications where distance and accuracy matter. The device supports multiple operating modes—AP, Client, Bridge, Repeater, and AP Router—allowing flexible network topology and deployment scenarios.
Built for Australian weather, the CPE610 combines IP65 weatherproofing with comprehensive surge protection (15kV ESD, 6kV lightning) to ensure year-round reliability. Passive PoE support eliminates the need for separate power infrastructure, simplifying installation on poles, rooftops, and remote locations. TP-Link's Pharos MAXtream TDMA technology optimises throughput and latency across multiple devices, whilst the free Pharos Control management suite provides centralised administration across your wireless estate.
With 300Mbps 5GHz performance, a Qualcomm 560MHz processor, and sturdy metal reflector design, the CPE610 is built to perform in challenging conditions where consumer-grade equipment would falter. Whether bridging network gaps, extending coverage, or building wireless backhaul infrastructure, the CPE610 offers the range, durability, and management features enterprise deployments require.
Specifications
| Wireless Standard | IEEE 802.11a/n |
|---|---|
| Frequency Band | 5.15–5.85 GHz |
| Wireless Speed (40MHz) | Up to 300 Mbps |
| Wireless Speed (20MHz) | Up to 144.4 Mbps |
| Wireless Speed (10MHz) | Up to 72.2 Mbps |
| Wireless Speed (5MHz) | Up to 36.1 Mbps |
| Antenna Type | 2×2 MIMO directional |
| Antenna Gain | 23 dBi |
| Antenna Beamwidth (Azimuth) | 9° |
| Antenna Beamwidth (Elevation) | 7° |
| Transmit Power | Max. 29 dBm / 790 mW (adjustable by 1 dBm) |
| Operating Modes | AP, Client, Bridge, Repeater, AP Router, AP Client Router (WISP) |
| Processor | Qualcomm 560 MHz CPU (MIPS 74Kc) |
| RAM | 64 MB DDR2 |
| Flash Memory | 8 MB |
| Ethernet Port | 1× 10/100 Mbps shielded (LAN/PoE) |
| Power Supply | Passive Power over Ethernet (PoE) via LAN pins 4, 5 (positive), 7, 8 (negative) |
| Voltage Range | 16–27 V DC |
| ESD Protection | 15 kV |
| Lightning Protection | 6 kV |
| Weatherproof Rating | IP65 water and dust proof |
| Enclosure Material | Outdoor PC stabilised plastic |
| Dimensions | 360 × 280 × 207 mm (14.4 × 11.0 × 8.1 in.) |
| Wireless Technology | TP-Link Pharos MAXtream TDMA |
| Management | Pharos Control centralised management system |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
What is the maximum wireless range of the TP-Link CPE610?
The CPE610's 23dBi directional antenna and narrow 9° beamwidth provide excellent long-distance coverage. Actual range depends on terrain, obstacles, frequency interference, and transmit/receive antenna alignment. The device is optimised for point-to-point bridges where line-of-sight and proper antenna orientation are maintained.
Can the CPE610 be used as a WiFi repeater?
Yes. The CPE610 supports multiple operating modes including Repeater, allowing it to extend existing wireless networks. For best results in repeater mode, ensure proper antenna alignment and positioning to maintain signal quality between the upstream and downstream links.
What is passive PoE and why does the CPE610 use it?
Passive PoE sends power over standard Ethernet cabling without requiring a PoE injector or special power supply. The CPE610 accepts 16–27V DC via pins 4, 5, 7, 8 of the Ethernet cable. This simplifies outdoor installations by eliminating separate power runs, reducing installation complexity and cost.
How does Pharos MAXtream TDMA improve performance?
Pharos MAXtream TDMA (Time Division Multiple Access) technology improves throughput, capacity, and latency by optimising how multiple devices share the wireless medium. This is particularly beneficial in WISP and mesh deployments where several CPE units communicate simultaneously.
Is the CPE610 suitable for Australian outdoor weather conditions?
Yes. The CPE610 features IP65 weatherproofing, 15kV ESD protection, and 6kV lightning protection, making it suitable for harsh Australian conditions including heavy rain, dust, wind, and electrical storms. The durable PC-stabilised plastic enclosure resists UV damage and maintains structural integrity.
What management tools are included?
TP-Link Pharos Control is a free, centralised management system that allows administrators to configure and monitor multiple CPE610 units from a single interface. This simplifies administration of distributed outdoor network infrastructure.
How is the CPE610 powered in remote locations?
The CPE610 uses passive PoE, which means power is injected into the Ethernet cable from a power supply at the base station or via a PoE injector. A single Cat5e or Cat6 cable carries both power and data, eliminating the need for separate power infrastructure at the remote site.
