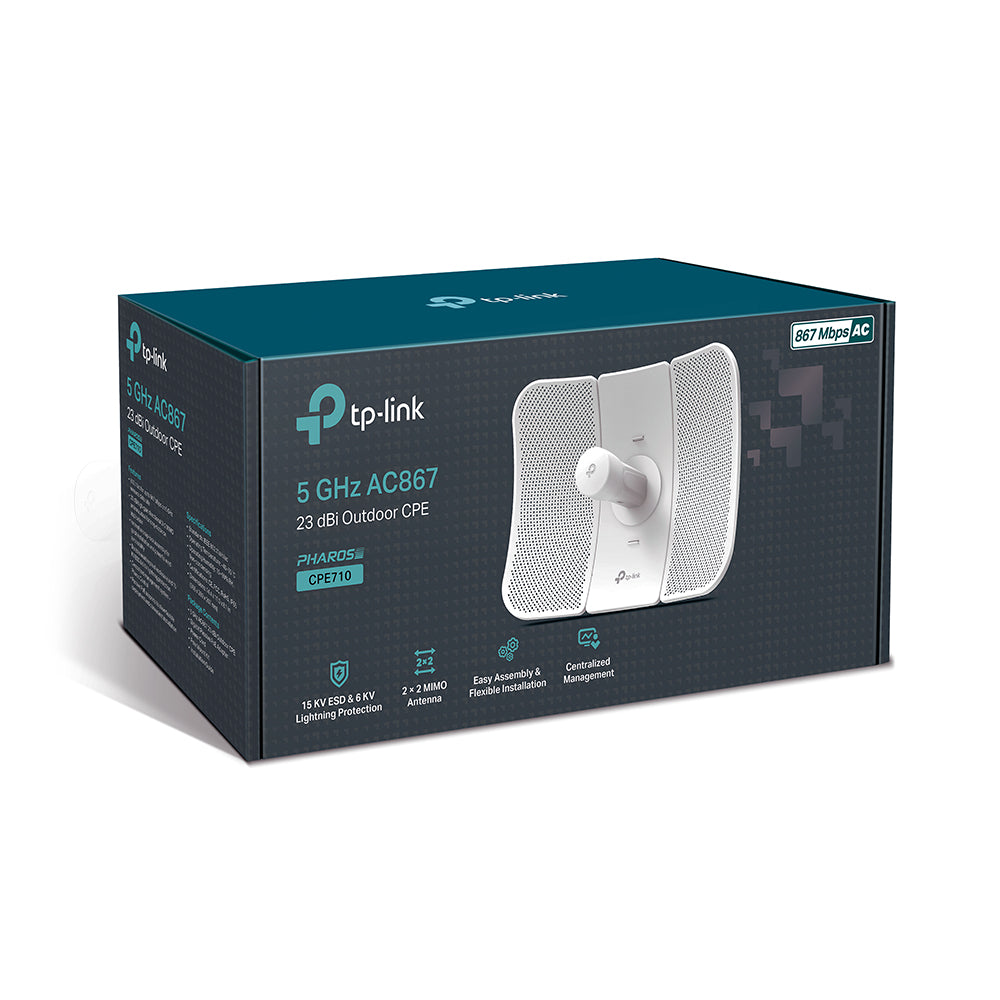

TP-Link CPE710 5GHz Outdoor Wireless CPE
TP-Link CPE710 5GHz Outdoor Wireless CPE
SKU:NWTL-CPE710
The TP-Link CPE710 is a 5GHz outdoor wireless CPE designed for long-distance point-to-point connectivity. Featuring 867Mbps data rates, 23dBi high-gain directional antenna, and IP65 weatherproof construction, it delivers reliable outdoor coverage for remote locations and business networks.
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | TP-LINK |
|---|---|
| Category | Network - Consumer |
| SKU | NWTL-CPE710 |
| Availability | In Stock |
Overview
- The TP-Link CPE710 is a professional-grade outdoor wireless customer premises equipment (CPE) engineered for reliable long-distance point-to-point connectivity. With its 23dBi directional antenna and 867Mbps 802.11ac performance, it delivers strong signal penetration and high throughput across extended distances, making it ideal for bridging networks between remote facilities, branch offices, or rural locations.
Built for Australian outdoor conditions, the CPE710 combines IP65 weatherproof protection with lightning surge protection (6kV) and ESD protection (15kV), ensuring stable operation in harsh environments. The passive Power over Ethernet (PoE) design simplifies installation by eliminating the need for additional power infrastructure, whilst Pharos Control provides centralised management across multiple devices from a single dashboard.
The directional antenna with narrow beamwidth (9° azimuth, 7° elevation) reduces interference and improves signal quality by focusing transmission toward the target location. Snap-lock assembly and wind-resistant construction make field deployment straightforward, whilst the robust enclosure and protective ratings ensure years of trouble-free operation without maintenance.
Specifications
| Wireless Standard | IEEE 802.11a/n/ac |
|---|---|
| Frequency Band | 5.15–5.85 GHz |
| Wireless Speed | Up to 867Mbps (80MHz), 400Mbps (40MHz), 173.4Mbps (20MHz) |
| Antenna Type | 2×2 MIMO Directional |
| Antenna Gain | 23 dBi |
| Antenna Beamwidth | 9° (Azimuth) / 7° (Elevation) |
| Transmit Power | Max. 27 dBm (adjustable in 1dBm increments) |
| Processor | Qualcomm 750MHz CPU, MIPS 74Kc |
| RAM | 128MB DDR2 |
| Flash Storage | 16MB |
| Ethernet Ports | 1× 10/100/1000Mbps shielded port (LAN/PoE) |
| Power Supply | Passive PoE via Ethernet (16–27V DC) |
| PoE Configuration | +4,+5 pins (positive), −7,−8 pins (negative) |
| ESD Protection | 15kV |
| Lightning Protection | 6kV |
| Weatherproof Rating | IP65 (water and dust resistant) |
| Enclosure Material | Outdoor PC stabilised plastic |
| Dimensions | 366×280×207mm (W×D×H) |
| PoE Adapter Dimensions | 85.8×43.9×29.7mm (W×D×H) |
| Network Configuration | WAN (Static/Dynamic/PPPoE), LAN (Static/Dynamic/DHCP) |
| Routing | Static routing, ALG, UPnP, virtual server, port trigger |
| Security | SPI firewall, ping forbidden, DoS protection, access control |
| IP and MAC Binding | Yes |
| Bandwidth Control | Yes |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
What is the maximum wireless speed of the TP-Link CPE710?
The CPE710 supports up to 867Mbps on 5GHz using 80MHz channel width with 802.11ac. It can also operate at 400Mbps (40MHz) or 173.4Mbps (20MHz) depending on channel configuration.
Can the CPE710 be used outdoors in harsh weather?
Yes. The CPE710 features IP65 weatherproof enclosure, 15kV ESD protection, and 6kV lightning protection, making it suitable for all-weather outdoor deployment in Australian conditions.
What type of power supply does the CPE710 require?
The CPE710 uses passive Power over Ethernet (PoE) via the Ethernet port, accepting 16–27V DC. This simplifies installation by allowing power and data to be delivered through a single cable.
What is the antenna gain and coverage range?
The CPE710 features a 23dBi high-gain directional antenna with 9° azimuth and 7° elevation beamwidth, designed for long-distance point-to-point links with improved directionality and reduced interference.
How is the CPE710 managed and configured?
The CPE710 is managed via Pharos Control, a free centralised management system that allows administrators to configure and monitor multiple devices from a single dashboard.
Is the CPE710 suitable for point-to-point wireless bridging?
Yes. The directional antenna, high gain, and 867Mbps throughput make the CPE710 ideal for point-to-point bridging between remote locations, branch offices, and rural areas.
What firewall and security features does the CPE710 offer?
The CPE710 includes SPI firewall, DoS protection, ping forbidden option, access control, IP and MAC binding, and bandwidth control for network security and traffic management.
