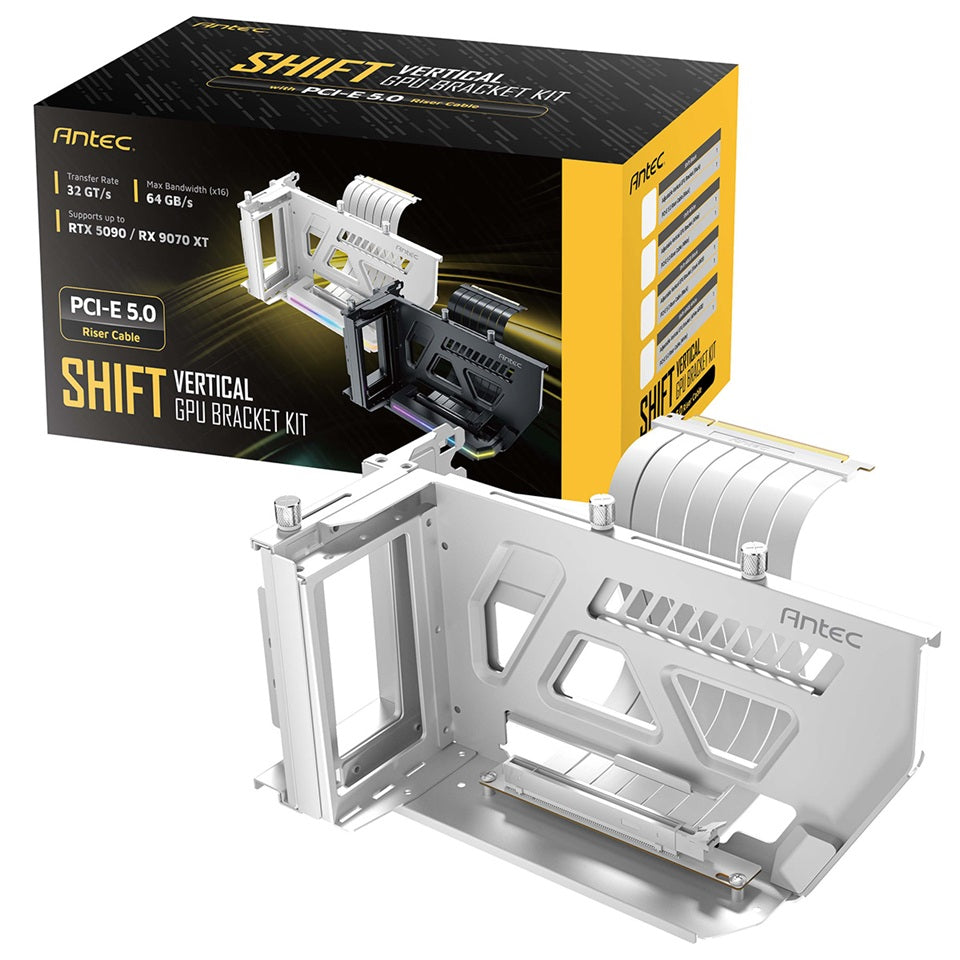

Antec SHIFT ARGB PCIe 5.0 GPU Riser Bracket White
Antec SHIFT ARGB PCIe 5.0 GPU Riser Bracket White
SKU:AT-ARCVB-W190-A-PCIE5
Couldn't load pickup availability
- See our return policy
- {"Period"=>"1 year"} Manufacturer Warranty
Product Information
| Brand | Antec |
|---|---|
| Category | Cases & Accessories |
| SKU | AT-ARCVB-W190-A-PCIE5 |
| Availability | In Stock |
Overview
- The Antec SHIFT ARGB is a purpose-built PCIe 5.0 GPU riser bracket that enables vertical graphics card mounting in modern PC cases. The 190mm riser cable is optimised to pair with the bracket, providing ideal spacing to prevent thermal throttling or performance loss whilst maintaining clean cable management.
This bracket accommodates graphics cards up to 3 slots wide, making it compatible with the latest high-end GPUs including the RTX 5090. The ARGB lighting integrates seamlessly into RGB-enabled builds, with adjustable bracket dimensions (284–337mm) allowing installation in E-ATX, ATX, and Micro ATX chassis.
Rated for DC 12V at 5A maximum current, the PCIe 5.0 x16 cable provides full backward compatibility with previous PCIe generations whilst ensuring future-proof performance. The white finish and premium construction deliver both durability and visual appeal for discerning PC enthusiasts.
Specifications
| GPU Bracket | {"Colour"=>"White ARGB", "Dimensions (Closed)"=>"284.1 (L) × 145 (W) × 133.1 (H) mm", "Dimensions (Open)"=>"337.6 (L) × 178 (W) × 195.6 (H) mm", "Supported Chassis Types"=>"E-ATX, ATX, Micro ATX (conditional)", "Maximum Graphics Card Width"=>"3 slots", "ARGB Connector"=>"3-pin 5V"} |
|---|---|
| Riser Cable | {"Cable Length"=>"190 mm", "PCIe Standard"=>"PCIe 5.0 x16", "PCIe Compatibility"=>"PCIe 5.0 and earlier generations", "Rated Voltage"=>"DC 12V", "Rated Current"=>"5A maximum"} |
| Physical | {"Net Weight"=>"0.94 kg", "Gross Weight"=>"1.13 kg"} |
| Warranty | {"Period"=>"1 year"} |
Key Features
Ideal For
FAQs
Is this riser cable compatible with older PCIe graphics cards?
Yes. The PCIe 5.0 x16 cable is fully backward compatible with PCIe 4.0, 3.0, and earlier GPU standards whilst providing full PCIe 5.0 performance for next-generation graphics cards.
What is the benefit of the 190mm cable length?
The 190mm length is optimised to pair with the bracket, providing ideal spacing that prevents thermal throttling, ensures sufficient airflow around the GPU, and maintains clean cable routing without excess slack.
Will this bracket fit my case and GPU?
The bracket fits E-ATX, ATX, and Micro ATX cases with dimensions adjustable from 284–337mm. It supports graphics cards up to 3 slots wide. Verify your case dimensions and GPU slot width before purchasing.
How do I synchronise the ARGB lighting with my motherboard?
The bracket connects via a 3-pin 5V ARGB connector. Connect it to your motherboard's RGB header and use your motherboard manufacturer's RGB software to synchronise lighting with other components.
Is this compatible with the latest RTX graphics cards?
Yes. The PCIe 5.0 x16 specification ensures compatibility with the latest graphics cards including the RTX 5090 series, provided your case and PSU can accommodate the 3-slot GPU width and power requirements.
What power does the riser cable require?
The riser cable is rated for DC 12V at 5A maximum current. It does not require additional power connectors beyond the standard PCIe slot connection.
