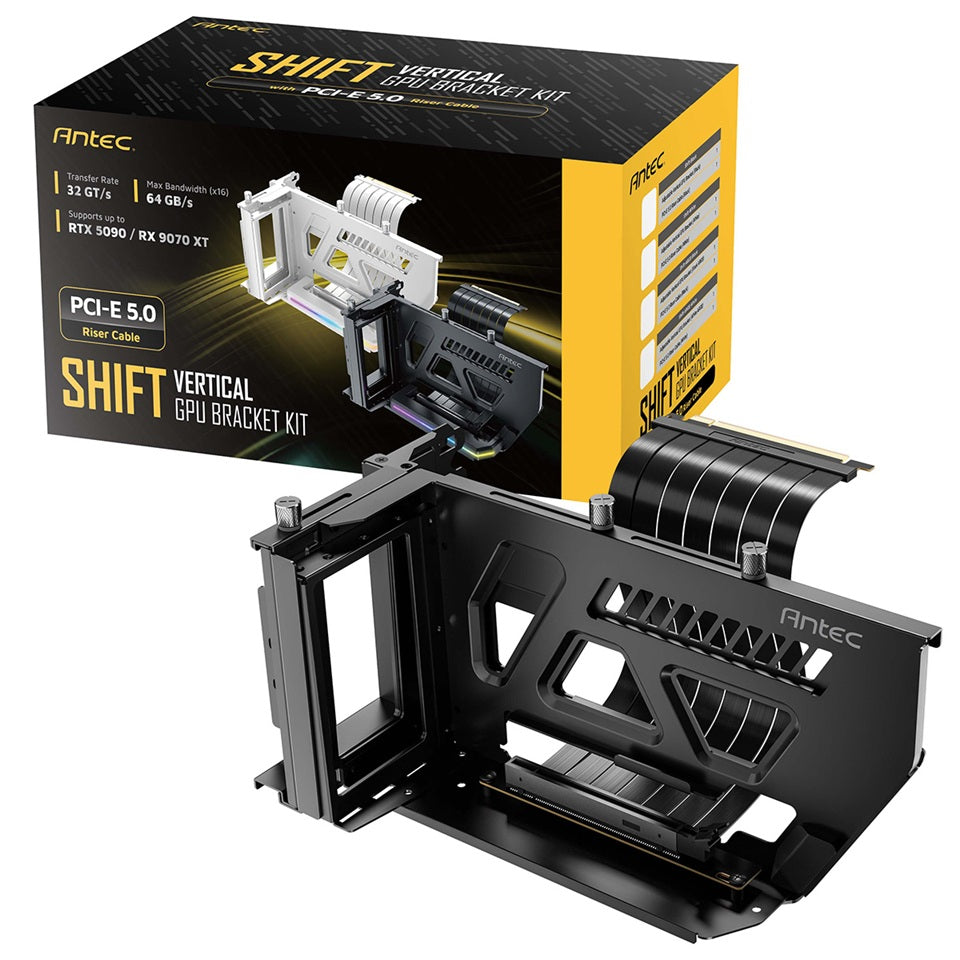

Antec SHIFT ARGB PCIe 5.0 GPU Riser Cable and Bracket
Antec SHIFT ARGB PCIe 5.0 GPU Riser Cable and Bracket
SKU:AT-ARCVB-BK190-A-PCIE5
Couldn't load pickup availability
- See our return policy
- 1 Manufacturer Warranty
Product Information
| Brand | Antec |
|---|---|
| Category | Cases & Accessories |
| SKU | AT-ARCVB-BK190-A-PCIE5 |
| Availability | In Stock |
Overview
- The Antec SHIFT ARGB is a purpose-built solution for vertical graphics card mounting in modern PC cases. It combines a certified PCIe 5.0 x16 riser cable with an adjustable mounting bracket, enabling builders to showcase premium GPUs while maintaining optimal performance.
The 190mm cable length is engineered to work seamlessly with the bracket, preventing signal degradation or space constraints common with mismatched configurations. Support for cards up to 3-slot wide ensures compatibility with the latest high-end graphics cards, while the ARGB lighting header allows RGB synchronisation with compatible motherboards and lighting controllers.
Ideal for system integrators, enthusiasts, and builders who want to combine performance with vertical GPU aesthetics without compromise.
Specifications
| brand | Antec |
|---|---|
| model | AT-ARCVB-BK190-A-PCIE5 |
| product_type | GPU Riser Cable and Bracket Assembly |
| pcie_standard | PCIe 5.0 x16 |
| pcie_compatibility | PCIe 5.0 and legacy standards |
| cable_length_mm | 190 |
| max_gpu_width_slots | 3 |
| supported_case_types | E-ATX, ATX, Micro ATX (conditional) |
| bracket_colour | Black |
| bracket_dimensions_closed_mm | 284.1 (L) × 145 (W) × 133.1 (H) |
| bracket_dimensions_open_mm | 337.6 (L) × 178 (W) × 195.6 (H) |
| argb_connector | 3-pin 5V |
| rated_voltage | DC 12V |
| rated_current_a | 5 |
| net_weight_kg | 0.94 |
| gross_weight_kg | 1.13 |
| warranty_years | 1 |
Key Features
Ideal For
FAQs
Is this riser cable compatible with PCIe 4.0 graphics cards?
Yes. The Antec SHIFT ARGB PCIe 5.0 riser cable is backward compatible with PCIe 4.0, PCIe 3.0, and earlier standards. It supports all legacy graphics cards while being certified for the latest PCIe 5.0 GPUs.
What is the maximum graphics card width supported?
The bracket supports graphics cards up to 3-slot wide, accommodating most high-end consumer and professional GPUs including NVIDIA RTX 5090 and AMD flagship models.
Can I synchronise the ARGB lighting with my motherboard?
Yes. The 3-pin 5V ARGB connector integrates with motherboard RGB headers and compatible lighting control software, allowing synchronisation across your system's RGB ecosystem.
Is the 190mm cable length suitable for all case types?
The 190mm length is optimised for standard E-ATX, ATX, and most Micro ATX cases. It prevents signal degradation from excessive cable length while providing adequate slack for installation. Check your case dimensions before purchase.
What power supply capacity do I need for the riser cable?
The riser cable itself is rated for DC 12V at 5A. Your system's power supply must be sufficient for your graphics card; the riser adds minimal additional load. Ensure your PSU meets your GPU's total system requirements.
Does this work with Micro ATX cases?
Conditional support for Micro ATX cases. The bracket dimensions (up to 337.6mm length in open position) may exceed some smaller cases. Verify your case internal dimensions before purchasing.
What warranty coverage is provided?
The Antec SHIFT ARGB includes a 1-year manufacturer warranty covering defects in materials and workmanship. Contact Hyetech Australia for warranty service details.
