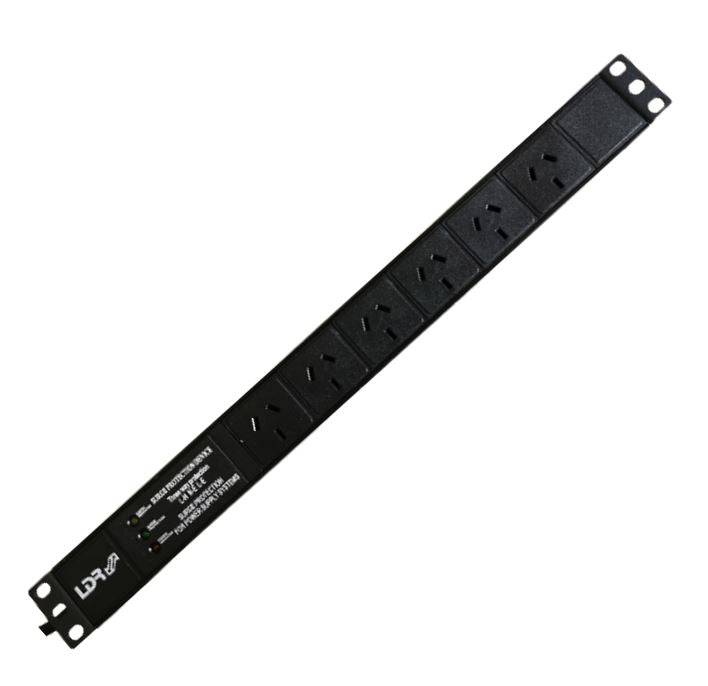

LDR 6-Port 10A Power Distribution Unit 1U Rackmount
LDR 6-Port 10A Power Distribution Unit 1U Rackmount
SKU:RCLDR-ACC-PDU10-6
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | LDR |
|---|---|
| Category | Data Racks & Accessories |
| SKU | RCLDR-ACC-PDU10-6 |
| Availability | In Stock |
Overview
- The LDR WB-PDU-0306 is a purpose-built power distribution unit for Australian data centre and server environments. With six 3-pin AU/NZ approved outlets rated at 10A, it provides compliant and reliable power distribution within standard 1U rackmount installations.
Designed for horizontal mounting within server racks and cabinets, the unit's compact footprint (482.5mm × 44.5mm × 44.5mm) maximises space efficiency while maintaining accessibility. The IP20 protection rating safeguards against dust and incidental contact in typical data centre conditions.
Ideal for businesses managing dedicated server infrastructure, network cabinets, or colocation environments, this PDU simplifies power outlet provisioning whilst maintaining compliance with Australian electrical standards. Its 12-month warranty provides confidence in reliability for mission-critical applications.
Specifications
| Brand | LDR |
|---|---|
| Model | WB-PDU-0306 |
| Product Type | Rackmount Power Distribution Unit |
| Outlets | 6 × 3-pin Australian/NZ approved |
| Rated Current | 10A |
| Mounting Format | 1U horizontal rackmount |
| Length | 482.5 mm |
| Width | 44.5 mm |
| Height | 44.5 mm |
| Internal Mounting Depth | 46 mm |
| Weight | 1.05 kg |
| Protection Class | IP20 |
| Warranty | 12 months |
Key Features
Ideal For
FAQs
Is the LDR WB-PDU-0306 approved for use in Australia?
Yes, the unit features Australian and New Zealand approved 3-pin outlets, ensuring compliance with local electrical standards and safety regulations.
What does IP20 protection mean?
IP20 protection shields the unit against dust particles larger than 12mm and accidental finger contact, suitable for typical indoor data centre environments.
Can this PDU fit in a standard server rack?
Yes, the 1U horizontal rackmount design is compatible with standard 19-inch server racks and cabinets commonly used in data centres and network rooms.
What is the maximum power capacity?
With a 10A rating across 6 outlets, the PDU can safely distribute up to 10A of current, depending on your local mains supply and connected equipment requirements.
Does it come with a warranty?
Yes, the LDR WB-PDU-0306 includes a 12-month manufacturer warranty covering defects in materials and workmanship.
What is the internal mounting depth?
The internal mounting depth is 46mm, allowing it to fit within most standard server racks without excessive protrusion.
Can I daisy-chain multiple PDUs?
Daisy-chaining capability depends on your specific power infrastructure. Consult with your IT team or Hyetech Australia for guidance on your installation requirements.
