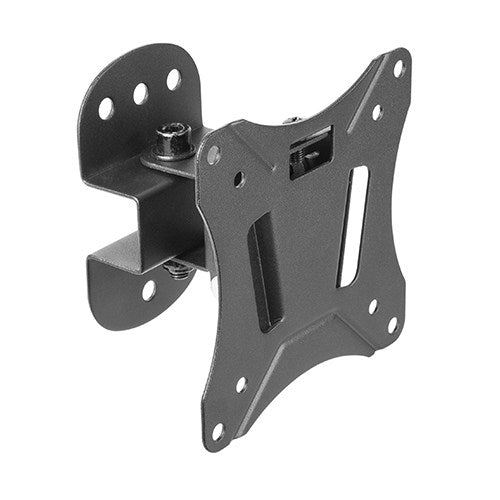

Brateck KMA21-110 Pivot TV Wall Mount Bracket 13'-27'
Brateck KMA21-110 Pivot TV Wall Mount Bracket 13'-27'
SKU:MABT-KMA21-110
Couldn't load pickup availability
- See our return policy
- 60 months Manufacturer Warranty
Product Information
| Brand | Brateck |
|---|---|
| Category | Monitor Arms (VESA) |
| SKU | MABT-KMA21-110 |
| Availability | In Stock |
Overview
- The Brateck KMA21-110 is an economy pivot wall mount designed for mid-sized flat panel TVs between 13 and 27 inches. Its swivel and tilt functionality allows you to adjust viewing angles to suit your room layout and eliminate glare, ensuring every seat has a good view.
Constructed from cold-rolled steel with a powder-coated finish, this bracket offers reliable performance for TVs weighing up to 25kg. The easy-grip knobs make adjustments quick and intuitive, while the detachable panel simplifies both installation and maintenance.
With VESA compatibility for 75x75 and 100x100 mounting patterns, the KMA21-110 suits a wide range of TV models. Installation is straightforward on solid walls or single studs, making it a practical choice for residential and commercial applications where flexible display positioning adds value.
Specifications
| Product Type | Pivot TV Wall Mount Bracket |
|---|---|
| Model | KMA21-110 |
| Material | Steel |
| Surface Finish | Powder coating |
| Colour | Fine texture black |
| VESA Compatibility | 75x75mm, 100x100mm |
| Maximum VESA | 100x100mm |
| Screen Size Range | 13 to 27 inches |
| Weight Capacity | 25kg (55lbs) |
| Tilt Range | ±7.5° |
| Swivel Range | ±25° |
| Wall Plate Thickness | 2mm cold-rolled steel |
| VESA Panel Thickness | 1.5mm cold-rolled steel |
| Dimensions | 115 × 115 × 76mm (depth) |
| Projection | 76mm |
| Panel Type | Detachable |
| Wall Plate Type | Fixed |
| Suitable for Curved TVs | No |
| Installation Type | Solid wall or single stud |
| Cable Management | Not included |
| Anti-theft | Not included |
| Bubble Level | Not included |
| Warranty | 60 months |
Key Features
Ideal For
FAQs
What TV sizes and weights does this bracket support?
The Brateck KMA21-110 supports flat panel TVs from 13 to 27 inches with a maximum weight of 25kg (55lbs). Check your TV's VESA pattern and weight before purchasing.
Which VESA mounting patterns are compatible?
This bracket is compatible with VESA patterns of 75x75mm and 100x100mm. Your TV must have one of these mounting hole patterns to use this bracket.
Can I adjust the viewing angle after installation?
Yes. The bracket features ±7.5° tilt range and ±25° swivel range, allowing you to adjust the TV angle for optimal viewing and to reduce glare. Easy-grip knobs make adjustments simple.
Is installation difficult?
No. Installation is straightforward and designed for solid walls or single studs. The detachable panel system simplifies the mounting process.
Will this bracket work with curved TVs?
No, this bracket is designed for flat panel TVs only and is not compatible with curved displays.
What wall materials can it be installed on?
The bracket is suitable for installation on solid walls or single studs. Ensure your wall can support the combined weight of the bracket and TV.
Does the bracket include cable management?
No, this is an economy model and does not include cable management features. Cables can be routed independently behind or beside the wall.
