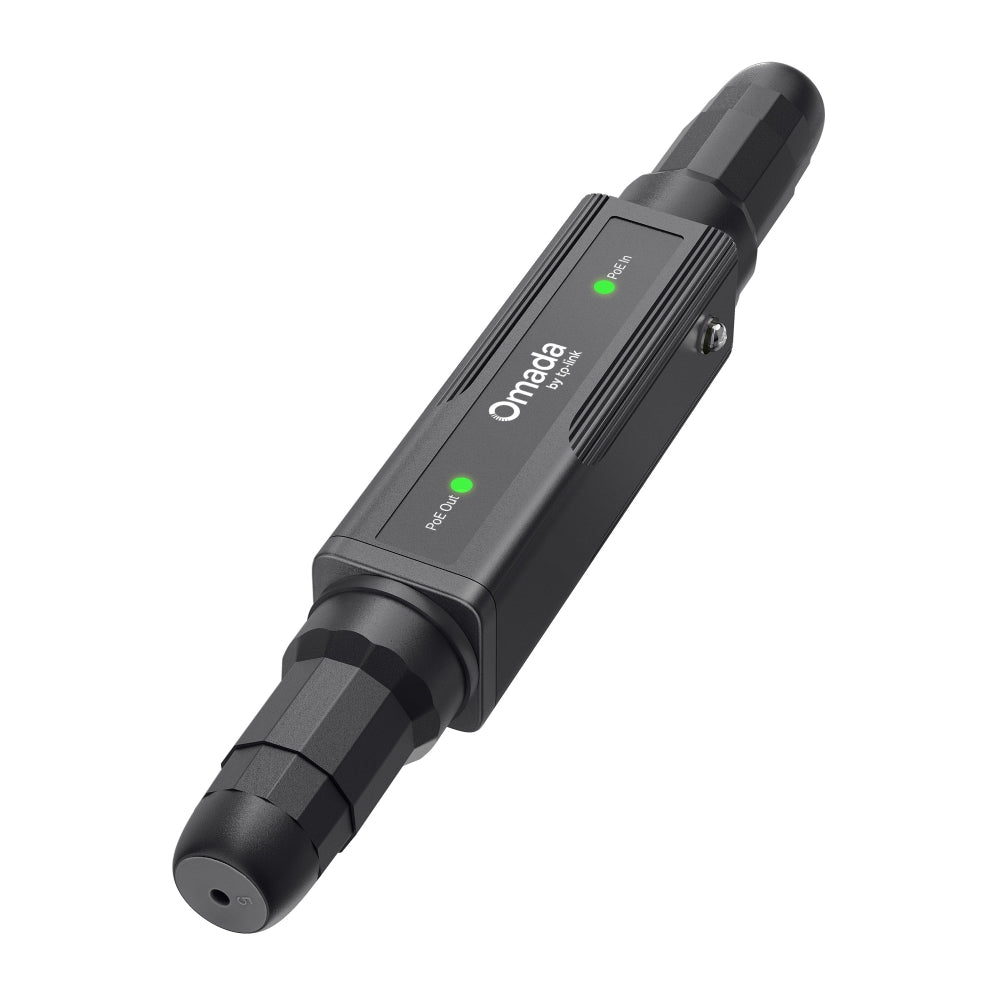

TP-Link POE20E-Outdoor Omada PoE+ Extender
TP-Link POE20E-Outdoor Omada PoE+ Extender
SKU:NWTL-POE20E-OUTDOOR
The TP-Link POE20E-Outdoor is a rugged PoE+ extender designed for outdoor IP camera and wireless access point deployments. Delivering up to 30W of power over distances up to 500m, it features IP68-rated weatherproofing and plug-and-play installation for reliable network expansion.
Couldn't load pickup availability
- See our return policy
- 3 years Manufacturer Warranty
Product Information
| Brand | TP-LINK |
|---|---|
| Category | Network - SMB |
| SKU | NWTL-POE20E-OUTDOOR |
| Availability | In Stock |
Overview
- The TP-Link POE20E-Outdoor Omada PoE+ Extender is purpose-built for extending Power over Ethernet networks across large outdoor distances. It bridges the gap between power-sourcing equipment and remote devices, enabling IP cameras, wireless access points, and other PoE-powered devices to operate reliably at distances up to 500 metres—far beyond standard Ethernet limitations.
With dual Gigabit Ethernet ports and up to 30W power output, this extender accommodates the power demands of modern IP surveillance systems and enterprise wireless infrastructure. The IP68-rated housing, wide operating temperature range (-40 to 65°C), and integrated 6kV lightning protection make it ideal for exposed outdoor deployments where equipment endures extreme weather, temperature fluctuations, and electrical exposure.
Installation is straightforward: simply connect upstream PoE equipment to one port and downstream devices to the other. No configuration is required. The 3-year warranty provides peace of mind for critical network infrastructure investments.
Specifications
| Brand | TP-Link |
|---|---|
| Model | POE20E-Outdoor |
| Product Type | PoE+ Extender |
| Ports | 2× 10/100/1000 Mbps Gigabit Ethernet (RJ45) |
| Power Output | Up to 30W |
| PoE Standards Supported | 802.3af, 802.3at |
| Maximum Extension Distance | 500m (250m + 250m) |
| Alternative Configuration | 200m (100m + 100m) |
| Weatherproofing | IP68 (dust and water resistant) |
| Operating Temperature Range | -40 to 65°C |
| Lightning Protection | 6kV |
| Installation | Plug-and-play (no configuration required) |
| Warranty | 3 years |
Key Features
Ideal For
FAQs
How far can the POE20E-Outdoor extend a PoE network?
The POE20E-Outdoor extends PoE/PoE+ connections up to 500 metres in total (250m from the power source to the extender, then 250m from the extender to the endpoint device). It can also be configured for 200m total distance (100m + 100m) depending on your network layout.
What power output does this extender provide?
The POE20E-Outdoor delivers up to 30W of power, which meets the requirements of most IP cameras and enterprise wireless access points that comply with 802.3af and 802.3at standards.
Is the POE20E-Outdoor suitable for outdoor use?
Yes. It features IP68-rated weatherproofing (dust and water resistant), operates reliably between -40 and 65°C, and includes 6kV lightning protection, making it suitable for exposed outdoor installations.
Do I need to configure the extender before use?
No. The POE20E-Outdoor is plug-and-play. Simply connect your upstream PoE power source to one port and your downstream device to the other—no configuration is required.
What devices can I power with this extender?
Any device that complies with 802.3af or 802.3at PoE standards and requires up to 30W of power. Common examples include IP security cameras, wireless access points, and PoE-powered sensors.
Is the warranty transferable if I resell the device?
The POE20E-Outdoor includes a 3-year warranty. Warranty terms and transferability depend on TP-Link's policies. Contact Hyetech Australia for specific warranty details.
