Ubiquiti UniFi Protect ViewPort PoE HDMI Adapter
Ubiquiti UniFi Protect ViewPort PoE HDMI Adapter
SKU:NHU-UFP-VIEWPORT

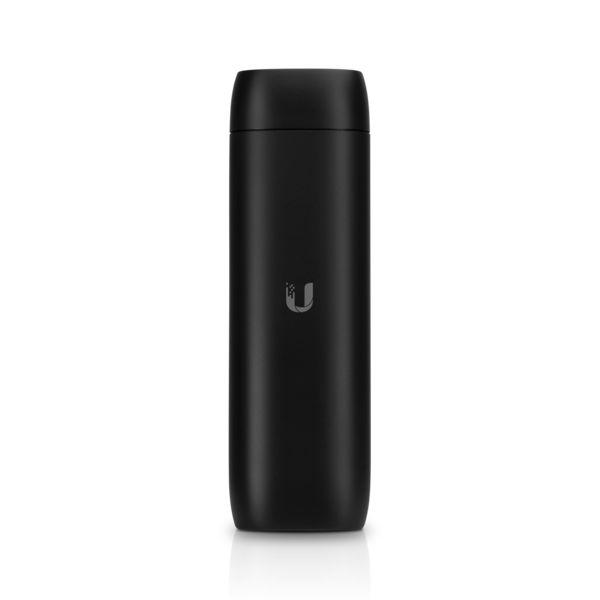

The Ubiquiti UniFi Protect ViewPort is a PoE-powered HDMI adapter that displays UniFi Protect camera feeds on any HDMI display. Supporting up to 16 simultaneous camera streams in 4K resolution, it integrates seamlessly with existing UniFi Protect systems for centralised security monitoring.
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | Ubiquiti |
|---|---|
| Category | Network - UniFi |
| SKU | NHU-UFP-VIEWPORT |
| Availability | In Stock |
Overview
- The Ubiquiti UniFi Protect ViewPort is a PoE-powered HDMI adapter designed to bridge your UniFi Protect camera system to any standard HDMI display or television. By connecting to your network via Power over Ethernet, it eliminates the need for additional power supplies and simplifies installation in security-focused environments.
This adapter supports displaying up to 16 IP cameras simultaneously, making it ideal for organisations that require centralised monitoring of multiple camera streams. The 4K video output at 30 frames per second ensures clear, detailed footage suitable for identification and incident review.
The ViewPort integrates directly with your existing UniFi Protect infrastructure, allowing you to configure custom camera matrix layouts tailored to your monitoring requirements. Whether you're monitoring a retail floor, office facility, or multi-location site, the ViewPort provides an affordable and efficient way to consolidate your security feeds onto a single display.
Specifications
| Brand | Ubiquiti |
|---|---|
| Model | UniFi Protect ViewPort |
| Product Type | PoE HDMI Adapter |
| Power Supply | Power over Ethernet (PoE) |
| Maximum Cameras Supported | 16 simultaneous IP cameras |
| Video Output | HDMI |
| Maximum Resolution | 4K (3840 x 2160) |
| Frame Rate | 30 fps |
| Network Connectivity | Ethernet up to 1 Gbps |
| Warranty | 12 months |
Key Features
Ideal For
FAQs
How many cameras can the ViewPort display at once?
The ViewPort supports displaying up to 16 UniFi Protect IP cameras simultaneously on a single HDMI display, with customisable matrix configurations.
What power supply does the ViewPort require?
The ViewPort is powered entirely by Power over Ethernet (PoE), eliminating the need for a separate power adapter.
What is the maximum video resolution and frame rate?
The ViewPort outputs video at 4K resolution (3840 x 2160) at 30 frames per second for clear and detailed monitoring.
Does the ViewPort work with existing UniFi Protect systems?
Yes, the ViewPort integrates seamlessly with UniFi Protect camera systems and connects to your local network hosting the cameras.
What type of display can I connect the ViewPort to?
The ViewPort connects to any display or television with an HDMI input port, including modern TVs and dedicated security monitors.
Is the ViewPort difficult to install?
No, the ViewPort offers simple plug-and-play installation. Connect it to your network via Ethernet and to your display via HDMI, then configure camera layouts in your UniFi Protect system.
What network speed does the ViewPort support?
The ViewPort supports network connectivity at speeds up to 1 Gbps via Ethernet.
Can I customise the camera layout on the display?
Yes, the ViewPort supports customisable high-density camera matrix configurations, allowing you to arrange cameras according to your monitoring needs.
