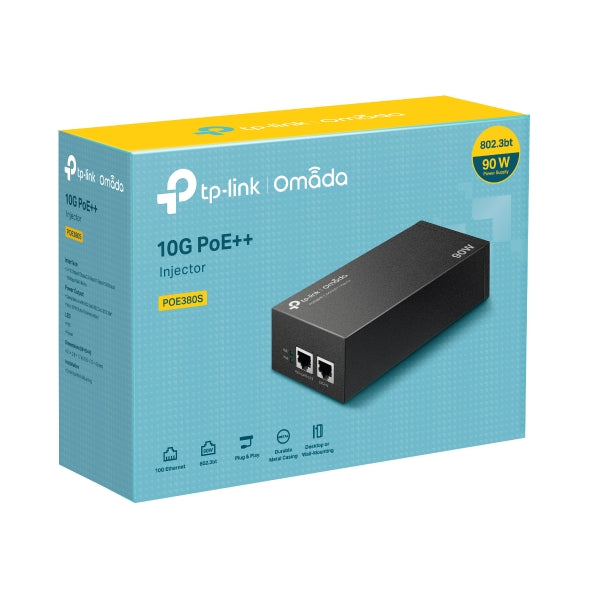

TP-Link POE380S Omada 10G PoE++ Injector
TP-Link POE380S Omada 10G PoE++ Injector
SKU:NWTL-POE380S
Couldn't load pickup availability
- See our return policy
- 3 years Manufacturer Warranty
Product Information
| Brand | TP-LINK |
|---|---|
| Category | Network - SMB |
| SKU | NWTL-POE380S |
| Availability | In Stock |
Overview
- The TP-Link POE380S Omada 10G PoE++ Injector is a professional-grade power delivery solution for modern enterprise networks. It combines dual 10 Gbps ports with 90 W PoE power capacity, enabling organisations to transmit data and power simultaneously over standard Ethernet cabling. This eliminates the need for separate power infrastructure at each device location, significantly reducing installation complexity and overall network deployment costs.
Designed for seamless integration into mixed-speed network environments, the POE380S automatically detects connected devices and supplies the exact power level required, protecting equipment and optimising energy consumption. The injector supports full IEEE 802.3bt, 802.3at, and 802.3af compliance, ensuring compatibility with current and emerging PoE-powered devices. Its flexible mounting options and plug-and-play operation make it suitable for both new deployments and existing infrastructure upgrades.
Built with a durable metal casing and integrated power supply, the POE380S is engineered for reliable operation in demanding business environments. The 3-year warranty provides peace of mind for organisations investing in stable, future-ready network infrastructure.
Specifications
| Ports | 2× 10 Gbps RJ45 Ethernet (1 PoE, 1 Non-PoE) |
|---|---|
| Speed Support | 10 Gbps, 5 Gbps, 2.5 Gbps, 1 Gbps, 100 Mbps, 10 Mbps |
| PoE Standard | IEEE 802.3bt, 802.3at, 802.3af compliant |
| Maximum PoE Power | 90 W |
| Power Supply | Integrated |
| Installation | Wall-mount or desktop |
| Setup | Plug & Play (no configuration) |
| Power Management | Automatic device detection and power optimisation |
| Casing | Metal |
| Warranty | 3 years |
Key Features
Ideal For
FAQs
What is PoE and how does the POE380S benefit my network?
Power over Ethernet (PoE) transmits both data and electrical power over a single Ethernet cable, eliminating the need for separate power connections at each device. The POE380S simplifies infrastructure by delivering up to 90 W of power to PoE-compatible devices like access points and cameras, reducing cabling costs and installation time.
Is the POE380S compatible with older PoE devices?
Yes. The POE380S complies with IEEE 802.3af, 802.3at, and 802.3bt standards and automatically detects connected devices to supply the appropriate power level. It is backwards compatible with legacy PoE equipment while supporting modern high-power devices.
Can I use the POE380S with existing network cables?
The POE380S works with standard Ethernet cabling. For optimal performance with 10 Gbps speeds and maximum power delivery, Cat6A or higher cabling is recommended, though it will function with Cat5e or Cat6 cables at reduced speeds.
Does the POE380S require any setup or configuration?
No. The POE380S is Plug & Play. Simply connect your power supply and Ethernet cables—no software installation or configuration is needed. It automatically detects attached devices and optimises power delivery.
What devices can I power with the 90 W output?
The 90 W power budget supports high-power devices such as 10 Gbps access points, PTZ cameras, wireless bridging equipment, and industrial IoT devices. Verify specific device power requirements against the 90 W limit to ensure compatibility.
Can I mount the POE380S in different locations?
Yes. The POE380S supports both wall-mount and desktop installation, offering flexibility to accommodate various deployment scenarios and network environments.
What warranty does the POE380S include?
The TP-Link POE380S includes a 3-year manufacturer warranty, providing long-term protection and support for your investment.
