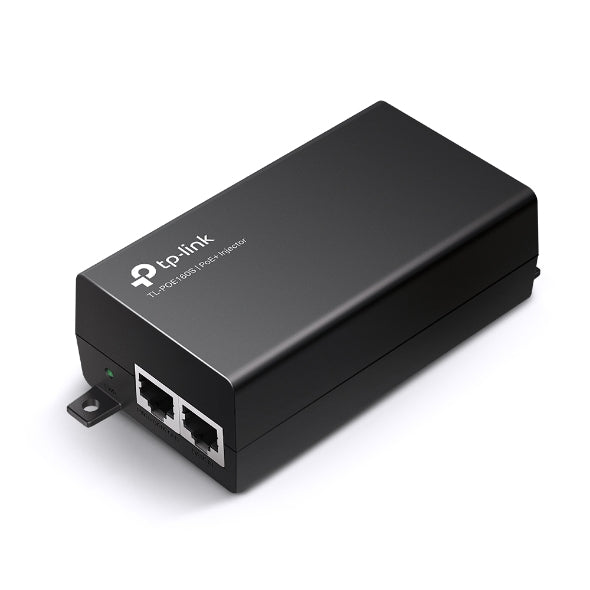

TP-Link TL-POE160S Omada PoE+ Injector
TP-Link TL-POE160S Omada PoE+ Injector
SKU:NWTL-POE160S
The TP-Link TL-POE160S is a PoE+ injector designed for powering network devices over standard Ethernet cables. Featuring dual Gigabit ports, IEEE 802.3af/at compliance, and automatic power detection, it simplifies network deployment for IT professionals and business infrastructure.
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | TP-LINK |
|---|---|
| Category | Network - Consumer |
| SKU | NWTL-POE160S |
| Availability | In Stock |
Overview
- The TP-Link TL-POE160S is a standalone PoE+ injector that combines data and power delivery over a single Ethernet cable, eliminating the need for separate power supplies at device endpoints. It features dual Gigabit ports with intelligent auto-sensing technology that automatically detects connected devices and supplies the exact power required, up to 30W per IEEE 802.3af/at standards.
Designed for straightforward network expansion, the TL-POE160S supports standard Cat5 and above cabling up to 100 metres, making it ideal for deploying powered network devices such as wireless access points, IP surveillance cameras, and VoIP phones. The integrated power supply and plug-and-play design mean minimal installation time and no complex configuration.
With its compact footprint and flexible mounting options (wall or desktop), the injector integrates seamlessly into existing network infrastructure. The auto-determine power algorithm ensures efficient operation whilst protecting connected devices, making it a reliable choice for businesses looking to expand their network capability without major infrastructure overhaul.
Specifications
| Ports | 1× 10/100/1000 Mbps RJ45 data-in port; 1× 10/100/1000 Mbps RJ45 power+data-out port; 1× AC socket |
|---|---|
| Standards & Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at |
| Power Output | Auto-determine (maximum 30W) |
| Power Input | 100-240V AC, 50/60 Hz |
| Network Media Support | 10BASE-T: UTP Cat3/4/5, STP (max 100m); 100BASE-TX: UTP Cat5/5e, STP (max 100m); 1000BASE-T: UTP Cat5/5e/6, STP (max 100m) |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 10% to 90% RH (non-condensing) |
| Storage Humidity | 5% to 90% RH (non-condensing) |
| Dimensions | 125 × 59.4 × 36.8 mm (4.9 × 2.3 × 1.4 inches) |
| Certifications | FCC, CE, RoHS |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
What devices can the TL-POE160S power?
The injector supports any IEEE 802.3af/at compliant powered device (PD), including wireless access points, IP security cameras, VoIP phones, and small network switches. Power output is up to 30W.
Do I need a PoE-enabled switch to use this injector?
No. The TL-POE160S is a standalone injector that adds PoE capability to a standard (non-PoE) network switch or router. It injects power into the Ethernet line between your switch and the powered device.
What is the maximum cable distance supported?
Standard Ethernet cabling up to 100 metres is supported (Cat5 and above). For optimal performance, use Cat5e or Cat6 cabling.
Is installation difficult?
No. The TL-POE160S is plug-and-play. Simply connect your network cable to the data-in port, the powered device to the power+data-out port, plug in the AC power supply, and it begins operating automatically with no configuration needed.
How does the auto-sensing algorithm work?
The injector automatically detects the connected device's power requirements and supplies only the necessary power (up to 30W maximum). This ensures efficient operation and protects devices from overpowering.
Can the injector be wall-mounted?
Yes. The TL-POE160S supports both wall-mounting and desktop installation, giving flexibility to suit your installation environment.
What certifications does this product have?
The TL-POE160S is certified to FCC, CE, and RoHS standards, ensuring safety, electromagnetic compatibility, and environmental compliance.
