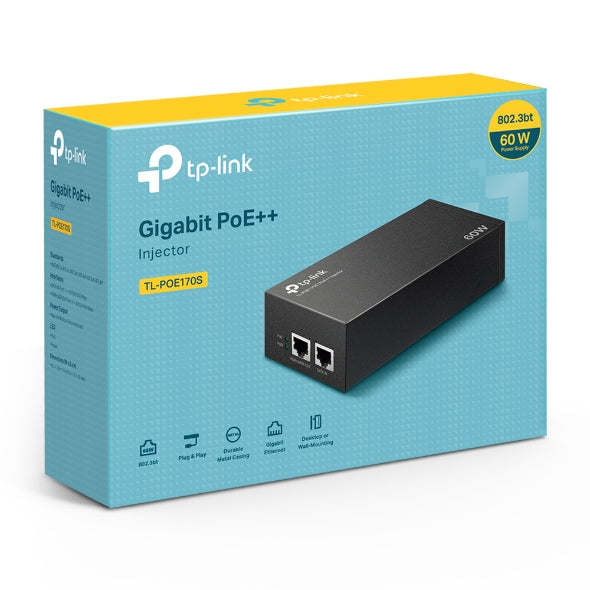

TP-Link TL-POE170S PoE++ Injector with 2 Gigabit Ports
TP-Link TL-POE170S PoE++ Injector with 2 Gigabit Ports
SKU:NWTL-POE170S
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | TP-LINK |
|---|---|
| Category | Network - Consumer |
| SKU | NWTL-POE170S |
| Availability | In Stock |
Overview
- The TP-Link TL-POE170S PoE++ injector simplifies network device deployment by transmitting both data and power over a single Ethernet cable. With dual Gigabit ports and support for IEEE 802.3af/at/bt standards, it delivers up to 60W of automatically-determined power to connected devices, eliminating the need for separate power supplies and reducing installation complexity.
Designed for flexibility, the TL-POE170S supports both wall-mounted and desktop installation, making it suitable for various network environments. The auto-sensing algorithm intelligently detects connected devices and supplies only the power they require, improving energy efficiency and equipment compatibility.
Ideal for powering IP cameras, wireless access points, VoIP phones, and other PoE-compatible devices, this injector offers a cost-effective way to expand your network without extensive infrastructure changes. Three-year warranty coverage ensures long-term reliability and peace of mind.
Specifications
| Network Standards | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
|---|---|
| Data Ports | 1x 10/100/1000Mbps RJ45 data-in port; 1x 10/100/1000Mbps RJ45 power+data-out port |
| Power Output | Maximum 60W; auto-determined based on device requirements |
| Power Input | 100–240V AC, 50/60Hz, 1.6A |
| Supported Cable Types | 10BASE-T: Cat3, 4, 5 UTP or STP (max 100m); 100BASE-TX: Cat5, 5e UTP or STP (max 100m); 1000BASE-T: Cat5, 5e, 6 UTP or STP (max 100m) |
| Power Supply | Integrated |
| Installation | Wall-mountable or desktop |
| Setup | Plug-and-play; no configuration required |
| Dimensions | 155 x 70 x 42mm (6.1 x 2.8 x 1.7 inches) |
| Casing | Metal |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
What devices can the TP-Link TL-POE170S power?
The TL-POE170S powers any IEEE 802.3af/at/bt compliant PoE device, including IP cameras, wireless access points, VoIP phones, wireless door locks, and small switches. The auto-sensing algorithm ensures devices receive only the power they require, up to 60W maximum.
Can I use standard Ethernet cables with this injector?
Yes. The TL-POE170S works with standard Cat5, Cat5e, and Cat6 Ethernet cables rated for 10BASE-T, 100BASE-TX, or 1000BASE-T connections, up to 100 metres in length.
Do I need to configure the TL-POE170S before use?
No. The injector is plug-and-play and requires no configuration. Simply connect power, attach your upstream network device to the data-in port, and connect your powered device to the power+data-out port.
What is the difference between PoE, PoE+, and PoE++?
PoE (802.3af) delivers up to 15.4W, PoE+ (802.3at) up to 30W, and PoE++ (802.3bt) up to 60W or 95W depending on the standard. The TL-POE170S supports all three standards and automatically supplies the power level your device requires.
Is the TL-POE170S suitable for outdoor installations?
The TL-POE170S has a metal casing for durability. However, it is not rated for outdoor weather exposure. For outdoor use, mount it in a weatherproof enclosure or use it only in covered installations.
Can I daisy-chain multiple PoE injectors?
No. Each PoE injector should be used independently in your network topology. Daisy-chaining injectors is not recommended and may cause power supply issues.
What warranty coverage does the TL-POE170S include?
The TL-POE170S includes a 36-month (3-year) manufacturer's warranty covering defects in materials and workmanship.
