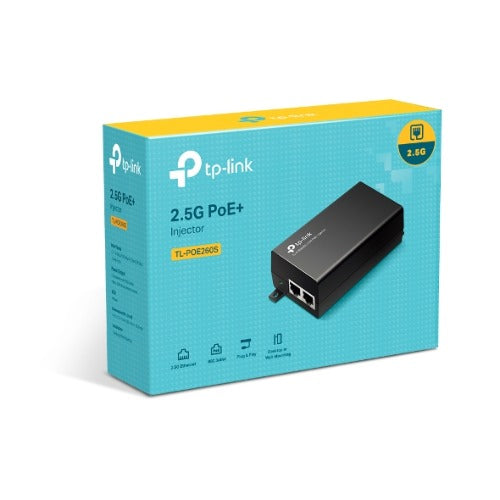

TP-Link TL-POE260S 2.5G PoE+ Injector
TP-Link TL-POE260S 2.5G PoE+ Injector
SKU:NWTL-POE260S
The TP-Link TL-POE260S is a 2.5G PoE+ injector designed for simplified network deployment. Featuring dual 2.5 Gbps ports, IEEE 802.3af/at compliance with up to 30W output, and automatic power detection, it simplifies infrastructure while delivering faster transmission for modern networked devices.
Couldn't load pickup availability
- See our return policy
- 3 years Manufacturer Warranty
Product Information
| Brand | TP-LINK |
|---|---|
| Category | Network - Consumer |
| SKU | NWTL-POE260S |
| Availability | In Stock |
Overview
- The TP-Link TL-POE260S is a compact 2.5G PoE+ injector that simplifies network infrastructure by delivering both data and power over a single Ethernet cable up to 100 metres. This eliminates the need for separate power supplies at remote locations, reducing installation complexity and infrastructure costs.
With dual 2.5 Gbps ports and IEEE 802.3af/at compliance, the TL-POE260S supplies up to 30W of intelligent, automatically-detected power to connected devices. The intelligent power detection ensures each device receives exactly the power it needs, preventing over-supply and equipment damage.
Designed for professionals, the injector features a pocket-sized form factor that works equally well mounted on a wall or positioned on a desktop. Plug & Play operation means no configuration is needed—simply connect your power source, network uplink, and powered device to begin operation immediately.
Ideal for deploying IP cameras, wireless access points, VoIP phones, and other PoE-compatible devices in small offices, retail locations, or temporary installations where simplified deployment and cost reduction matter.
Specifications
| Model | TL-POE260S |
|---|---|
| Product Type | 2.5G PoE+ Injector |
| Ports | 1× 2.5G PoE Output Port, 1× 2.5G Non-PoE Input Port |
| Data Rate | 2.5 Gbps |
| Power Output | Up to 30W |
| PoE Standard | IEEE 802.3af/at |
| Maximum Cable Distance | 100 metres |
| Power Detection | Automatic intelligent detection |
| Installation | Plug & Play, no configuration required |
| Design | Wall-mount and desktop compatible |
| Power Supply | Integrated |
| Warranty | 3 years |
| Form Factor | Pocket-sized |
Key Features
Ideal For
FAQs
What devices are compatible with the TP-Link TL-POE260S?
The TL-POE260S works with any PoE-compliant device that supports IEEE 802.3af/at standards, including IP cameras, wireless access points, VoIP phones, and other powered network devices.
How much power does the TL-POE260S supply?
The injector supplies up to 30W of power. It automatically detects connected devices and supplies the exact amount of power needed, preventing over-supply.
Can I run the PoE cable up to 100 metres?
Yes, the TL-POE260S supports power and data transmission over a single Ethernet cable for up to 100 metres, eliminating the need for separate power lines at remote locations.
Do I need to configure the TL-POE260S?
No. The TL-POE260S is Plug & Play. Simply connect the power supply, network uplink, and powered device—no configuration is required.
Where can the TL-POE260S be installed?
The compact design accommodates both wall-mounting and desktop placement, making it suitable for most installation scenarios including tight spaces and temporary deployments.
What warranty does the TL-POE260S include?
The TP-Link TL-POE260S includes a 3-year manufacturer's warranty, providing peace of mind for business deployments.
