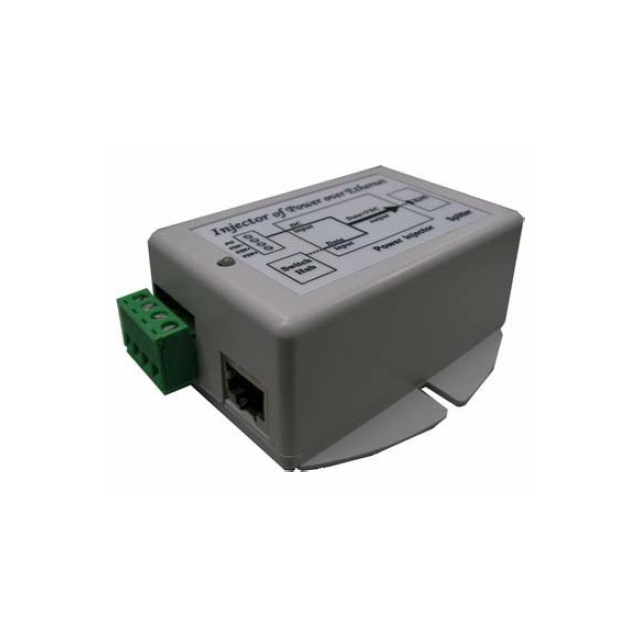

Tycon Power TP-DCDC-1224G 24V Passive PoE Injector
Tycon Power TP-DCDC-1224G 24V Passive PoE Injector
SKU:NHU-TP-DCDC-1224G
The Tycon Power TP-DCDC-1224G is a 24V passive PoE injector designed for remote network devices powered by battery or vehicle systems. Featuring 20W output, wide voltage input (9-36VDC), and integrated Gigabit Ethernet, it delivers reliable power and data over standard Cat5/6 cabling for industrial and field deployments.
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | Tycon |
|---|---|
| Category | Network - SMB |
| SKU | NHU-TP-DCDC-1224G |
| Availability | In Stock |
Overview
- The Tycon Power TP-DCDC-1224G is a cost-effective passive PoE injector that bridges the gap between low-voltage DC power sources and Gigabit Ethernet devices. It accepts a wide 9-36VDC input and converts it to a regulated 24V passive PoE output, delivering up to 20W of power alongside full Gigabit data throughput on standard Cat5/6 cabling.
Designed for field and industrial applications, the TP-DCDC-1224G features dual power input terminals, allowing users to connect a primary power source with a backup for enhanced reliability. Built-in protections against surge, short circuit, and overload ensure safe operation in demanding environments where power stability cannot be guaranteed.
The unit's compact metal enclosure and removable wire terminals (up to 12AWG) make installation straightforward in tight spaces and harsh conditions. With UL listing and high-temperature operation ratings, it is well-suited for outdoor surveillance, remote wireless access points, and vehicle-mounted network equipment.
Specifications
| Input Voltage Range | 9-36VDC |
|---|---|
| Output Voltage | 24VDC (Passive) |
| Maximum Output Power | 20W |
| Data Interface | Gigabit Ethernet (RJ45) |
| PoE Standard | Passive PoE on pins 4, 5 (V+) and 7, 8 (V-) |
| Power Input Connections | Removable wire terminals (up to 12AWG) |
| Protections | Surge, short circuit, and over-voltage protection |
| Operating Temperature | High temperature rated |
| Dimensions | 85 x 76 x 36mm (3.4 x 3 x 1.4 inches) |
| Weight | 134g (4.7oz) |
| Enclosure | Metal |
| Certifications | UL listed, ITE power supply |
| Warranty | 12 months |
Key Features
Ideal For
FAQs
What is passive PoE and how does it differ from standard PoE?
Passive PoE delivers power using unused Ethernet cable pairs without the negotiation handshake of standard IEEE 802.3af/at PoE. It is simpler, lower cost, and suitable for devices designed to accept it. The TP-DCDC-1224G supplies power on pins 4, 5 and 7, 8, making it compatible with devices expecting this configuration.
Can I use this injector with battery-powered systems?
Yes. The TP-DCDC-1224G accepts 9-36VDC input, making it ideal for battery systems, solar installations, and vehicle power supplies. The dual input terminals allow connection of a primary battery with a backup source for uninterrupted operation.
What devices can be powered by the TP-DCDC-1224G?
Any Gigabit Ethernet device rated for 24V passive PoE with power draw up to 20W can be powered by this injector. Common applications include wireless access points, PTZ cameras, and remote network switches designed for passive PoE input.
Does the injector support Gigabit data speeds?
Yes. The TP-DCDC-1224G passes full Gigabit Ethernet data rates while simultaneously delivering power, maintaining network performance without degradation.
Is this suitable for outdoor or high-temperature environments?
Yes. The unit features high-temperature operation ratings and a metal enclosure, making it suitable for industrial, outdoor, and harsh environment installations. Built-in protections guard against surge and overload conditions.
What size wires can I connect to the input terminals?
The removable wire terminals accept copper conductors up to 12AWG, providing flexibility for various power source configurations and cable gauges.
What certifications does this product hold?
The TP-DCDC-1224G is UL listed and meets ITE (Information Technology Equipment) power supply standards, ensuring safety and compliance for commercial and industrial use.
