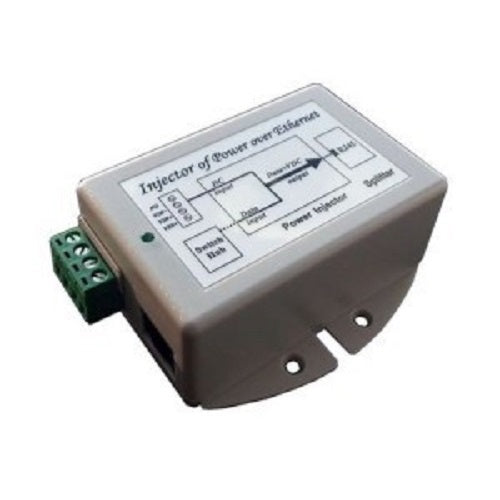

Tycon Power TP-DCDC-1248G 48V 20W Gigabit PoE Injector
Tycon Power TP-DCDC-1248G 48V 20W Gigabit PoE Injector
SKU:NHU-TP-DCDC-1248G
The Tycon Power TP-DCDC-1248G is a DC to DC converter and PoE injector designed for 12V/24V battery and vehicle systems. Featuring gigabit passthrough, 48V 20W passive PoE output, and dual power inputs with comprehensive protection, it delivers reliable power delivery for remote network devices.
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | Tycon |
|---|---|
| Category | Network - SMB |
| SKU | NHU-TP-DCDC-1248G |
| Availability | In Stock |
Overview
- The Tycon Power TP-DCDC-1248G is a compact DC to DC converter and PoE injector that bridges 12V or 24V power sources with gigabit Ethernet devices requiring higher voltage power delivery. It accepts gigabit data over standard CAT5/6 cabling and injects regulated 48VDC passive PoE power on pins 4, 5, 7, and 8, enabling operation of remote network devices from battery systems, vehicle power supplies, or alternative energy sources.
Designed for reliability in harsh environments, the unit features dual power inputs for redundancy, allowing connection of primary and backup power sources. Comprehensive protection circuits guard against surge, short circuit, over-current, and reverse polarity conditions. The isolated input and output design ensures system safety and prevents ground loops.
This injector is ideal for organisations deploying network infrastructure in locations without mains power access, such as remote sites, vehicles, emergency response systems, and renewable energy installations. The gigabit passthrough capability ensures network performance is not compromised, while the compact form factor and low power consumption minimise installation footprint and operational costs.
Specifications
| Brand | Tycon Power |
|---|---|
| Model | TP-DCDC-1248G |
| Product Type | DC to DC Converter and PoE Injector |
| Input Voltage | 9-36VDC (nominal 12V or 24V) |
| Output Voltage | 48VDC |
| Maximum Power Output | 20W |
| Data Rate | Gigabit (10/100/1000 Mbps) |
| PoE Standard | Passive PoE |
| PoE Pins | 4, 5, 7, 8 |
| Input Connectors | Two screw terminals (common and positive) |
| Data Input | Shielded RJ45 jack |
| Data Output | Shielded RJ45 jack |
| Input/Output Isolation | Yes |
| Dual Power Inputs | Yes (primary and backup) |
| Protection Features | Surge, short circuit, over-current, reverse polarity, over-voltage |
| Operating Temperature | High temperature operation |
| Enclosure | Plastic (metal enclosure available for industrial use) |
| Certification | UL Listed |
| Power Consumption | Low self-consumption |
| Warranty | 12 months |
Key Features
Ideal For
FAQs
What is the difference between this converter and a standard PoE injector?
The Tycon TP-DCDC-1248G converts low-voltage DC power (9-36V) from batteries or vehicles into 48V passive PoE, allowing operation of network devices where mains power is unavailable. Standard PoE injectors typically work from mains AC power sources.
Can I connect two power sources for redundancy?
Yes. The unit has dual inputs (two common and two positive terminals) allowing connection of a primary power source and a backup source. This provides power redundancy for critical applications.
What devices can this power via PoE?
It can power any device rated for passive PoE at 48V and drawing up to 20W, including wireless access points, IP cameras, IP phones, and remote network clients that support passive power delivery.
Is the input and output isolated?
Yes. The input and output are galvanically isolated, which prevents ground loops and provides additional system safety and protection against voltage spikes.
What protection does the unit provide?
The unit includes comprehensive protection against surge, short circuit, over-current, reverse polarity, and over-voltage conditions, ensuring safe operation in demanding environments.
What is the maximum power output?
The maximum power output is 20W at 48VDC, which is suitable for most wireless access points, IP cameras, and IP phones in remote installations.
Does it support gigabit Ethernet speeds?
Yes. The unit provides gigabit passthrough capability, supporting 10/100/1000 Mbps data rates, so network performance is not compromised.
