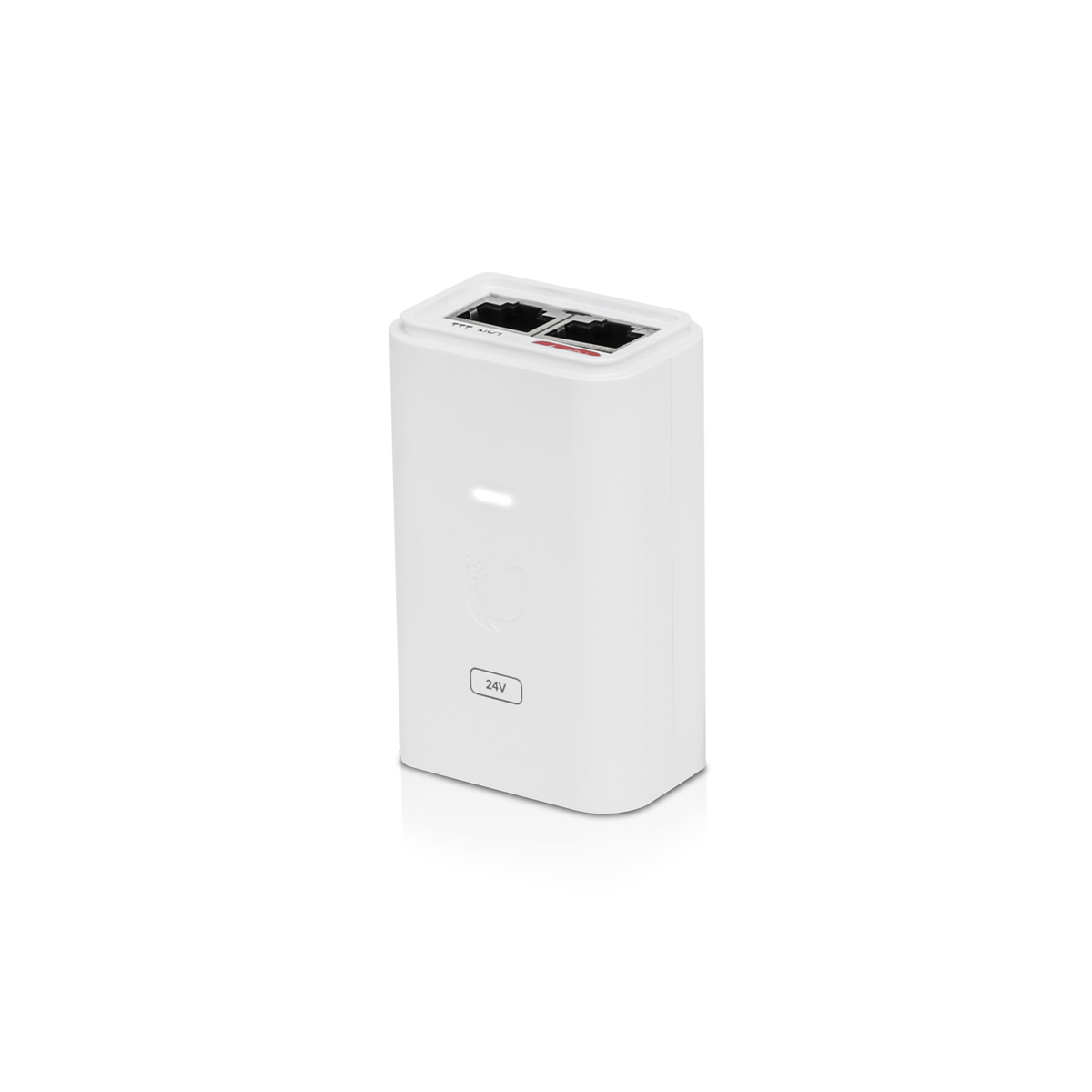

Ubiquiti POE-24-24W-G PoE Injector 24V
Ubiquiti POE-24-24W-G PoE Injector 24V
SKU:NHU-POE-24-24W-G-WH
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | Ubiquiti |
|---|---|
| Category | Network - UniFi |
| SKU | NHU-POE-24-24W-G-WH |
| Availability | In Stock |
Overview
- The Ubiquiti POE-24-24W-G is a PoE injector purpose-built to protect outdoor network devices from electrical damage. It injects 24V DC power over standard Gigabit Ethernet cabling, making it ideal for UniFi deployments where devices are exposed to weather, lightning, and electrostatic discharge.
This injector addresses a critical issue in outdoor networking: ESD is the leading cause of device failure in field installations. By combining surge protection, clamping protection, and an earth-grounded design, it significantly extends device lifespan and reduces downtime from electrical damage.
The unit is designed to work seamlessly with Ubiquiti's TOUGH Cable and TOUGH Cable Connectors for complete ESD protection from power source to device. It handles both standard Australian AC input (100-240V, 50/60Hz) and provides robust protection against peak pulse currents and maximum surge discharge.
Specifications
| Brand | Ubiquiti |
|---|---|
| Model | POE-24-24W-G |
| Product Type | PoE Injector |
| Output Voltage | 24V DC |
| Output Current | 1.0A |
| Power Output | 24W |
| Interface | Gigabit Ethernet |
| Input Voltage | 100-240V AC |
| Input Frequency | 50/60Hz |
| Input Current @ 120V AC | 0.6A |
| Input Current @ 240V AC | 0.4A |
| Inrush Current @ 120V AC | <60A peak |
| Inrush Current @ 230V AC | <120A peak |
| Surge Protection | Difference and common mode |
| Clamping Protection Data | 11V |
| Clamping Protection Power | 60V |
| Maximum Surge Discharge | 1500A (8/20 μs) power |
| Peak Pulse Current | 36A (10/1000 μs) data |
| ESD Protection | Yes, with earth-grounded AC cable |
| LED Indicator | Yes |
| Warranty | 12 months |
Key Features
Ideal For
FAQs
What is the difference between this PoE injector and standard models?
The Ubiquiti POE-24-24W-G includes comprehensive ESD protection, surge protection, and clamping protection. This makes it specifically suited for outdoor installations where electrostatic discharge and electrical surges are common causes of device failure.
Will this injector work with my UniFi access points?
Yes, this injector is designed for UniFi devices that require 24V DC power input. Always verify your specific device's power requirements in the product manual before installation.
What does the clamping protection do?
Clamping protection limits voltage spikes: 11V on data lines and 60V on power lines. This prevents damaging voltage transients from reaching your connected PoE device.
Do I need to use TOUGH Cable with this injector?
While not mandatory, Ubiquiti recommends pairing this injector with TOUGH Cable and TOUGH Cable Connectors for complete end-to-end ESD protection in outdoor environments.
Can I use this injector indoors?
Yes, the injector works in both indoor and outdoor environments. However, it is optimised for outdoor deployments where ESD and surge protection are most critical.
What is the maximum surge discharge rating?
The injector handles a maximum surge discharge of 1500A (8/20 μs) on power lines, providing strong protection against lightning and electrical transients.
Will this work with Australian AC mains?
Yes. The injector accepts 100-240V AC input at 50/60Hz, which covers standard Australian mains power (230V, 50Hz).
