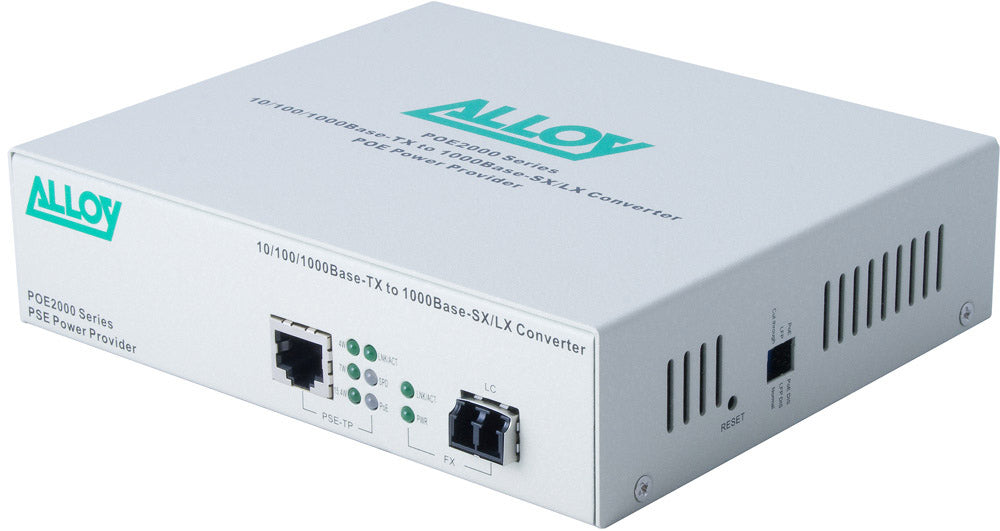

Alloy POE2000LC.10 PoE Gigabit Ethernet Media Converter
Alloy POE2000LC.10 PoE Gigabit Ethernet Media Converter
SKU:NHA-POE2000LC.10
The Alloy POE2000LC.10 is a PoE Gigabit Ethernet media converter that combines copper-to-fibre conversion with inline power delivery. Featuring 10/100/1000Mbps auto-negotiation, IEEE 802.3af PoE support, and 10km singlemode fibre range, it powers IP phones and cameras over standard UTP cabling.
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | Alloy |
|---|---|
| Category | Network - Consumer |
| SKU | NHA-POE2000LC.10 |
| Availability | In Stock |
Overview
- The Alloy POE2000LC.10 is a specialised media converter that addresses a common network challenge: delivering both data and power over extended distances. By combining IEEE 802.3af PoE support with gigabit copper-to-fibre conversion, it allows you to power IP phones, cameras, and wireless access points while extending network reach to 10km using singlemode optical cable.
Unlike standard media converters, the POE2000LC.10 maintains inline power delivery across the copper-to-fibre boundary, eliminating the need for separate electrical infrastructure at remote device locations. This is particularly valuable for IP surveillance, remote access points, and distributed VoIP systems where running power cables is impractical or costly.
The converter includes comprehensive PoE functions such as PD Signature Sensing, power monitoring, and current protection to ensure safe, reliable operation. Supported by Far-End-Fault monitoring and automatic link shutdown capabilities, it provides the visibility and control needed for professional deployments.
Specifications
| Brand | Alloy |
|---|---|
| Model | POE2000LC.10 |
| Product Type | PoE Gigabit Ethernet Media Converter |
| Copper Port | 10/100/1000Base-T RJ-45 with PoE PSE |
| Fibre Port | 1000Base-LX LC Singlemode |
| Wavelength | 1310nm |
| Maximum Fibre Range | 10km |
| Speed | Gigabit (10/100/1000Mbps) |
| Auto-Negotiation | Yes |
| PoE Standard | IEEE 802.3af |
| PoE Functions | PD Signature Sensing, Power Monitoring, Current Protection |
| Link Monitoring | Far-End-Fault and Forced mode LFP |
| Connector Type - Fibre | LC |
| Fibre Mode | Singlemode |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
What is the difference between this converter and a standard media converter?
The POE2000LC.10 combines media conversion with inline PoE power delivery. Standard media converters only convert between copper and fibre; this model also supplies power to remote PoE devices like IP cameras and phones, eliminating the need for separate electrical infrastructure.
What devices can I power with this converter?
The POE2000LC.10 supports IEEE 802.3af PoE, which powers devices drawing up to approximately 15W at the powered device, such as IP phones, compact IP cameras, and some wireless access points. Check your device's power requirements to confirm compatibility.
How far can the fibre cable extend?
The maximum fibre link range is 10km using singlemode optical cable with LC connectors at the 1310nm wavelength. This allows you to extend your network well beyond standard copper cable distances.
Do I need to use Alloy brand fibre cable?
Any standard singlemode fibre patch cable with LC connectors rated for 1310nm wavelength will work. Fibre cable is a passive component and is not brand-specific.
What monitoring features does it include?
The converter includes Far-End-Fault (FEF) and Forced mode Link Fault Pass-through (LFP) capabilities. These features automatically detect link faults and can trigger automatic link shutdown, enabling remote monitoring and quick troubleshooting.
Can I use this converter on both ends of a fibre run?
This model is designed as a one-way converter: copper with PoE input on the RJ-45 side, and fibre output on the LC side. For bidirectional conversion, you would require converters at both ends of the fibre link.
Is this product still available for purchase?
This model is marked as End-of-Life (EOL). Please contact Hyetech Australia to confirm current availability and discuss alternative solutions that may better suit your requirements.
