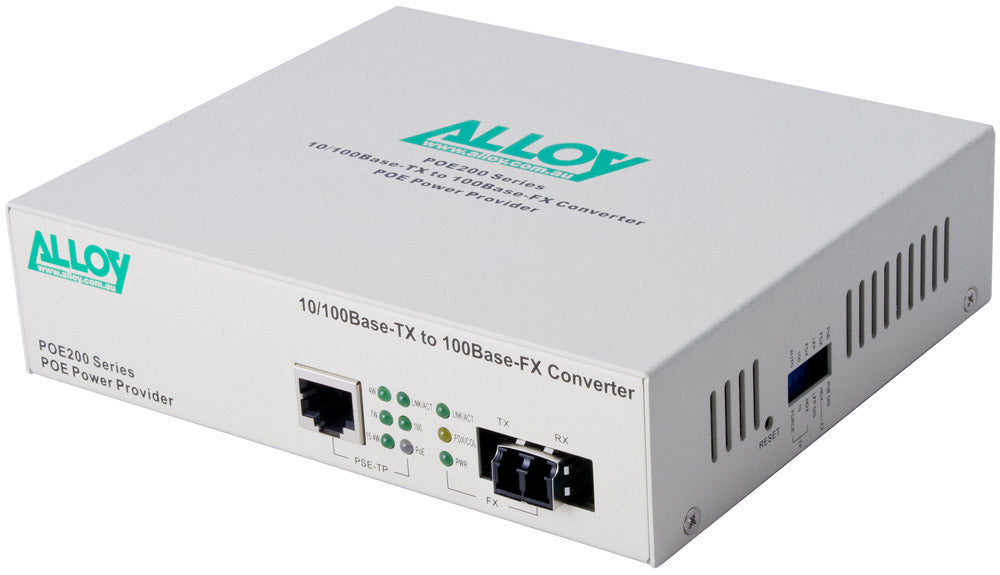

Alloy POE200LC PoE Fast Ethernet Media Converter
Alloy POE200LC PoE Fast Ethernet Media Converter
SKU:NHA-POE200LC
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | Alloy |
|---|---|
| Category | Network - Consumer |
| SKU | NHA-POE200LC |
| Availability | In Stock |
Overview
- The Alloy POE200LC is a dual-purpose PoE Fast Ethernet media converter designed to bridge copper and fibre networks while maintaining IEEE 802.3af power delivery to remote PoE devices. It converts 10/100Base-TX signals from UTP/STP copper cables to 100Base-FX multimode fibre, extending network reach up to 2km without signal degradation.
This converter is particularly valuable for organisations deploying IP phones, IP cameras, and wireless access points in locations where copper cabling distance or electromagnetic interference presents challenges. The integrated PoE PSE functionality means a single device handles both media conversion and power delivery, simplifying installation and reducing equipment count.
Built-in protection features including PD signature sensing, current limiting, and Far-End-Fault detection ensure reliable operation in demanding environments. Auto-negotiation on the copper port provides compatibility with existing 10/100Mbps infrastructure without manual configuration.
Specifications
| Brand | Alloy |
|---|---|
| Model | POE200LC |
| Product Type | PoE Fast Ethernet Media Converter |
| Copper Port | 10/100Base-TX RJ-45 |
| Fibre Port | 100Base-FX LC multimode |
| Auto-Negotiation | 10/100Mbps |
| Fibre Range | Up to 2km |
| PoE Standard | IEEE 802.3af PSE |
| Power Functions | PD signature sensing, power monitoring, current protection |
| Connector Type | LC (multimode fibre) |
| Supported Cable Types | UTP/STP copper cable |
| Link Fault Detection | Far-End-Fault and Forced mode LFP |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
Can the POE200LC power IP cameras over fibre?
The converter delivers PoE power via the RJ-45 copper port to PoE devices such as IP cameras. The fibre port carries the network signal. You would connect an IP camera to the copper port (up to 100m away via UTP/STP cable), and the converter extends the network signal over fibre to your central infrastructure.
What is the maximum cable distance on the copper side?
The RJ-45 copper port supports standard Fast Ethernet distances (up to 100m for UTP/STP cable). The POE200LC extends your network by converting to multimode fibre for up to 2km, making it ideal for bridging long distances.
Is this converter compatible with standard PoE power supplies?
Yes. The POE200LC is IEEE 802.3af PSE compliant and works with standard PoE power supplies and injectors that meet this specification.
Does the POE200LC require external power?
The product data provided does not specify external power requirements. Please contact Hyetech Australia for detailed power supply specifications.
What types of PoE devices can this converter power?
The POE200LC can power IEEE 802.3af compliant PoE devices including IP phones, IP cameras, wireless access points, and other PoE-enabled equipment within the 802.3af power budget.
Can I use singlemode fibre with this converter?
The POE200LC is specified for multimode fibre with LC connectors. The product data indicates multimode operation; singlemode compatibility has not been specified.
What warranty does the POE200LC include?
The Alloy POE200LC comes with a 36-month manufacturer warranty, providing comprehensive protection for your investment.
