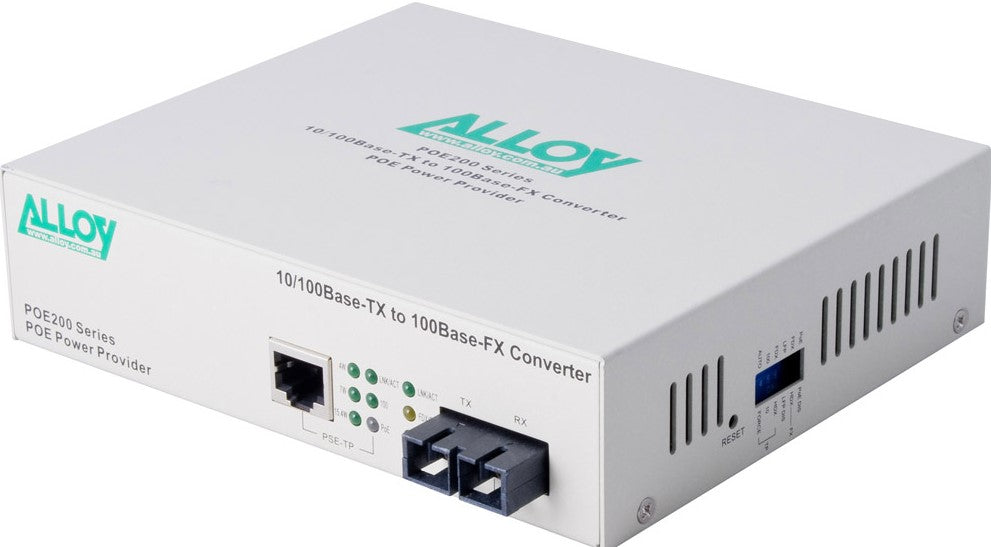

Alloy POE200SC PoE Fast Ethernet Media Converter
Alloy POE200SC PoE Fast Ethernet Media Converter
SKU:NHA-POE200SC
The Alloy POE200SC is a PoE Fast Ethernet media converter that bridges copper and fibre networks whilst powering PoE devices. Featuring IEEE 802.3af compliance, 10/100Mbps auto-negotiation, and up to 2km fibre range, it's ideal for deploying IP phones and cameras across extended network distances.
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | Alloy |
|---|---|
| Category | Network - Consumer |
| SKU | NHA-POE200SC |
| Availability | In Stock |
Overview
- The Alloy POE200SC is a dual-purpose Fast Ethernet media converter that combines copper-to-fibre conversion with IEEE 802.3af Power over Ethernet (PoE) delivery. It enables organisations to extend network reach up to 2 kilometres whilst simultaneously powering PoE Powered Devices (PD) such as IP phones and IP cameras over standard UTP or STP data cables.
This converter supports 10/100Mbps auto-negotiation on the RJ-45 copper port and connects to SC-terminated multimode fibre, making it suitable for both LAN extensions and remote device deployments. With comprehensive PoE functions including PD signature sensing, power monitoring, and current protection, the POE200SC ensures safe and reliable power delivery to connected devices.
The device includes advanced fault detection capabilities, with Far-End-Fault and Forced mode Link Fault Pass-through (LFP) supporting automatic link shutdown and easy troubleshooting. Built for professional network environments, it carries a 3-year manufacturer warranty.
Specifications
| Model | POE200SC |
|---|---|
| Product Type | PoE Fast Ethernet Media Converter |
| Copper Port | 10/100Mbps RJ-45 (PoE PSE) |
| Fibre Port | SC-terminated multimode |
| Data Rate | 10/100Mbps with auto-negotiation |
| Fibre Link Range | Up to 2 kilometres |
| PoE Standard | IEEE 802.3af compliant |
| PoE Functions | PD signature sensing, power monitoring, current protection |
| Link Fault Detection | Far-End-Fault and Forced mode LFP |
| Connector Types | RJ-45 (copper), SC (fibre) |
| Cable Support | UTP/STP data cable |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
What devices can I power with the POE200SC?
The POE200SC is IEEE 802.3af compliant and can power PoE PD (Powered Device) equipment such as IP phones, IP cameras, and other compatible PoE devices via standard UTP or STP data cable.
What is the maximum distance the POE200SC can extend a network?
The POE200SC supports fibre link ranges up to 2 kilometres for multimode SC-terminated connections, enabling network extension over much greater distances than standard Ethernet copper cable.
Does the POE200SC support both copper and fibre connections?
Yes, the POE200SC has a 10/100Mbps RJ-45 copper port and an SC-terminated multimode fibre port, allowing conversion between copper Ethernet and fibre optic infrastructure.
What does the Far-End-Fault (FEF) and Link Fault Pass-through (LFP) feature do?
These features provide link fault monitoring and detection capabilities, allowing automatic link shutdown and making it easier to identify and troubleshoot network issues.
Is the POE200SC suitable for outdoor or industrial installations?
Yes, the combination of fibre optic connectivity, PoE power delivery, and fault detection makes it well-suited for remote, outdoor, and industrial network deployments.
What is the warranty on the POE200SC?
The POE200SC includes a 3-year manufacturer warranty, providing peace of mind for professional network deployments.
