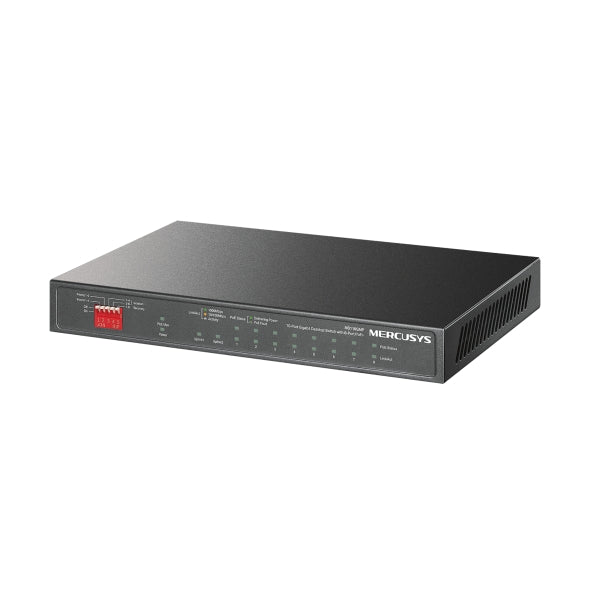

Mercusys MS110CMP 8-Port PoE+ Desktop Network Switch
Mercusys MS110CMP 8-Port PoE+ Desktop Network Switch
SKU:NWMS-MS110GMP
The Mercusys MS110CMP is a 10-port PoE+ network switch designed for small office and surveillance deployments. Featuring 8 PoE+ ports with up to 30W per port, 2 Gigabit uplink ports, and extended range up to 250m, it delivers reliable power and data delivery for IoT and IP camera systems.
Couldn't load pickup availability
- See our return policy
- 60 months (5 years) Manufacturer Warranty
Product Information
| Brand | TP-LINK |
|---|---|
| Category | Network - Consumer |
| SKU | NWMS-MS110GMP |
| Availability | In Stock |
Overview
- The Mercusys MS110CMP is a compact, fanless 10-port network switch purpose-built for PoE-powered deployments in small offices and surveillance environments. With 8 dedicated PoE+ ports capable of delivering up to 30W each, it eliminates the need for separate power infrastructure to IP cameras, wireless access points, and other networked devices.
The switch features two Gigabit uplink ports for redundancy and increased backbone capacity, with an optional Extend Mode that pushes PoE transmission distance to 250 metres—ideal for larger installations. The isolation mode allows administrators to segment traffic across specific ports, improving network stability and security when mixing connected devices.
Built with a durable metal casing and passive cooling design, the MS110CMP requires no fan maintenance and operates silently in office environments. Automatic PoE recovery functionality reboots unresponsive devices without manual intervention, reducing downtime and support overhead.
This is a plug-and-play solution suitable for businesses seeking straightforward network expansion without complex configuration.
Specifications
| Ports | 10 total: 8 × 10/100 Mbps PoE+ ports, 2 × Gigabit non-PoE uplink ports |
|---|---|
| PoE Power per Port | Up to 30W (IEEE 802.3at+) |
| Total PoE Budget | 115W |
| PoE Range Standard | 100 metres |
| PoE Range Extended Mode | Up to 250 metres |
| Data Transfer Rate | 10/100 Mbps (PoE ports), 1000 Mbps (Gigabit uplink ports) |
| Switching Fabric | 20 Gbps |
| Buffer Memory | Not specified |
| MAC Address Table | Not specified |
| Standards Compliance | IEEE 802.3af, IEEE 802.3at, IEEE 802.3af/at PoE |
| Features | Plug-and-play, isolation mode, PoE auto-recovery |
| Design | Fanless, passive cooling |
| Casing | Metal |
| Power Consumption | Not specified |
| Warranty | 60 months (5 years) |
Key Features
Ideal For
FAQs
Can the Mercusys MS110CMP power IP cameras and access points?
Yes. The switch features 8 PoE+ ports that deliver up to 30W per port, supporting standard IEEE 802.3af and 802.3at powered devices including IP cameras, wireless access points, and VoIP phones.
What is the maximum PoE transmission distance?
The standard PoE range is 100 metres. When Extend Mode is enabled, PoE transmission extends to 250 metres, allowing longer cable runs to remote devices.
What is the difference between the PoE+ ports and the Gigabit uplink ports?
The 8 PoE+ ports (10/100 Mbps) deliver both power and data to connected devices. The 2 Gigabit uplink ports provide higher-speed data connectivity (1000 Mbps) for backbone links or internet connections, but do not supply PoE power.
Does the switch require a fan or active cooling?
No. The MS110CMP features a fanless design with a metal casing that provides passive heat dissipation, making it silent and low-maintenance.
What is isolation mode and when should I use it?
Isolation mode separates traffic between specified ports, preventing cross-communication and improving network security and stability. It is useful when connecting different device types (for example, cameras and office equipment) that should not share traffic.
What happens if a PoE device becomes unresponsive?
The switch includes automatic PoE recovery, which detects unresponsive devices and automatically reboots them by cycling power, reducing manual intervention and downtime.
What warranty does Mercusys provide?
The MS110CMP includes a 5-year manufacturer warranty, providing long-term peace of mind for your network investment.
