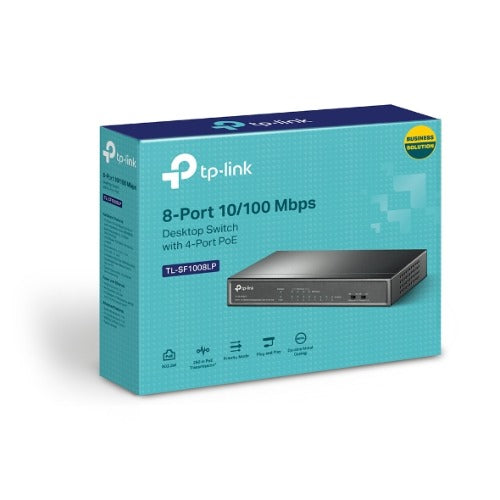

TP-Link TL-SF1008LP 8-Port PoE Desktop Switch
TP-Link TL-SF1008LP 8-Port PoE Desktop Switch
SKU:NWTL-SF1008LP
The TP-Link TL-SF1008LP is an 8-port 10/100Mbps desktop switch with 4-port PoE capability, delivering up to 41W of power. Featuring plug-and-play operation, extended transmission range, and priority mode support, it simplifies network deployment for small offices and remote installations.
Couldn't load pickup availability
- See our return policy
- 60 months Manufacturer Warranty
Product Information
| Brand | TP-LINK |
|---|---|
| Category | Network - Consumer |
| SKU | NWTL-SF1008LP |
| Availability | In Stock |
Overview
- The TP-Link TL-SF1008LP is a compact, fanless 8-port switch designed to simplify network infrastructure in small to medium environments. With 4 dedicated PoE ports supporting IEEE 802.3af standard devices, it eliminates the need for separate power supplies to IP cameras, wireless access points, and VoIP phones, reducing installation complexity and cable clutter.
The switch delivers up to 41W of PoE power distributed across all four PoE ports, with Extend Mode enabling data and power transmission up to 250m—ideal for deployments in warehouses, outdoor areas, and remote office locations. Priority Mode ensures critical applications on ports 1–2 maintain consistent performance, making it suitable for environments where network stability matters.
With automatic negotiation, MDI/MDIX detection, and zero configuration required, the TL-SF1008LP is ready to deploy immediately. Its compact desktop form factor, low power consumption, and rugged construction make it reliable for continuous 24/7 operation in various environments.
Specifications
| Ports | 8 × 10/100 Mbps RJ45 (Ports 1–4 support 802.3af PoE) |
|---|---|
| PoE Standard | IEEE 802.3af compliant |
| Total PoE Power | 41W across all PoE ports |
| Backplane Bandwidth | 1.6 Gbps |
| MAC Address Table | 2K |
| Network Media | 10BASE-T and 100BASE-TX (UTP Category 3–5 or STP, maximum 100m) |
| Auto Negotiation | Yes |
| Auto MDI/MDIX | Yes |
| Extended Range | Up to 250m in Extend Mode |
| Transmission Method | Store-and-Forward |
| Flow Control | IEEE 802.3x (Full-Duplex), Backpressure (Half-Duplex) |
| Power Supply | External adapter (53.5V DC / 0.81A) |
| Power Consumption (No PD) | 2.2W at 220V/50Hz |
| Power Consumption (With PD) | 47.1W at 220V/50Hz |
| Heat Dissipation (No PD) | 7.5 BTU/h |
| Heat Dissipation (With PD) | 160.61 BTU/h |
| Cooling | Fanless |
| Physical Security | Lock support |
| Dimensions | 171 × 98 × 27 mm (6.7 × 3.9 × 1.1 inches) |
| Operating Temperature | 0–40°C |
| Storage Temperature | -40–70°C |
| Operating Humidity | 10–90% RH (non-condensing) |
| Storage Humidity | 5–90% RH (non-condensing) |
| Certifications | FCC, CE, RoHS |
| Warranty | 60 months |
Key Features
Ideal For
FAQs
What devices can be powered by the PoE ports?
The TL-SF1008LP supports IEEE 802.3af compliant devices, including IP cameras, wireless access points, VoIP phones, and other PoE-enabled network devices consuming up to approximately 15.4W per port (with 41W total budget).
Does the switch require any configuration or drivers?
No. The TL-SF1008LP is a plug-and-play device with automatic negotiation and MDI/MDIX detection. Simply connect power and devices—no software or configuration is needed.
What is Extend Mode and when should I use it?
Extend Mode enables data and power transmission up to 250m on PoE ports, compared to the standard 100m range. Use this when installing PoE devices in distant locations, such as warehouse aisles, outdoor areas, or remote office zones.
What is Priority Mode?
Priority Mode prioritises traffic on ports 1–2 to guarantee quality of service for sensitive applications like VoIP or video conferencing, ensuring stable performance during heavy network load.
Can I use non-PoE devices on this switch?
Yes. All 8 ports function as standard 10/100 Mbps network ports. The first four ports also support PoE. Non-PoE devices work normally on any port without requiring configuration.
What is the maximum power consumption and heat output?
With no PoE devices connected, the switch draws 2.2W and dissipates 7.5 BTU/h. With 41W of PoE load, maximum consumption reaches 47.1W and heat dissipation increases to 160.61 BTU/h.
Is this switch suitable for outdoor or industrial environments?
The TL-SF1008LP operates from 0–40°C and supports 10–90% humidity (non-condensing). While suitable for indoor remote or industrial offices, it is not rated for exposed outdoor use. Consult specifications for specific environmental conditions.
