• TP-Link POE10R Omada PoE Splitter
1 1

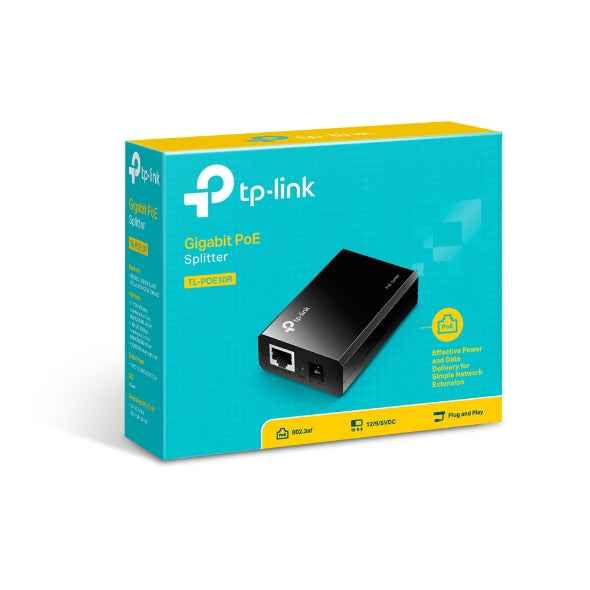

TP-Link POE10R Omada PoE Splitter

TP-Link POE10R Omada PoE Splitter

NHTL-POE10R

The TP-Link POE10R is a PoE splitter that separates power and data over Ethernet cables up to 100 metres. Featuring Gigabit RJ45 ports, multiple voltage options, and plug-and-play operation, it delivers reliable power delivery for network devices without configuration.
$22.13 AUD
$22.13 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.
No reviews yet

Product Information

BrandTP-LINK
CategoryNetwork - Consumer
SKUNHTL-POE10R
AvailabilityIn Stock
TP-Link POE10R Omada PoE Splitter
TP-Link POE10R Omada PoE Splitter$22.13
$22.13
Overview
  • The TP-Link POE10R is an IEEE 802.3af compliant PoE splitter that extends power delivery over standard Ethernet cabling to distances of 100 metres. It separates incoming PoE power from data signals, allowing you to power devices that may not support integrated PoE or require specific voltage levels.

    The splitter supports three selectable output voltages—12V, 9V, and 5V DC—making it compatible with a wide range of network devices including IP cameras, wireless access points, access control systems, and IoT equipment. Its Gigabit RJ45 ports maintain full network speed while reliably delivering power without additional infrastructure.

    Designed for simplicity, the POE10R requires no configuration and operates immediately upon connection. It is ideal for extending PoE coverage in existing network installations or retrofitting non-PoE devices into PoE-enabled environments.
Specifications
BrandTP-Link
ModelPOE10R
Product TypePoE Splitter
Standards ComplianceIEEE 802.3af
Network Ports2x Gigabit RJ45 (10/100/1000Mbps)
Port FeaturesAuto-negotiation, Auto MDI/MDIX
Power Output Ports1x Power Output
Output Voltage Options12V DC 1A, 9V DC 1A, 5V DC 2A
Maximum Cable Distance100 metres
Supported Cable TypesUTP Category 3/4/5, Category 5e, Category 6, EIA/TIA-568 100Ω STP
IndicatorPower LED
Dimensions80.8 x 54 x 24 mm (3.2 x 2.1 x 0.9 inches)
Warranty36 months
Key Features
IEEE 802.3af compliant for standard PoE compatibility
Delivers power and data up to 100 metres over Ethernet
Gigabit speed support (10/100/1000Mbps)
Selectable output voltage: 12V, 9V, or 5V DC
Plug-and-play operation with no configuration required
Two Gigabit RJ45 ports with auto-negotiation and MDI/MDIX
Compact design with power indicator LED
Ideal For
Deploying PoE-powered devices beyond standard PoE switch range
Remote network installations requiring extended cable runs
IP cameras, wireless access points, and IoT devices requiring specific voltage
Network installations where PoE infrastructure needs supplementing
Business locations with legacy or distributed network architecture
FAQs
What is the maximum distance the POE10R can deliver power?

The POE10R can deliver power and maintain data connectivity up to 100 metres using standard Ethernet cabling compliant with EIA/TIA-568 standards.

What voltage options does the POE10R support?

The POE10R offers three selectable output voltages: 12V DC at 1A, 9V DC at 1A, and 5V DC at 2A, allowing compatibility with various powered devices.

Is the POE10R compatible with standard PoE switches?

Yes, the POE10R is IEEE 802.3af compliant and compatible with any IEEE 802.3af compliant Power Sourcing Equipment (PSE) such as standard PoE switches.

Does the POE10R require any configuration or drivers?

No, the POE10R is plug-and-play and requires no configuration, drivers, or software installation. It operates immediately upon connection.

What types of devices can the POE10R power?

The POE10R can power a range of devices including IP cameras, wireless access points, VoIP phones, access control systems, and other network devices compatible with 802.3af PoE and the selected output voltage.

Can the POE10R support Gigabit network speeds?

Yes, the POE10R features two Gigabit RJ45 ports that support 10/100/1000Mbps speeds while simultaneously delivering power.
