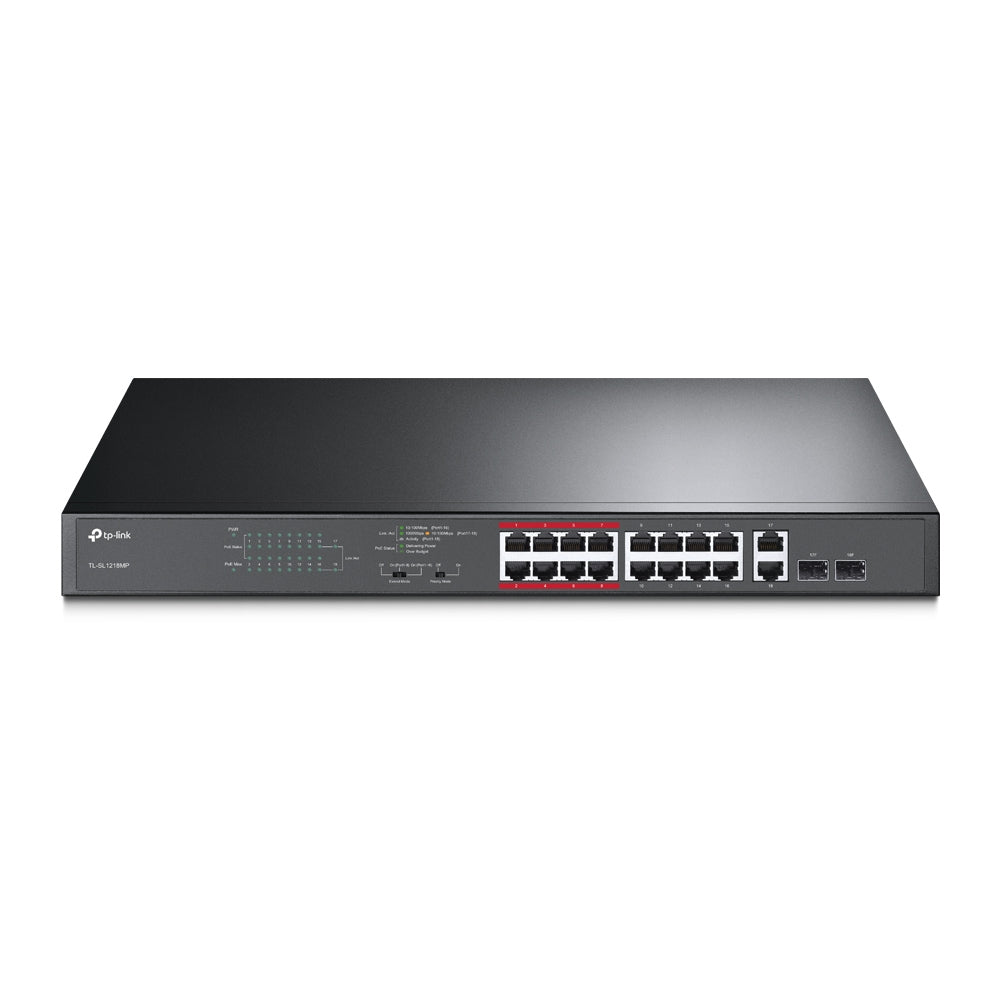

TP-Link TL-SL1218MP 16-Port PoE+ Network Switch
TP-Link TL-SL1218MP 16-Port PoE+ Network Switch
SKU:NWTL-SL1218MP
The TP-Link TL-SL1218MP is a 16-port PoE+ network switch designed for surveillance and networked device deployment. Featuring 192W total PoE power budget, extended range transmission up to 250m, and gigabit uplink ports, it delivers reliable power and connectivity for business IP camera systems and IoT applications.
Couldn't load pickup availability
- See our return policy
- 60 months Manufacturer Warranty
Product Information
| Brand | TP-LINK |
|---|---|
| Category | Network - Consumer |
| SKU | NWTL-SL1218MP |
| Availability | Out of Stock |
Overview
- The TP-Link TL-SL1218MP is an unmanaged PoE+ switch purpose-built for surveillance and IoT applications. With 16 PoE+ ports delivering up to 30W each and 192W total power budget, it provides flexible power distribution to IP cameras, wireless access points, and other networked devices. The switch supports extended transmission mode, enabling data and power delivery up to 250m—ideal for large-scale deployments where standard cabling limits are insufficient.
Designed for simplicity and reliability, the TL-SL1218MP requires no configuration and features automatic MAC address learning. Port priority mode ensures video streaming and other critical applications maintain consistent quality, while the 7.2 Gbps switching fabric handles typical surveillance network traffic efficiently. Two gigabit uplink ports and combo SFP slots provide flexible connection options for core network integration.
The switch is housed in a compact 1U rackmount chassis with dual cooling fans for passive operation in equipment racks. Built to commercial standards with IEEE 802.3at/af compliance, it integrates seamlessly into existing PoE ecosystems. Backed by a 5-year Australian warranty, it delivers enterprise-grade reliability for medium to large surveillance and IoT projects.
Specifications
| PoE+ Ports | 16 × 10/100Mbps RJ45 (802.3at/af compliant) |
|---|---|
| Gigabit Ports | 2 × 10/100/1000Mbps RJ45 |
| SFP Slots | 2 × Combo Gigabit SFP |
| PoE Power Budget | 192W total (up to 30W per port) |
| PoE Transmission Range | Up to 250m in extended mode |
| Switching Fabric | 7.2 Gbps |
| MAC Address Table | 8,000 entries |
| Transmission Method | Store-and-forward |
| Network Standards | 10BASE-T, 100BASE-TX, 1000BASE-T, 1000BASE-X (MMF/SMF) |
| Cable Support | UTP Cat 3/4/5, Cat 5e, Cat 6 (100m standard) |
| Flow Control | IEEE 802.3x |
| Port Priority | Ports 1-8 priority mode support |
| Physical Security | Yes (security lock) |
| Cooling | 2 × cooling fans |
| Power Input | 100-240V AC, 50/60 Hz |
| Power Consumption (No Load) | 18.7W |
| Power Consumption (Full Load) | 217.2W (with 192W PoE connected) |
| Heat Dissipation (No Load) | 63.9 BTU/h |
| Heat Dissipation (Full Load) | 741.2 BTU/h |
| Dimensions | 440 × 180 × 44 mm (17.3 × 7.1 × 1.7 in.) |
| Form Factor | 1U rackmount |
| Warranty | 60 months |
Key Features
Ideal For
FAQs
What is the maximum PoE power output per port?
Each PoE+ port supports up to 30W output, compliant with IEEE 802.3at/af standards. This is sufficient for most IP cameras, wireless access points, and powered network devices.
Can this switch extend PoE power beyond the standard 100m cable limit?
Yes. The TL-SL1218MP features extended transmission mode, which allows both data and power delivery up to 250m—ideal for large facilities and remote installations where standard cabling limits are insufficient.
Is this switch managed or unmanaged?
This is an unmanaged switch. It requires no configuration and automatically learns MAC addresses, making it simple to deploy and operate.
What are the uplink options for core network connection?
The switch provides 2 × Gigabit RJ45 uplink ports and 2 × Combo Gigabit SFP slots, offering flexible options for connecting to your core network infrastructure.
How does port priority mode work?
Ports 1-8 support priority mode to guarantee quality of service for sensitive applications like video streaming. This ensures critical traffic is processed first.
What is the total switching capacity?
The switch has a 7.2 Gbps switching fabric with store-and-forward processing, providing reliable performance for typical surveillance and IoT network workloads.
Is this switch suitable for rackmount installation?
Yes. The TL-SL1218MP is designed as a compact 1U rackmount unit with dual cooling fans, making it ideal for data centre and equipment rack environments.
