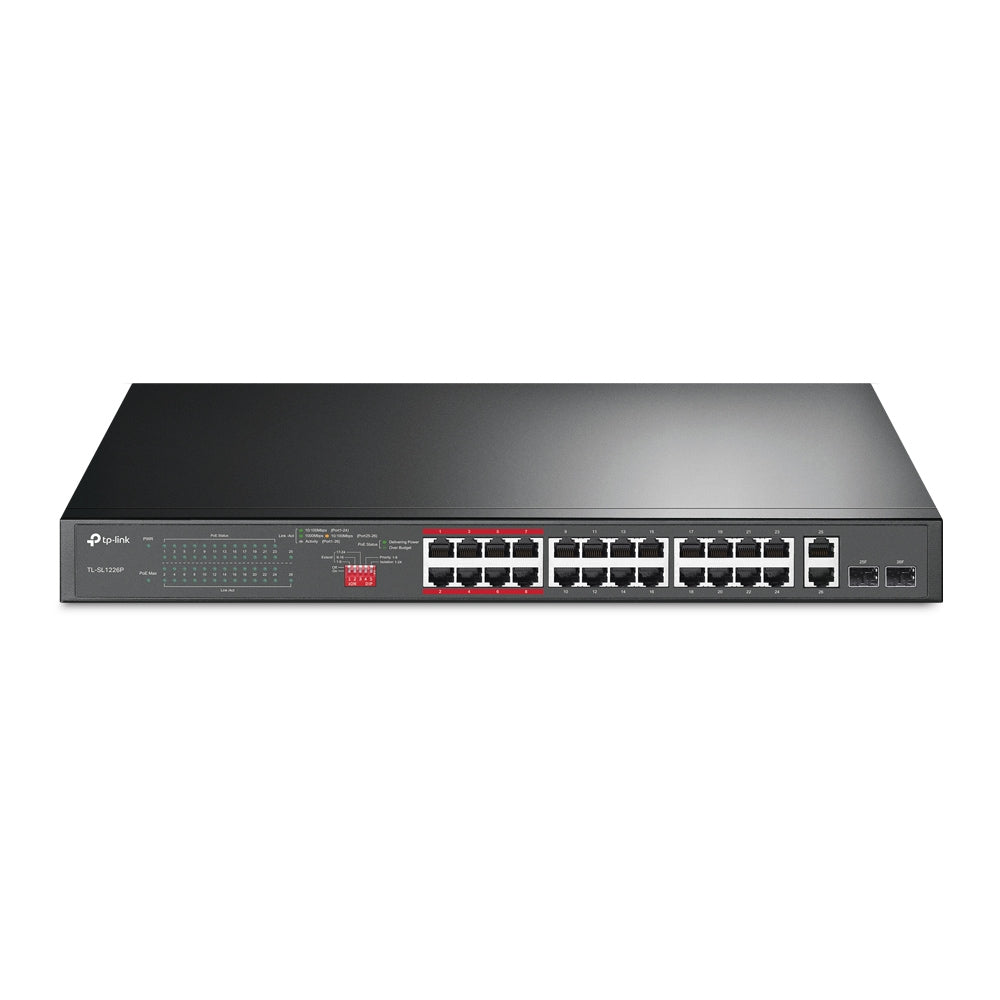

TP-Link TL-SL1226P 24-Port PoE+ Network Switch
TP-Link TL-SL1226P 24-Port PoE+ Network Switch
SKU:NWTL-SL1226P
The TP-Link TL-SL1226P is a 24-port PoE+ unmanaged switch designed for IP surveillance and networked device deployments. Featuring 250W total PoE power budget, up to 250m extended transmission range, and intelligent traffic prioritisation, it delivers reliable power and connectivity for growing networks.
Couldn't load pickup availability
- See our return policy
- 60 months Manufacturer Warranty
Product Information
| Brand | TP-LINK |
|---|---|
| Category | Network - Consumer |
| SKU | NWTL-SL1226P |
| Availability | In Stock |
Overview
- The TP-Link TL-SL1226P is an unmanaged PoE+ switch purpose-built for businesses deploying networked devices across distributed locations. With 24 PoE+ ports delivering up to 30W each and a combined 250W budget, it provides the power capacity for multiple IP cameras, wireless access points, and IoT devices simultaneously.
Key to this switch's value is its Extend Mode, which pushes PoE transmission distances to 250 metres—significantly beyond standard 100m limits. This makes it ideal for surveillance systems covering larger premises, warehouses, or outdoor perimeters without requiring additional power infrastructure. Priority Mode automatically prioritises critical ports (1–8), ensuring video monitoring and sensitive applications maintain service quality even under heavy network load.
Security-conscious networks benefit from Isolation Mode, which segments client traffic with a single click, preventing unauthorised access between network segments. The switch's 8.8 Gbps switching fabric and dual Gigabit uplink ports (RJ45 and SFP) handle aggregated traffic without bottlenecks. Being unmanaged, it requires no configuration—simply connect and operate, making it suitable for businesses without dedicated IT staff.
Specifications
| Ports | 24× 10/100 Mbps PoE+ RJ45 ports, 2× 10/100/1000 Mbps Gigabit RJ45 ports, 2× Combo Gigabit SFP slots |
|---|---|
| PoE Specification | 802.3at/af compliant, 30W maximum per port, 250W total budget |
| Switching Fabric | 8.8 Gbps |
| MAC Address Table | 8,000 entries |
| Network Standards | 10BASE-T, 100BASE-TX, 1000BASE-T, 1000BASE-X (MMF/SMF) |
| Cable Support | UTP Cat 3/4/5/5e/6+, STP 100Ω (maximum 100m standard, 250m in Extend Mode) |
| Power Input | 100–240 VAC, 50/60 Hz |
| Power Consumption | 18.32W (no PoE devices), 294W (250W PoE devices connected) |
| Heat Dissipation | 62.47 BTU/h (no PoE devices), 1002.54 BTU/h (full load) |
| Advanced Features | Extend Mode (250m transmission), Priority Mode (ports 1–8), Isolation Mode, PD Detection, Intelligent Power Supply, MAC auto-learning and auto-aging, IEEE 802.3x Flow Control |
| Physical Security | Yes (security lock) |
| Cooling | 2× internal fans |
| Dimensions | 440 × 180 × 44 mm (17.3 × 7.1 × 1.7 inches) |
| Warranty | 60 months |
Key Features
Ideal For
FAQs
What is the difference between this PoE+ switch and a standard switch?
This PoE+ switch delivers power and network connectivity through the same Ethernet cable, eliminating the need for separate power outlets. The 250W budget supports up to 24 devices (at 30W each or combinations thereof), making it ideal for IP cameras, wireless access points, and other PoE-compatible devices.
How far can PoE power travel through the cable?
Standard PoE transmission is limited to 100 metres. However, the TL-SL1226P's Extend Mode pushes this to 250 metres, allowing surveillance cameras and devices to be installed much further from the switch without requiring additional power infrastructure.
What is Priority Mode and why would I use it?
Priority Mode automatically prioritises ports 1–8, ensuring critical applications like video monitoring receive guaranteed bandwidth and performance even when the network is under heavy load. This prevents disruption to surveillance feeds or other sensitive services.
Can I use this switch for a surveillance system?
Yes. The TL-SL1226P is purpose-designed for IP surveillance deployments. Its 250W PoE budget, extended transmission range, and Priority Mode make it well-suited for powering and connecting multiple IP cameras across a site.
Is configuration or setup required?
No. The TL-SL1226P is an unmanaged switch—it operates immediately upon connection with no configuration, settings, or software required. This makes it ideal for businesses without dedicated IT expertise.
What is Isolation Mode?
Isolation Mode segments traffic between connected clients with a single click, preventing devices on one port from communicating with devices on other ports. This improves security and performance by reducing unnecessary broadcast traffic.
Can I use the SFP ports for fibre connections?
Yes. The two Combo Gigabit SFP slots support both SFP modules (for single-mode or multi-mode fibre) and standard RJ45 Gigabit connections, providing flexibility for uplink and long-distance connectivity.
What's the warranty coverage?
The TL-SL1226P comes with a 60-month (5-year) manufacturer's warranty.
