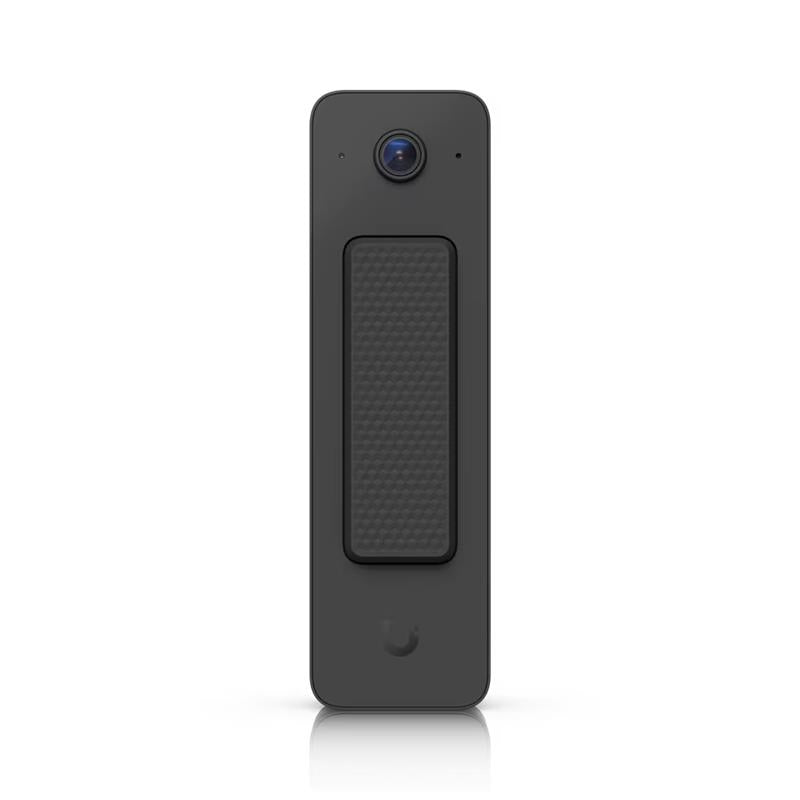

Ubiquiti UVC-Doorbell-Lite-B 5MP PoE Video Doorbell
Ubiquiti UVC-Doorbell-Lite-B 5MP PoE Video Doorbell
SKU:NHU-UVC-DOORBELL-LITE-B
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | Ubiquiti |
|---|---|
| Category | Network - UniFi |
| SKU | NHU-UVC-DOORBELL-LITE-B |
| Availability | In Stock |
Overview
- The Ubiquiti UVC-Doorbell-Lite-B is a compact PoE-powered video doorbell that combines high-resolution video capture with two-way audio communication. Designed for seamless integration into UniFi networks, it provides organisations with a reliable and cost-effective solution for monitoring entry points and managing visitor access.
Powered entirely via PoE, the doorbell eliminates the need for additional power infrastructure, simplifying installation and reducing deployment costs. The IPX5 weatherproofing ensures reliable operation in outdoor environments, whilst the 5MP sensor delivers clear footage for identification and security purposes.
Its versatile mounting options and compact form factor make it suitable for a range of applications, from corporate offices to multi-unit residential buildings. The two-way audio capability enables real-time communication with visitors, enhancing both security and operational efficiency.
Specifications
| Brand | Ubiquiti |
|---|---|
| Model | UVC-Doorbell-Lite-B |
| Product Type | PoE Video Doorbell |
| Colour | Black |
| Resolution | 5MP |
| Field of View (Horizontal) | 95.8° |
| Field of View (Vertical) | 131.2° |
| Field of View (Diagonal) | 175.9° |
| Audio | Two-way audio |
| Weatherproofing Rating | IPX5 |
| Networking Interface | 10/100 Mbps Ethernet |
| Power Method | PoE (Power over Ethernet) |
| Supported Voltage Range | 37–57V DC |
| Maximum Power Consumption | 8W |
| Warranty | 12 months |
Key Features
Ideal For
FAQs
Does the Ubiquiti UVC-Doorbell-Lite-B require a separate power supply?
No. The doorbell is powered entirely via PoE (Power over Ethernet), eliminating the need for additional power wiring. It draws a maximum of 8W and operates within a voltage range of 37–57V DC.
What is the video resolution and field of view?
The doorbell features 5MP resolution with a horizontal field of view of 95.8°, vertical field of view of 131.2°, and diagonal field of view of 175.9°, providing wide coverage of entry areas.
Can it be used outdoors?
Yes. The UVC-Doorbell-Lite-B has an IPX5 weatherproofing rating, making it suitable for outdoor installation in most weather conditions.
Does it support two-way communication?
Yes. The doorbell includes two-way audio, allowing real-time communication with visitors from a remote device or monitoring station.
Is it compatible with UniFi systems?
Yes. As a Ubiquiti product, the UVC-Doorbell-Lite-B is designed for seamless integration with UniFi networks and security ecosystems.
What are the mounting options?
The doorbell offers versatile mounting options suitable for a range of installation scenarios. Refer to the installation guide for specific mounting instructions.
What warranty is included?
The UVC-Doorbell-Lite-B comes with a 12-month manufacturer's warranty covering defects in materials and workmanship.
